Victor Taichung Vcenter-F106

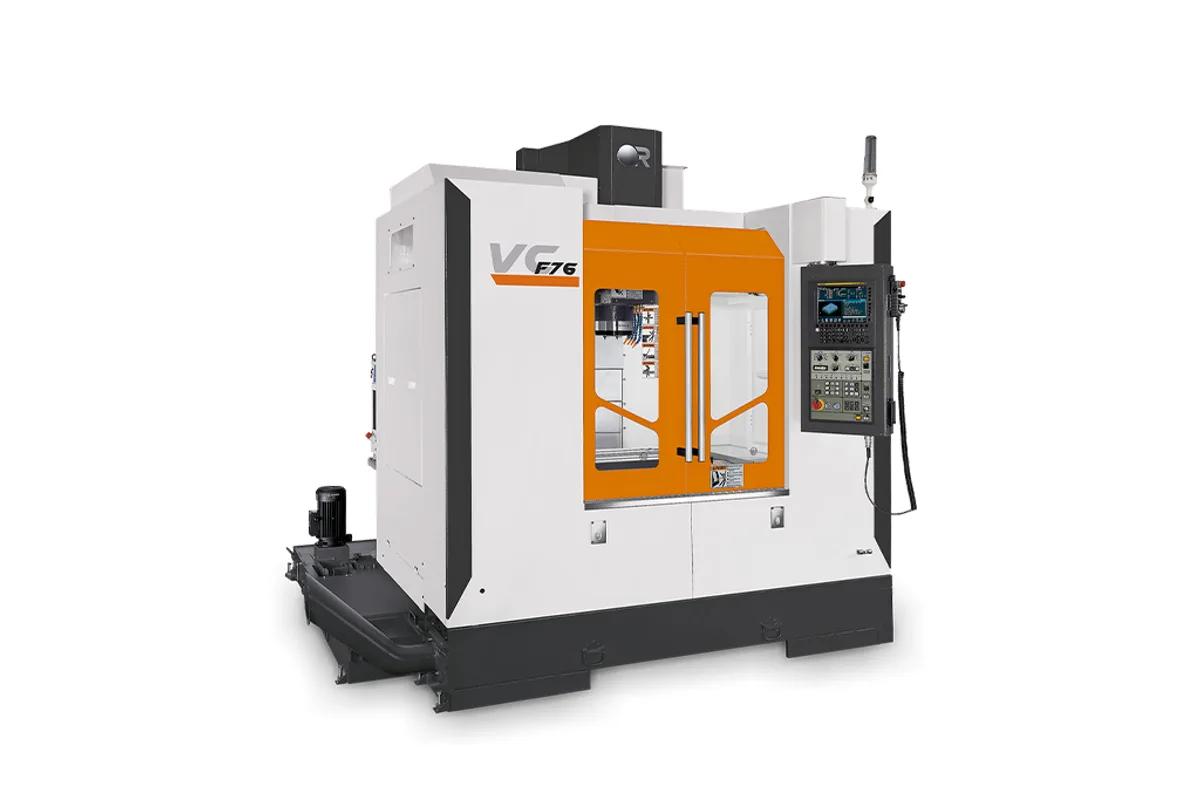

Image: machine-tools.victortaichung.com, Victor Taichung
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Victor Taichung Vcenter-F106 cost?
Price estimate
We do not have a price for the Victor Taichung Vcenter-F106 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
A metre of X travel on the maker's basic platform: the Victor Taichung Vcenter-F106 has travels of 1,060 mm (41.73 in), 600 mm (23.62 in) and 560 mm (22.04 in), a 1,120 x 520 mm (44.09 x 20.47 in) table and a BT-40 spindle that runs to 8,000 rpm.
One proportion deserves attention. Y travel is 600 mm (23.62 in) but the table is 520 mm deep, so the axis travels further than the table is wide. In practice that gives the spindle room to run off both edges, which helps when facing a plate that overhangs or when probing a fixture edge. Table load is 600 kg (1,322.77 lb).
The spindle motor is rated 11 / 15 kW (15 / 20 HP), and the maker describes it as an 8000 rpm spindle with 15 kW output at the S3 rating. That is a workable cutting package for plates, brackets and mould bases in steel, though the low top speed slows small-tool finishing. Twenty-four tools are standard and a 30 tool magazine is optional.
Roller guideways, Ø40 mm ballscrews and rapid feeds of 32/32/32 m/min come from the same parts bin as the maker's higher series. At 6,250 kg (13,778.87 lb) the machine is close in weight to the Vcenter-P106, which has the same travels and is listed at 6,450 kg (14,219.79 lb).
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,060 mm (41.73 in) |
| Y Axis Travel | 600 mm (23.62 in) |
| Z Axis Travel | 560 mm (22.04 in) |
| Table Size | 1,120 x 520 mm (44.09 x 20.47 in) |
| T-Slots | 5 x 18 x 100 mm |
| Max Table Load | 600 kg (1,322.77 lb) |
| Spindle Taper | BT-40 |
| Spindle Motor Power | 11 / 15 kW (15 / 20 HP) |
| Max Spindle Speed | 8,000 rpm |
| Tool Capacity | 24 |
| Max Tool Weight | 7 kg (15.43 lb) |
| Positioning Accuracy | 0.010 mm |
| Repeatability | 0.007 mm (±0.0035 mm) |
| Machine Weight | 6,250 kg (13,778.87 lb) |
Specifications sourced from machine-tools.victortaichung.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 1,060 mm (41.73 in) of X travel with a 600 mm (23.62 in) Y axis
- Y travel exceeds the 520 mm table depth, so the spindle clears both edges
- Rapid feeds of 32/32/32 m/min on roller guideways
- Optional 30 tool magazine and 10000 rpm spindle
- Listed accuracy of 0.010 mm to ISO 230-2
Limitations
- Standard spindle speed is 8,000 rpm
- Table load of 600 kg (1,322.77 lb) is modest for the table length
- Coolant through spindle and the spindle oil cooler are options
- Maximum tool weight is 7 kg (15.43 lb)
Best For
Frequently Asked Questions
01
1,120 x 520 mm (44.09 x 20.47 in), with 5 x 18 x 100 mm T-slots and a maximum load of 600 kg (1,322.77 lb). Axis travels are 1,060 mm (41.73 in), 600 mm (23.62 in) and 560 mm (22.04 in).
02
Both have the same travels, table and 600 kg (1,322.77 lb) load. The Vcenter-F106 has a BT-40 spindle at 8,000 rpm and 24 tools. The Vcenter-P106 has a BBT-40 spindle at 12,000 rpm and 30 tools.
03
The motor row lists 11 / 15 kW (15 / 20 HP). Victor Taichung's series notes describe an 8000 rpm spindle with 15 kW output at the S3 rating.
04
A 4th/5th axis interface and rotary tables are both on the F series option list. The standard machine is a three-axis vertical machining center with a Fanuc 0i-MF Plus control.
