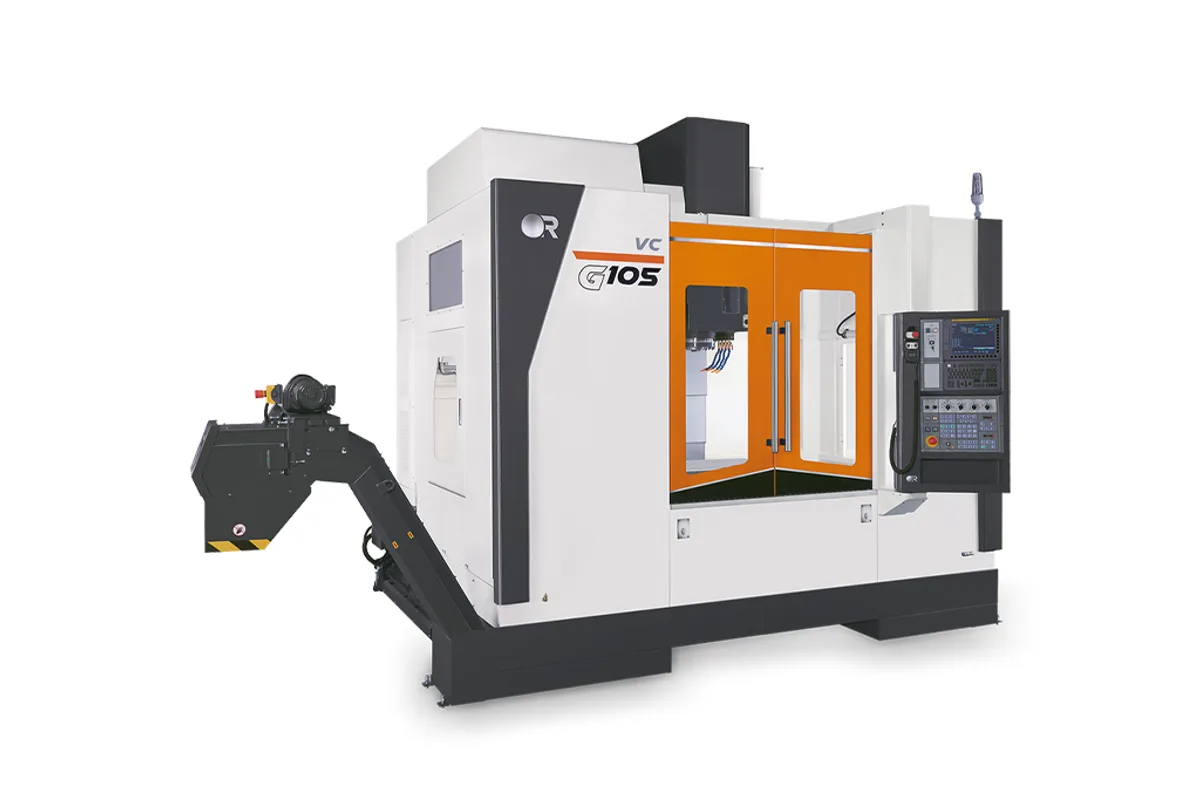

Victor Taichung Vcenter-G105
Image: machine-tools.victortaichung.com, Victor Taichung
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Victor Taichung Vcenter-G105 cost?
Price estimate
We do not have a price for the Victor Taichung Vcenter-G105 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Victor Taichung Vcenter-G105 is a 50-taper box-way vertical machining center for heavy cutting. It has a gearhead BBT-50 spindle at 6,000 rpm with 15 / 18 kW (20 / 25 HP), box slideways on all axes, and travels of 1,050 mm (41.33 in), 600 mm (23.62 in) and 600 mm (23.62 in).
Every choice in it favours stiffness over speed. A gear-driven spindle multiplies torque at low rpm for face mills and large drills. Box slideways damp the cut better than linear guides. The ballscrews are Ø50mm. The machine weighs 10,000 kg (22,046.19 lb), a good deal for a metre of X travel.
The table is 1,100 x 600 mm (43.3 x 23.62 in), matched to the Y travel, and carries 1,200 kg (2,645.54 lb). Twenty-four tools are standard, each up to 15 kg (33.06 lb), and a 32 or 40 tool magazine is optional.
It is the smallest of three G models and the natural pick for steel and cast-iron parts that fit on a metre table: die blocks, pump bodies, machine components. At 6,000 rpm it is the wrong tool for small cutters in aluminium. Accuracy is listed at 0.010 mm and repeatability at 0.007 mm (±0.0035 mm).
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,050 mm (41.33 in) |
| Y Axis Travel | 600 mm (23.62 in) |
| Z Axis Travel | 600 mm (23.62 in) |
| Table Size | 1,100 x 600 mm (43.3 x 23.62 in) |
| T-Slots | 7 x 18 x 100 mm |
| Max Table Load | 1,200 kg (2,645.54 lb) |
| Spindle Taper | BBT-50 |
| Spindle Motor Power | 15 / 18 kW (20 / 25 HP) |
| Max Spindle Speed | 6,000 rpm |
| Tool Capacity | 24 |
| Max Tool Weight | 15 kg (33.06 lb) |
| Positioning Accuracy | 0.010 mm |
| Repeatability | 0.007 mm (±0.0035 mm) |
| Machine Weight | 10,000 kg (22,046.19 lb) |
Specifications sourced from machine-tools.victortaichung.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Gearhead BBT-50 spindle with 15 / 18 kW (20 / 25 HP)
- Box slideways on all axes and Ø50mm ballscrews
- 1,200 kg (2,645.54 lb) table load on a 1,100 x 600 mm (43.3 x 23.62 in) table
- Tools up to 15 kg (33.06 lb)
- Spindle oil cooler and screw chip removers are standard
Limitations
- Spindle speed is limited to 6,000 rpm
- 24 tools as standard; larger magazines are options
- 10,000 kg (22,046.19 lb) for a metre-class machine
- Box ways mean slower traverse than the maker's linear-guide series
Best For
Frequently Asked Questions
01
A gearhead BBT-50 spindle with a maximum speed of 6,000 rpm and a motor rated 15 / 18 kW (20 / 25 HP). Tools can weigh up to 15 kg (33.06 lb).
02
Travels are 1,050 mm (41.33 in), 600 mm (23.62 in) and 600 mm (23.62 in). The table is 1,100 x 600 mm (43.3 x 23.62 in) and the maximum part weight is 1,200 kg (2,645.54 lb).
03
Box slideways on all axes, according to Victor Taichung, driven by Ø50mm ballscrews. The series is the maker's box-way line for heavy cutting.
04
The G series option list includes coolant through the spindle, a 32 or 40 tool magazine, a 4th/5th axis interface, linear scales, a table shower, a chip conveyor with cart and a Fanuc 0i-MF Plus control with a 15 in screen.
