HNK HPF-15H (15x40)
Key Specifications
Max Spindle
Spindle Taper
Table Size
Spindle Power
distance between columns
distance spindle nose to table
How much does the HNK HPF-15H (15x40) cost?
Price estimate
We do not have a price for the HNK HPF-15H (15x40) that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
HNK names LCD chambers first among the uses of the HPF-H series, and the HNK HPF-15H (15x40) shows why the format suits them. Its table is 1,500 x 4,000 mm (59.1 x 157.5 in), its crossrail is fixed, and the spindle turns at 6,000 rpm.
The vacuum chambers used in flat-panel display production are built from large aluminium plates and frames: wide, long, and not very tall. They need long sealing faces milled flat, many tapped holes, and pockets and ports cut at speed. None of that calls for a moving crossrail. It calls for a rigid portal at a fixed height and a quick spindle, which is exactly what this table describes.
X travel is 4,250 mm (167.3 in) and Y 3,200 mm (126.0 in). The spindle end can stand at most 1,000 mm (39.4 in) above the table, and the ram strokes 800 mm (31.5 in). Table load is 10,000 kg (22,046 lb), ample for aluminium at this size.
Spindle and drive are a Ø100 mm (3.9 in), ISO No.50 unit with 22/25 kW (29.5/33.5 hp), cont/30min. The columns are 2,200 mm (86.6 in) apart.
Full Specifications
| Parameter | Value |
|---|---|
| Distance Between Columns | 2,200 mm (86.6 in) |
| Distance Spindle Nose to Table | 1,000 mm (39.4 in) |
| X Axis Travel | 4,250 mm (167.3 in) |
| Y Axis Travel | 3,200 mm (126.0 in) |
| Z Axis Travel | 800 mm (31.5 in) |
| Table Size | 1,500 x 4,000 mm (59.1 x 157.5 in) |
| Max Table Load | 10,000 kg (22,046 lb) |
| Spindle Taper | ISO No.50 |
| Spindle Diameter | Ø100 mm (3.9 in) |
| Ram Size | 380 x 380 mm (15.0 x 15.0 in) |
| Max Spindle Speed | 6,000 rpm |
| Spindle Motor Power | 22/25 kW (29.5/33.5 hp) (cont/30min) |
| CNC Control | Fanuc 31i-B, Siemens 840D |
Specifications sourced from en.hnkkorea.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 4,250 mm (167.3 in) of X travel on a fixed-crossrail portal
- 6,000 rpm spindle for aluminium plate
- 1,500 x 4,000 mm (59.1 x 157.5 in) table
- 380 x 380 mm (15.0 x 15.0 in) ram with 800 mm (31.5 in) of travel
Limitations
- Daylight capped at 1,000 mm (39.4 in)
- Width limited by 2,200 mm (86.6 in) between columns
- Feed rates, important for plate work, are not published
Best For
Frequently Asked Questions
01
HNK calls the HPF-H the optimum machining center for LCD chamber and die and mold work. Chamber parts are large and flat, so a fixed crossrail with 1,000 mm (39.4 in) of daylight is enough, and the 6,000 rpm spindle suits aluminium.
02
X is 4,250 mm (167.3 in), Y is 3,200 mm (126.0 in) and Z, on the ram, is 800 mm (31.5 in). There is no W-axis because the crossrail is fixed.
03
The HPF-20H (20x40) has the same 4,250 mm X travel on a 2,000 x 4,000 mm (78.7 x 157.5 in) table, with 2,700 mm (106.3 in) between columns and 15,000 kg (33,069 lb) of load.
04
A 22/25 kW (29.5/33.5 hp) motor, given as continuous and 30-min ratings. The spindle is Ø100 mm (3.9 in) with an ISO No.50 taper.
More from HNK
Other Vertical Machining Centers (VMC)
Johnford VMC-1300
Kitamura Jigcenter-5G

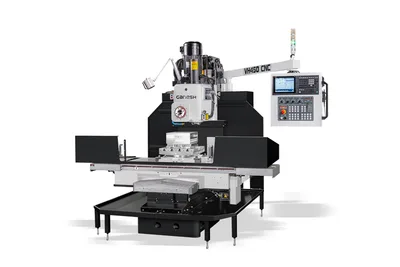

Ganesh VH-450 CNC

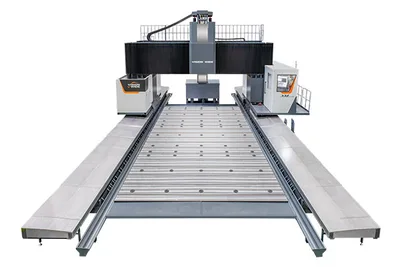

Vision Wide XM-32

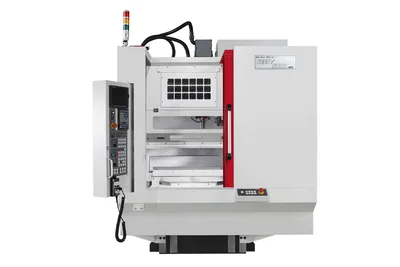

Akira Seiki RMV500APC
