Victor Taichung Vcenter-24W
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Accuracy
Repeatability
x axis travel
How much does the Victor Taichung Vcenter-24W cost?
Price estimate
We do not have a price for the Victor Taichung Vcenter-24W that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Victor Taichung Vcenter-24W is the larger of the maker's two vertical machining centers for alloy wheels, listed for wheels up to 24 x 12.5J in. It has 1,060 mm (41.73 in) of X travel and 700 mm (27.55 in) in both Y and Z, with a 12,000 rpm BBT-40 spindle and a 24-tool magazine.
Compared with the Vcenter-22W, the figures move up across the board. The spindle is half as fast again and uses the dual-contact BBT-40 taper where the smaller machine has BT-40. The magazine holds 24 tools against 16. Travels grow in every axis, and the weight is 8,375 kg (18,463.69 lb) against 7,450 kg for the Vcenter-22W.
For wheel work, the extra speed is the useful part. Bolt holes, valve holes and the small chamfers around them are cut with small tools in aluminium, where 12,000 rpm shortens each hole. A Z travel of 700 mm (27.55 in) leaves room for a wide rim standing on a rotary fixture with the tool clear above it.
Accuracy is listed at 0.010 mm and repeatability at 0.007 mm (±0.0035 mm) under ISO 230-2. Tools may weigh up to 7 kg (15.43 lb). The maker's table gives no table size, table load or spindle power for this model, and the series page lists no accessories for it by name, so the fixture, rotary table and coolant equipment should be settled in the quotation.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,060 mm (41.73 in) |
| Y Axis Travel | 700 mm (27.55 in) |
| Z Axis Travel | 700 mm (27.55 in) |
| Max Wheel Size | 24 x 12.5J in |
| Spindle Taper | BBT-40 |
| Max Spindle Speed | 12,000 rpm |
| Tool Capacity | 24 |
| Max Tool Weight | 7 kg (15.43 lb) |
| Positioning Accuracy | 0.010 mm |
| Repeatability | 0.007 mm (±0.0035 mm) |
| Machine Weight | 8,375 kg (18,463.69 lb) |
Specifications sourced from machine-tools.victortaichung.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 12,000 rpm BBT-40 spindle for small tools in aluminium
- Wheels up to 24 x 12.5J in
- 700 mm (27.55 in) of travel in both Y and Z
- 24-tool magazine, against 16 on the Vcenter-22W
- Listed accuracy of 0.010 mm to ISO 230-2
Limitations
- No table size, load or spindle power is published for the model
- Standard and optional equipment are not listed by name on the maker's series page
- Tools are limited to 7 kg (15.43 lb)
Best For
Frequently Asked Questions
01
Up to 24 x 12.5J in, according to the maker's table. The smaller Vcenter-22W is listed for 22 x 11.5J in. Both are vertical machining centers for alloy wheels.
02
1,060 mm (41.73 in) in X, 700 mm (27.55 in) in Y and 700 mm (27.55 in) in Z. The machine weighs 8,375 kg (18,463.69 lb).
03
A BBT-40 spindle with a maximum speed of 12,000 rpm, served by a 24-tool magazine with a 7 kg (15.43 lb) limit per tool. The table does not state the motor power.
04
Victor Taichung lists an accuracy of 0.010 mm and a repeatability of 0.007 mm (±0.0035 mm) under the heading ISO 230-2. Those are the same figures it prints for its general vertical machining centers.
More from Victor Taichung
Other Vertical Machining Centers (VMC)
Röders RHP500
HNK HPF-15H (15x30)
Hurco VMX 7535
Johnford VMC-1300-2H

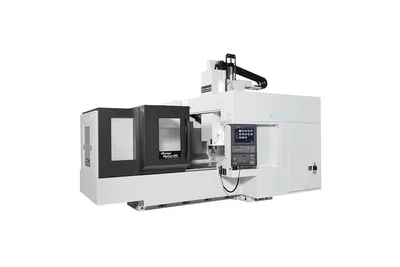

Kitamura Bridgecenter-8G #50
