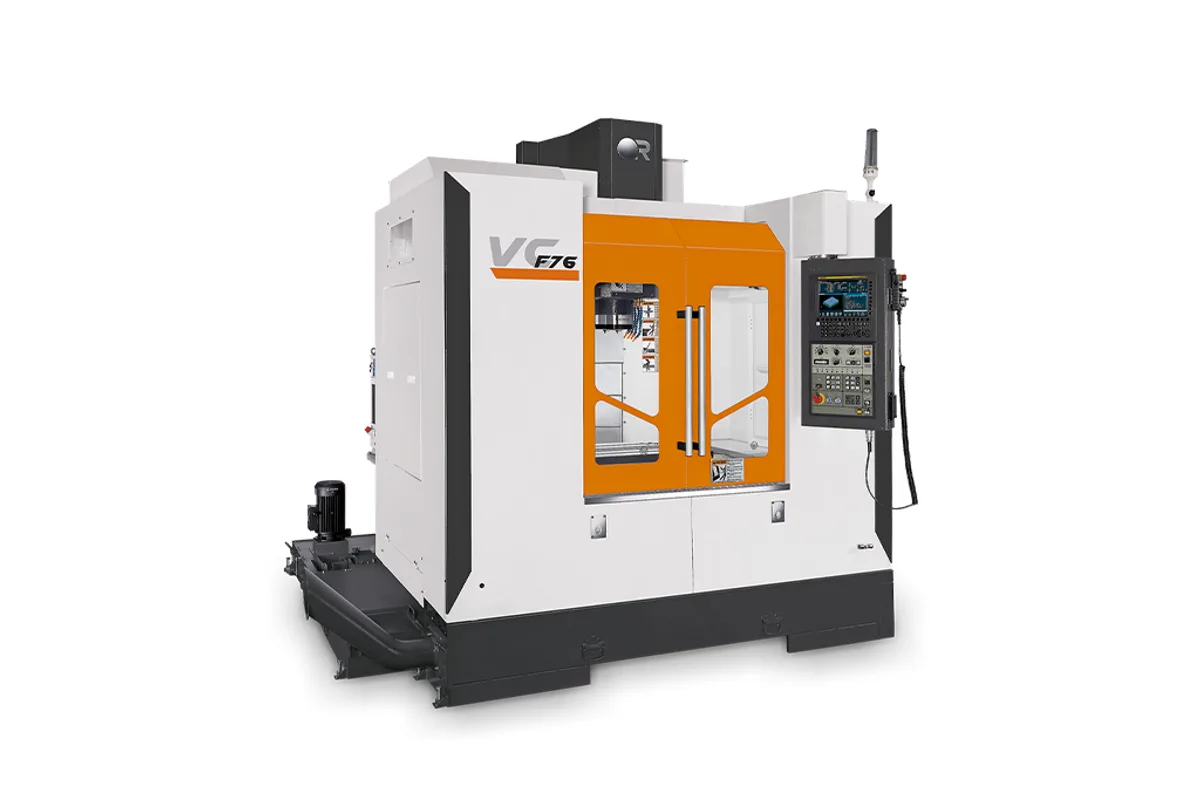

Victor Taichung Vcenter-F76
Image: machine-tools.victortaichung.com, Victor Taichung
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Victor Taichung Vcenter-F76 cost?
Price estimate
We do not have a price for the Victor Taichung Vcenter-F76 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Victor Taichung Vcenter-F76 is the maker's entry vertical machining center: 760 mm (29.92 in) of X travel, 500 mm (19.68 in) of Y and 510 mm (20.07 in) of Z, with a BT-40 spindle at 8,000 rpm and a 24-tool magazine. The table measures 840 x 500 mm (33.07 x 19.68 in) and carries 500 kg (1,102.30 lb).
The specification is deliberately plain. An 8,000 rpm spindle with 11 / 15 kW (15 / 20 HP) is a general-purpose choice that favours steel, cast iron and larger cutters over small tools in aluminium, and the maker lists 10000 rpm spindles as an option for buyers who need more. The magazine can be raised to 30 tools. A spindle oil cooler and coolant through the spindle are options too, not standard equipment on this series.
Underneath, the build is the same kind as the maker's higher series: roller guideways, Ø40 mm ballscrews and rapid feeds of 32/32/32 m/min. Screw chip removers are included, with disposal to the left. The table is as deep as the Y travel, so the spindle reaches the whole surface front to back.
Positioning accuracy is listed at 0.010 mm and repeatability at 0.007 mm (±0.0035 mm) to ISO 230-2. The machine weighs 5,260 kg (11,596.30 lb) and runs a Fanuc 0i-MF Plus control with a 10.4 in screen.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 760 mm (29.92 in) |
| Y Axis Travel | 500 mm (19.68 in) |
| Z Axis Travel | 510 mm (20.07 in) |
| Table Size | 840 x 500 mm (33.07 x 19.68 in) |
| T-Slots | 4 x 18 x 100 mm |
| Max Table Load | 500 kg (1,102.30 lb) |
| Spindle Taper | BT-40 |
| Spindle Motor Power | 11 / 15 kW (15 / 20 HP) |
| Max Spindle Speed | 8,000 rpm |
| Tool Capacity | 24 |
| Max Tool Weight | 7 kg (15.43 lb) |
| Positioning Accuracy | 0.010 mm |
| Repeatability | 0.007 mm (±0.0035 mm) |
| Machine Weight | 5,260 kg (11,596.30 lb) |
Specifications sourced from machine-tools.victortaichung.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Roller guideways and Ø40 mm ballscrews with rapid feeds of 32/32/32 m/min
- Table depth of 500 mm matches the 500 mm (19.68 in) Y travel
- 24-tool magazine as standard, 30 tools optional
- Screw chip removers are included
- Fanuc 0i-MF Plus control with a 10.4 in screen
Limitations
- 8,000 rpm spindle; 10000 rpm is an option
- Spindle oil cooler is optional on this series
- Table load is limited to 500 kg (1,102.30 lb)
- BT-40 taper without the dual-contact interface of the P series
Best For
Frequently Asked Questions
01
760 mm (29.92 in) in X, 500 mm (19.68 in) in Y and 510 mm (20.07 in) in Z. The table is 840 x 500 mm (33.07 x 19.68 in) with 4 x 18 x 100 mm T-slots and a maximum load of 500 kg (1,102.30 lb).
02
A BT-40 spindle with a maximum speed of 8,000 rpm and a motor rating of 11 / 15 kW (15 / 20 HP). The maker lists 10000 rpm spindles as an option for the F series.
03
The table lists an accuracy of 0.010 mm and a repeatability of 0.007 mm (±0.0035 mm), both under the heading ISO 230-2. Linear scales are available as an option.
04
The maker's table shows the same figures in both columns for this model. CTS stands for coolant through spindle, which appears on the F series option list, so the columns differ in that equipment and not in the listed specifications.
More from Victor Taichung
Other Vertical Machining Centers (VMC)
HNK HPF-20M (20x40)

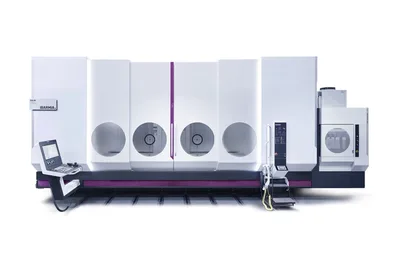

Ibarmia ZLV5
