Hurco VMX 7535
This model was not found in Hurco's current lineup when we checked on 2026-10-03 (lineup page). It may be a superseded or older model; the specifications below are as we last recorded them.
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity
How much does the Hurco VMX 7535 cost?
Estimated price range
Our best estimate for a vertical machining centers (vmc) in this class — not a quote from Hurco. Configuration moves it a long way.
Overview

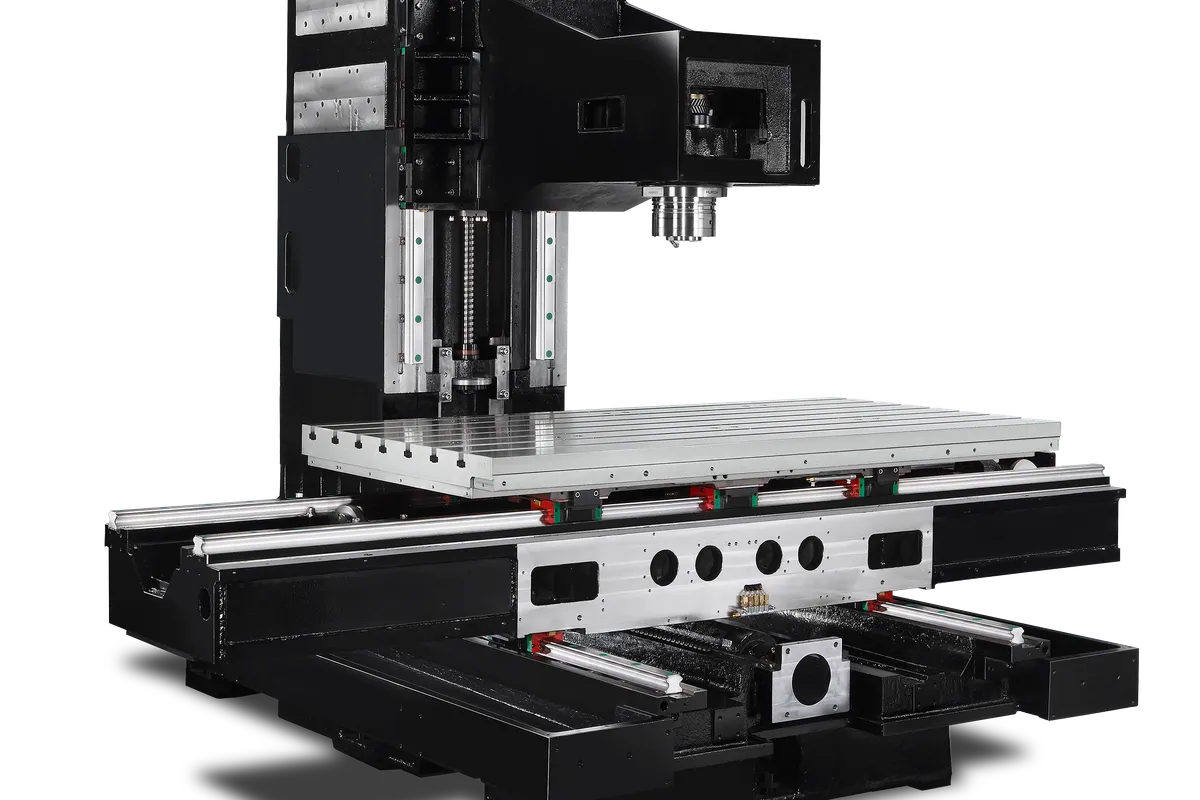

The Hurco VMX 7535 is a large three-axis vertical machining center listed with 1,905 mm (75 in) of X, 889 mm (35 in) of Y and 610 mm (24 in) of Z, a 2,032 x 914 mm (80 x 36 in) table and a 3,175 kg (7,000 lb) table load. It does not appear in Hurco's current lineup and is most likely an older model. The table on this page could not be checked against a Hurco product page, so treat these as the listed figures and confirm them on the machine.
The listed spindle is CAT 50 Big Plus, 37 kW (50 hp), to 12,000 RPM, with a 40-tool magazine. That speed is high for a 50 taper: the current VMX84i-50T, for comparison, runs its CAT 50 spindle to 8,000 rpm. On a used VMX 7535, check the spindle plate and the spindle documentation before relying on the top speed, and note that no torque figure, tool size limit or machine weight is listed.
The other listed figures are a rapid traverse of 25.4 m/min (1,000 ipm) on X, Y and Z, positioning accuracy of ±0.005 mm (±0.0002 in), repeatability of ±0.003 mm (±0.0001 in), and the Hurco WinMax control. A machine of this kind would be bought for long, wide and heavy work such as large plates and fabrications, but the 610 mm (24 in) of Z sets the limit on part height once a 50-taper holder and tool are in the spindle.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 1,905 mm (75 in) |
| Y-Axis Travel | 889 mm (35 in) |
| Z-Axis Travel | 610 mm (24 in) |
| Max Spindle Speed | 12,000 RPM |
| Spindle Taper | CAT 50 Big Plus |
| Spindle Motor Power | 37 kW (50 hp) |
| Tool Capacity | 40 |
| Table Size | 2,032 x 914 mm (80 x 36 in) |
| Table Load Capacity | 3,175 kg (7,000 lb) |
| Rapid Traverse Xyz | 25.4 m/min (1,000 ipm) |
| Positioning Accuracy | ±0.005 mm (±0.0002 in) |
| Repeatability | ±0.003 mm (±0.0001 in) |
| CNC Control | Hurco WinMax |
Specifications compiled from manufacturer literature and industry references. Not independently verified against a published spec sheet — confirm with the manufacturer or an authorised dealer before making a purchasing decision.
Strengths & Limitations
Strengths
- Listed table of 2,032 x 914 mm (80 x 36 in) with a 3,175 kg (7,000 lb) load rating
- 1,905 mm (75 in) of X and 889 mm (35 in) of Y for large plates and fabrications
- Listed CAT 50 Big Plus spindle of 37 kW (50 hp)
- 40-tool magazine and Hurco WinMax control
Limitations
- Not in Hurco's current lineup, and the listed figures could not be checked against a Hurco product page
- Z travel of 610 mm (24 in) limits part height with 50-taper tooling
- No torque, tool size or machine weight figures are listed
- Listed 12,000 RPM on CAT 50 is higher than the 8,000 rpm of the current VMX84i-50T, so verify it on the machine
Best For
Frequently Asked Questions
01
No. It does not appear in Hurco's current lineup and is most likely an older model. The figures on this page are the listed ones and have not been checked against a Hurco product page, so confirm them on any machine you look at.
02
X 1,905 mm (75 in), Y 889 mm (35 in) and Z 610 mm (24 in), over a 2,032 x 914 mm (80 x 36 in) table rated for 3,175 kg (7,000 lb). Listed rapid traverse is 25.4 m/min (1,000 ipm).
03
The spindle first: it is listed as CAT 50 Big Plus at 12,000 RPM and 37 kW (50 hp), and the speed is unusual for a 50 taper. No machine weight or tool size limits are listed, so get them for the specific machine before planning rigging and tooling.
04
Positioning accuracy of ±0.005 mm (±0.0002 in) and repeatability of ±0.003 mm (±0.0001 in). On an older machine, a ballbar or laser check is the way to find out what it holds today.
