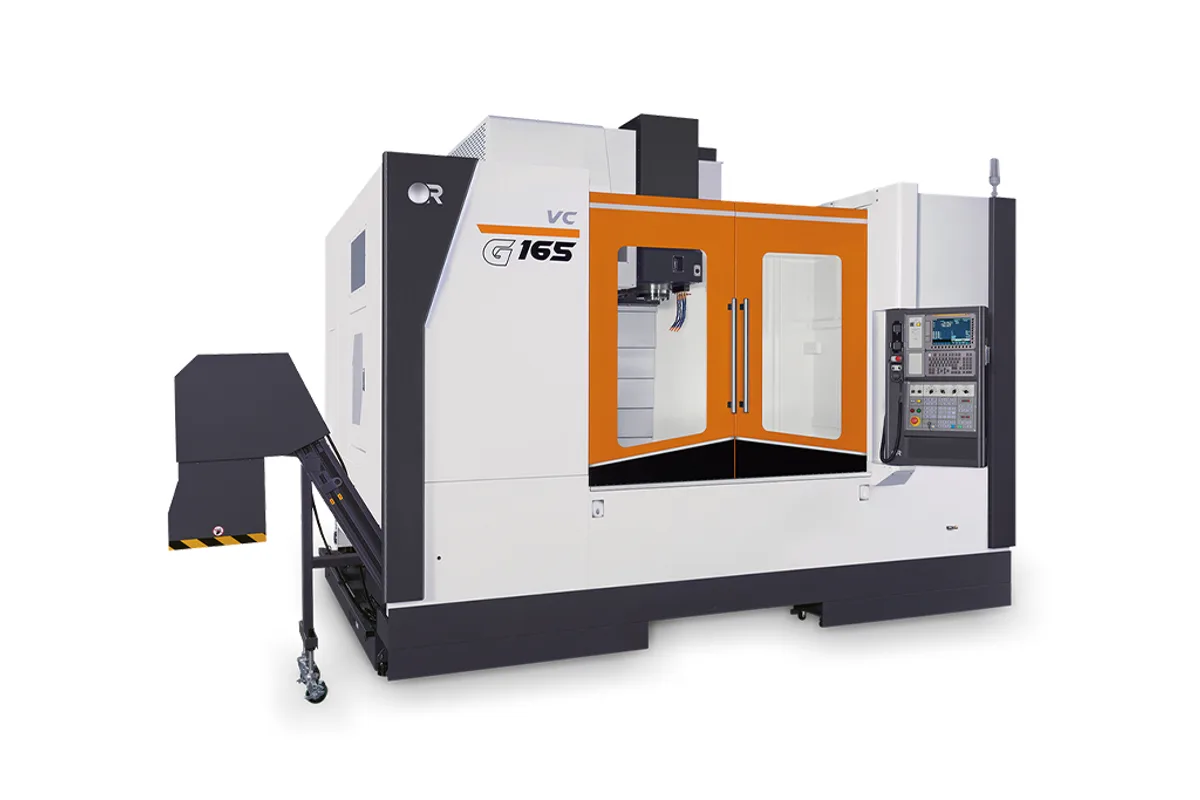

Victor Taichung Vcenter-G165
Image: machine-tools.victortaichung.com, Victor Taichung
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Victor Taichung Vcenter-G165 cost?
Price estimate
We do not have a price for the Victor Taichung Vcenter-G165 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Victor Taichung Vcenter-G165 is the largest box-way vertical machining center the maker lists, a 16,500 kg (36,376.22 lb) machine with travels of 1,650 mm (64.96 in), 850 mm (33.46 in) and 900 mm (35.43 in). The table measures 1,700 x 800 mm (66.92 x 31.49 in) and carries 2,500 kg (5,511.54 lb).
Z travel is the figure that stands out. At 900 mm (35.43 in) it is taller than the Y axis is deep, which opens the machine to deep die cavities, tall housings and work stacked on angle plates. The T-slots step up as well, to 22 mm wide on a 150 mm pitch, for heavier clamping.
One detail of the table to note: Y travel is 850 mm (33.46 in) but the table is 800 mm deep. The spindle can therefore run past the table edge, and a workpiece may overhang slightly and still be reached.
Cutting hardware is common to the series. The gearhead BBT-50 spindle turns at up to 6,000 rpm with 15 / 18 kW (20 / 25 HP), all axes run on box slideways with Ø50mm ballscrews, and the magazine holds 24 tools of up to 15 kg (33.06 lb). The motor is no bigger than on the smallest G model, so cycle time on large parts comes from rigidity and depth of cut at low speed, not from power in reserve.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,650 mm (64.96 in) |
| Y Axis Travel | 850 mm (33.46 in) |
| Z Axis Travel | 900 mm (35.43 in) |
| Table Size | 1,700 x 800 mm (66.92 x 31.49 in) |
| T-Slots | 5 x 22 x 150 mm |
| Max Table Load | 2,500 kg (5,511.54 lb) |
| Spindle Taper | BBT-50 |
| Spindle Motor Power | 15 / 18 kW (20 / 25 HP) |
| Max Spindle Speed | 6,000 rpm |
| Tool Capacity | 24 |
| Max Tool Weight | 15 kg (33.06 lb) |
| Positioning Accuracy | 0.010 mm |
| Repeatability | 0.007 mm (±0.0035 mm) |
| Machine Weight | 16,500 kg (36,376.22 lb) |
Specifications sourced from machine-tools.victortaichung.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 900 mm (35.43 in) of Z travel for deep and tall work
- 1,700 x 800 mm (66.92 x 31.49 in) table rated for 2,500 kg (5,511.54 lb)
- Box slideways for all axes on a 16,500 kg (36,376.22 lb) machine
- Gearhead BBT-50 spindle with 15 kg (33.06 lb) tools
- T-slots 22 mm wide on a 150 mm pitch
Limitations
- Spindle motor is the same 15 / 18 kW (20 / 25 HP) as the smaller G models
- Maximum spindle speed is 6,000 rpm
- Table load rises only to 2,500 kg (5,511.54 lb) from the 2,200 kg of the Vcenter-G135
- 24-tool magazine as standard
Best For
Frequently Asked Questions
01
1,650 mm (64.96 in) in X, 850 mm (33.46 in) in Y and 900 mm (35.43 in) in Z. The table is 1,700 x 800 mm (66.92 x 31.49 in) with 5 x 22 x 150 mm T-slots.
02
Up to 2,500 kg (5,511.54 lb) on the table. The machine itself weighs 16,500 kg (36,376.22 lb), so the foundation should be checked for the combined load.
03
A gearhead BBT-50 spindle with a maximum speed of 6,000 rpm and a motor rated 15 / 18 kW (20 / 25 HP). It takes tools of up to 15 kg (33.06 lb) from a 24-tool magazine.
04
A Fanuc 0i-MF Plus control with a 10.4 in screen is standard for the G series, and a version with a 15 in screen is on the option list along with linear scales and a 4th/5th axis interface.
