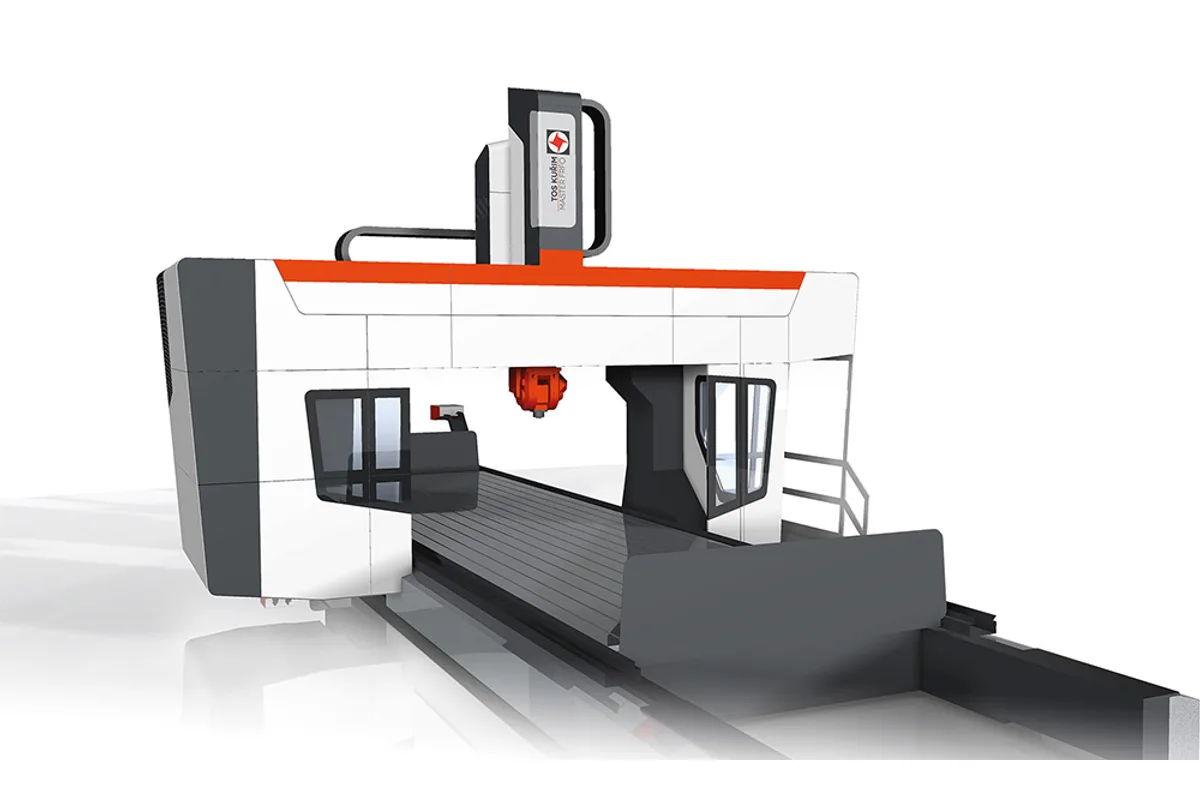

TOS Kuřim FRF 250
Image: tos-kurim.cz, TOS Kuřim
Key Specifications
Max Spindle
x axis travel
y axis travel
z axis travel
feed range x
feed range y
How much does the TOS Kuřim FRF 250 cost?
Price estimate
We do not have a price for the TOS Kuřim FRF 250 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
With a 2,500 mm (98.4 in) table and 3,400 mm (133.9 in) of Y travel, the TOS Kuřim FRF 250 is the second size of the FRF gantry machining centres. The layout is a movable gantry with a fixed cross-rail. The columns stand 3,050 mm (120.1 in) apart, so the opening is wider than the table and the Y stroke is longer still.
Why does Y exceed the table width? On a gantry with exchangeable heads the spindle has to travel past the edge of the part to work its sides with an angular head, and it needs room to park and change heads. The catalogue does not spell out how the extra travel is used on this model, so treat that as the usual reason, not as a stated one.
Lengthwise the machine is built to order. X runs 4,000 - 24,000 by 1,000 mm (157.5 - 944.9 by 39.4 in). Z is 1,500 mm (59.1 in) and the table-to-cross-rail clearance is 2,050 mm (80.7 in), both identical to the FRF 200 and the FRF 300. The three sizes share the 4,000/6,000 rpm spindle options and 30/37/45 kW (40/50/60 hp) of drive power too. Choosing between them is a question of part width and nothing else.
Feeds are listed as 1 - 20,000 mm/min in X, Y and Z, with 1 - 30,000 mm/min in brackets. The series features name linear roller guideways, thermal stabilization of the headstock and of the exchangeable spindle heads, and axial tool cooling. For workholding the catalogue's accessories page describes fixed clamping plates built from segments with a table load of 6,000 kg/m2.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 4,000 - 24,000 by 1,000 mm (157.5 - 944.9 by 39.4 in) |
| Y Axis Travel | 3,400 mm (133.9 in) |
| Z Axis Travel | 1,500 mm (59.1 in) |
| Feed Range X | 1 - 20,000 mm/min (1 - 30,000 mm/min) |
| Feed Range Y | 1 - 20,000 mm/min (1 - 30,000 mm/min) |
| Feed Range Z | 1 - 20,000 mm/min (1 - 30,000 mm/min) |
| Table Width | 2,500 mm (98.4 in) |
| Clearance Between Columns | 3,050 mm (120.1 in) |
| Clearance Table to Cross Rail | 2,050 mm (80.7 in) |
| Max Spindle Speed | 4,000/6,000 rpm |
| Drive Power | 30/37/45 kW (40/50/60 hp) |
| Workspace | fixed table, fixed table with carousel table |
Specifications sourced from tos-kurim.cz — verified 2026-10-04
Strengths & Limitations
Strengths
- 3,400 mm (133.9 in) of Y travel over a 2,500 mm (98.4 in) table leaves stroke beyond both table edges
- 3,050 mm (120.1 in) between the columns
- Same 30/37/45 kW (40/50/60 hp) drive and 4,000/6,000 rpm spindle options as the larger FRF sizes
- Thermal stabilization of the headstock and of the exchangeable spindle heads is listed for the series
- X travel from 4,000 mm to 24,000 mm in 1,000 mm steps
Limitations
- Z travel is 1,500 mm (59.1 in) with no longer option in the table
- The cross-rail does not move, so 2,050 mm (80.7 in) under it is the height limit for part plus fixture
- Feed above 1 - 20,000 mm/min appears only in brackets, as 1 - 30,000 mm/min, and the catalogue does not explain the condition
- No tool changer capacity, torque or machine weight is published for this size
Best For
Frequently Asked Questions
01
X is 4,000 - 24,000 by 1,000 mm (157.5 - 944.9 by 39.4 in), chosen at order. Y is 3,400 mm (133.9 in). Z is 1,500 mm (59.1 in). All three axes are listed with a feed range of 1 - 20,000 mm/min, and 1 - 30,000 mm/min in brackets.
02
The clearance between the columns is 3,050 mm (120.1 in) and the table is 2,500 mm (98.4 in) wide. Height under the fixed cross-rail is 2,050 mm (80.7 in). A part that overhangs the table still has to pass between the columns along the whole X travel, because the gantry moves over it.
03
The FRF feature list names linear roller guideways in the linear axes. Other gantry series in the same catalogue offer linear roller or hydrostatic guideways; the FRF list mentions roller guideways only.
04
They differ in width. The FRF 300 has a 3,000 mm (118.1 in) table, 3,900 mm (153.5 in) of Y and 3,550 mm (139.8 in) between columns. Everything else in the two columns of the table is the same, so pick the size by the widest part you expect, with room for clamps.
