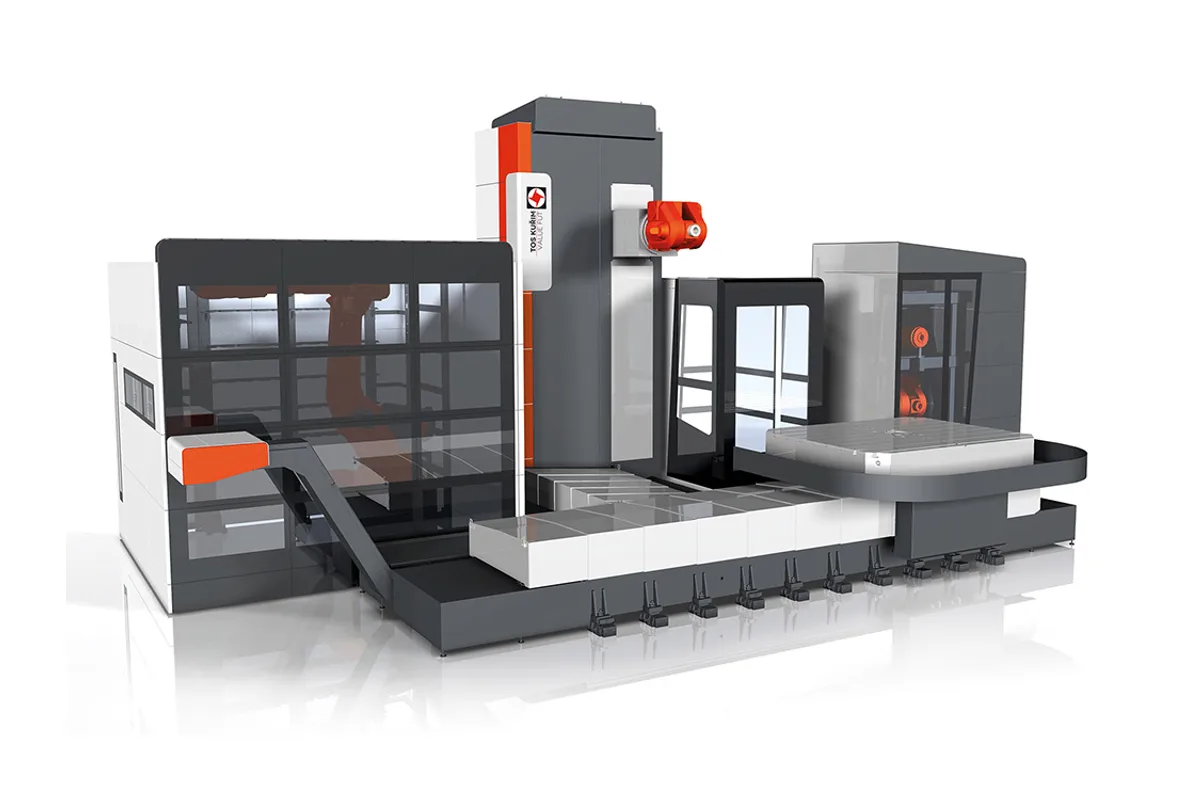

TOS Kuřim FUT 200
Image: tos-kurim.cz, TOS Kuřim
Key Specifications
Max Spindle
x axis travel
y axis travel
z axis travel
feed range x
feed range y
How much does the TOS Kuřim FUT 200 cost?
Price estimate
We do not have a price for the TOS Kuřim FUT 200 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The TOS Kuřim FUT 200 gives the FUT horizontal machining centre a longer column stroke: Z is 2,000 mm (78.7 in). Like the FUT 150 it has no W axis. The column moves transversely, the headstock moves vertically, and the rotary table carries the part along X.
What does the extra Z buy? Room around the table. With the largest table, 2,000 x 2,400 mm, a part can overhang or stand well off-centre, and the column still has to back away far enough for the table to index and come in far enough to cut the near face. A two-metre stroke gives both. It also leaves space for longer heads from the maker's exchangeable range.
Travel in X is 3,000/4,000/5,000 mm (118.1/157.5/196.9 in) and in Y 2,000/2,500/3,000 mm (78.7/98.4/118.1 in). All three table sizes are available: 1,600 x 1,800 / 1,800 x 2,200 / 2,000 x 2,400 mm (63.0 x 70.9 / 70.9 x 86.6 / 78.7 x 94.5 in).
Feeds are 1 - 20,000 mm/min, with 1 - 30,000 mm/min in brackets, and the feature list quotes rapid feed up to 30 m/min. The spindle rows are 4,000/6,000 rpm and 30/37/45 kW (40/50/60 hp). The bed and column are described as a "modern optimized solution", and the machine is listed as suitable for installation directly on the load-bearing floor of the hall.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 3,000/4,000/5,000 mm (118.1/157.5/196.9 in) |
| Y Axis Travel | 2,000/2,500/3,000 mm (78.7/98.4/118.1 in) |
| Z Axis Travel | 2,000 mm (78.7 in) |
| Feed Range X | 1 - 20,000 mm/min (1 - 30,000 mm/min) |
| Feed Range Y | 1 - 20,000 mm/min (1 - 30,000 mm/min) |
| Feed Range Z | 1 - 20,000 mm/min (1 - 30,000 mm/min) |
| Max Spindle Speed | 4,000/6,000 rpm |
| Rotary Table Size | 1,600 x 1,800 / 1,800 x 2,200 / 2,000 x 2,400 mm (63.0 x 70.9 / 70.9 x 86.6 / 78.7 x 94.5 in) |
| Drive Power | 30/37/45 kW (40/50/60 hp) |
Specifications sourced from tos-kurim.cz — verified 2026-10-04
Strengths & Limitations
Strengths
- Z travel of 2,000 mm (78.7 in), the longer column stroke of the series
- Rapid feed up to 30 m/min
- Three X lengths and three Y heights to match the part
- Rotary table as large as 2,000 x 2,400 mm
- Linear roller guideways in the linear axes
Limitations
- No headstock extension; the FUT 200-125 adds a W axis of 1,250/1,500 mm (49.2/59.1 in)
- Maximum spindle speed of 6,000 rpm and drive power of 45 kW at the top of their rows
- No rotary table load or indexing accuracy in the catalogue
Best For
Frequently Asked Questions
01
2,000 mm (78.7 in). Z is the transverse travel of the column. The FUT 150 has 1,500 mm (59.1 in) on the same X, Y and table options, so the choice between them comes down to how much room the part and the heads need in front of the spindle.
02
No W axis is listed for it. The catalogue's W row, headstock extension, is blank for this model. Depth of reach comes from the column travel and from the exchangeable spindle heads, which are changed automatically along with the tools.
03
The feature list gives rapid feed up to 30 m/min. The feed rows for X, Y and Z read 1 - 20,000 mm/min, with 1 - 30,000 mm/min in brackets. Guideways are linear roller.
04
The rotary table is 1,600 x 1,800 / 1,800 x 2,200 / 2,000 x 2,400 mm (63.0 x 70.9 / 70.9 x 86.6 / 78.7 x 94.5 in), with up to 3,000 mm of vertical travel and X of 3,000/4,000/5,000 mm (118.1/157.5/196.9 in). Table load is not published and should be requested.
