TOS Kuřim SKDY-D

Q: How much does the TOS Kuřim SKDY-D cost?

The price estimate for the TOS Kuřim SKDY-D is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/tos-kurim-skdy-d#price; the request is passed to TOS Kuřim or an authorised dealer.

Specs verified 2026-10-04 · tos-kurim.cz Updated 2026-10-04

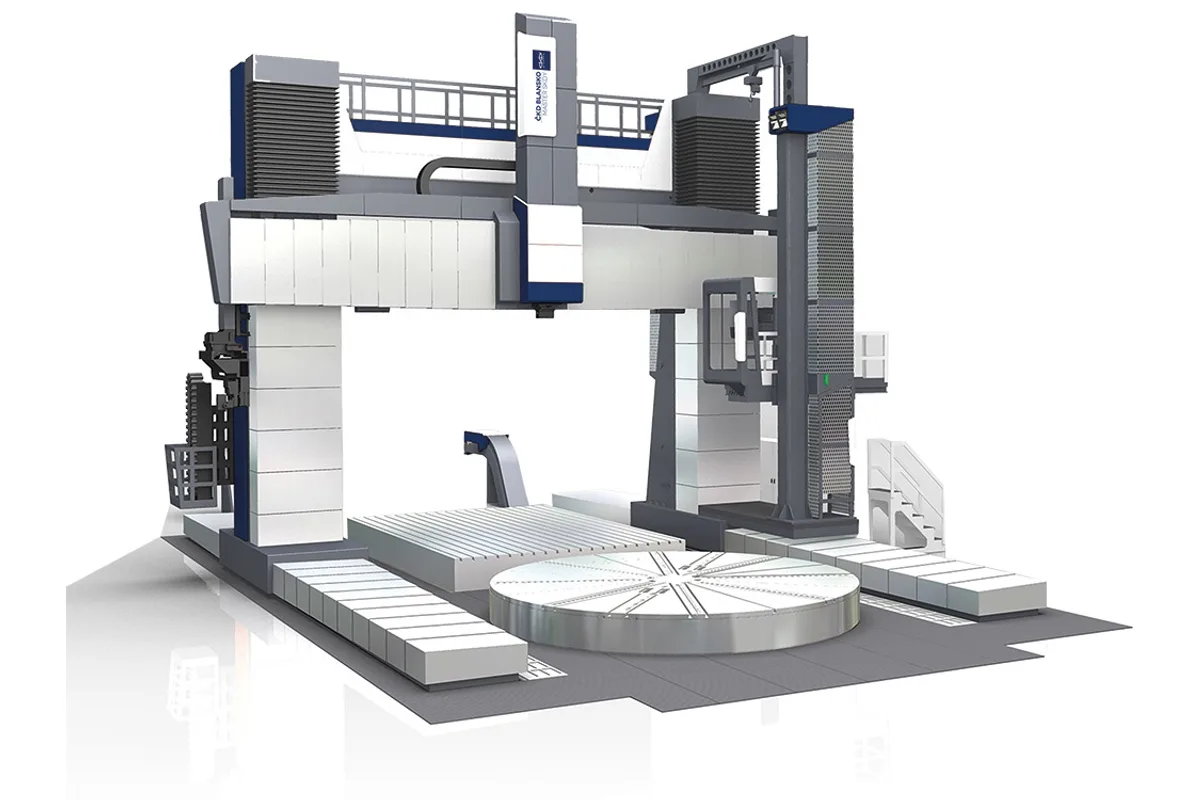

Image: tos-kurim.cz, TOS Kuřim

Key Specifications

clamping plate diameter

3,000/4,000/5,000 mm (118.1/157.5/196.9 in)

max turning diameter

4,000/5,000/6,000 mm (157.5/196.9/236.2 in)

machining height

2,000/2,800 mm (78.7/110.2 in)

max workpiece weight

30,000 - 100,000 kg (66,138 - 220,459 lb)

clamping plate speed

125 - 60 rpm

x axis travel

5,000 - 7,000 mm (196.9 - 275.6 in)

How much does the TOS Kuřim SKDY-D cost?

Price estimate

Uncertain

We do not have a price for the TOS Kuřim SKDY-D that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The TOS Kuřim SKDY-D is a vertical lathe with a Y axis. Its gantry moves, giving Y travel of 3,000/5,000 mm (118.1/196.9 in) in addition to the X, Z and W motions of a conventional vertical lathe. Clamping plates are 3,000/4,000/5,000 mm (118.1/157.5/196.9 in).

On a plain vertical lathe the tool lives on one radial line and every feature must be brought to it by turning the plate. A Y axis frees the tool from that line. Bolt circles, pads, keyways and pockets anywhere on the part can be milled and drilled with the plate indexed or stopped, the way a gantry machining centre would do it. That is why the feature list reads "movable gantry, movable cross-rail" and why the milling heads are exchanged automatically here.

As a lathe, it matches the SKD-D class. Maximum machining diameter is 4,000/5,000/6,000 mm (157.5/196.9/236.2 in), machining height 2,000/2,800 mm (78.7/110.2 in), plate speed 125 - 60 rpm and cutting force 40 kN. Workpiece weight is 30,000 - 100,000 kg (66,138 - 220,459 lb), rising with plate size.

X travel is 5,000 - 7,000 mm (196.9 - 275.6 in). The ram, 340 x 340 mm (13.4 x 13.4 in), extends 2,000/2,500 mm (78.7/98.4 in) and the cross-rail strokes 1,500/2,000 mm (59.1/78.7 in). Z runs on sliding guideways; X, Y and W on linear profile guides.

Full Specifications

Parameter	Value
Clamping Plate Diameter	3,000/4,000/5,000 mm (118.1/157.5/196.9 in)
Max Turning Diameter	4,000/5,000/6,000 mm (157.5/196.9/236.2 in)
Machining Height	2,000/2,800 mm (78.7/110.2 in)
Max Workpiece Weight	30,000 - 100,000 kg (66,138 - 220,459 lb)
Clamping Plate Speed	125 - 60 rpm
X Axis Travel	5,000 - 7,000 mm (196.9 - 275.6 in)
Y Axis Travel	3,000/5,000 mm (118.1/196.9 in)
Z Axis Travel Ram	2,000/2,500 mm (78.7/98.4 in)
W Axis Travel Cross Rail	1,500/2,000 mm (59.1/78.7 in)
Ram Cross Section	340 x 340 mm (13.4 x 13.4 in)
Cutting Force	40 kN
Z Axis Guideways	sliding
X Y W Axis Guideways	linear profile

Specifications sourced from tos-kurim.cz — verified 2026-10-04

Strengths & Limitations

Strengths

Y axis travel of 3,000/5,000 mm (118.1/196.9 in) from the movable gantry
Automatic exchange of tool holders and milling heads
Three plate sizes, 3,000/4,000/5,000 mm (118.1/157.5/196.9 in), with machining diameters to match
Linear profile guideways on X, Y and W
Ram with a built-in milling spindle available as an option

Limitations

Cutting force of 40 kN; the SKDY-E lists 100 kN
Machining height limited to 2,000/2,800 mm (78.7/110.2 in)
Y travel is offered as 3,000 or 5,000 mm only
A moving gantry lengthens the installation compared with the SKD-D, and the catalogue gives no footprint

Best For

Turned parts with heavy milling and drilling content away from the centre line Flanges and housings up to 6,000 mm in diameter finished in one clamping Workpieces of 30,000 - 100,000 kg (66,138 - 220,459 lb) Replacing a lathe-plus-gantry route with a single machine

Frequently Asked Questions

01 What does the Y in SKDY stand for in practice?

A Y axis. The SKDY-D table has a row for Y axis travel, 3,000/5,000 mm (118.1/196.9 in), that the SKD table lacks, and the feature list describes a movable gantry. The tool can therefore be positioned off the radial line of the plate for milling and drilling.

02 What turning capacity does the SKDY-D have?

Clamping plates of 3,000/4,000/5,000 mm (118.1/157.5/196.9 in) with maximum machining diameters of 4,000/5,000/6,000 mm (157.5/196.9/236.2 in). Machining height is 2,000/2,800 mm (78.7/110.2 in) and workpiece weight 30,000 - 100,000 kg (66,138 - 220,459 lb).

03 How does the SKDY-D differ from the SKDY-D (movable table)?

The SKDY-D (movable table) is a smaller, faster variant: plates of 2,500/3,000/4,000/4,500 mm (98.4/118.1/157.5/177.2 in), plate speed of 250 - 80 rpm and workpieces of 30,000 - 70,000 kg (66,138 - 154,321 lb). As its name says, the table moves.

04 Which guideways are used on the SKDY-D?

The Z axis guideways are sliding. The X, Y and W axis guideways are linear profile. The heavier SKDY-E is hydrostatic on all of them.
