Pama Speedram 1000 Horizontal Boring Machine
Key Specifications
spindle diameter
ram travel w axis
x axis table floor
y axis vertical
z axis column
spindle speed
How much does the Pama Speedram 1000 Horizontal Boring Machine cost?
Estimated price range
Our best estimate for a cnc boring machine in this class — not a quote from Pama. Configuration moves it a long way.
Overview
The Pama Speedram 1000 is a horizontal boring machine with a 100 mm boring spindle carried on a ram. In the listed figures the ram travels 800 mm on the W axis, the spindle runs from 2 to 2,500 RPM, and maximum spindle torque is 6,000 Nm.
Travels are given as upper limits, not fixed values: up to 4,000 mm in X, up to 2,500 mm in Y on the vertical axis and up to 1,500 mm in Z on the column. The X row is labelled for both table and floor versions, so a machine on offer may carry the work on a table or stand beside floor plates. That choice sets the size and weight of part it can take, and the listed figures give no load rating for either, so ask for it.
The ram is what separates this layout from a plain quill-type borer. With 800 mm of W travel the spindle can be carried into a deep housing on a stiff support, so long bores are cut with short tools. The 2 RPM bottom of the speed range, combined with 6,000 Nm, suits large-diameter facing and boring at low cutting speed. The 2,500 RPM top end is enough for ordinary milling and drilling but not for high-speed work in aluminium.
A rotary table of up to 2,500 mm is listed as optional. The tool interface is ISO 50 or HSK-A100. The listed figures do not include spindle power, rapid traverse, a tool magazine or machine weight, which leaves several things to confirm before the machine can be planned into a shop.
Full Specifications
| Parameter | Value |
|---|---|
| Spindle Diameter | 100 mm |
| Ram Travel W Axis | 800 mm |
| X Axis Table Floor | Up to 4,000 mm |
| Y Axis Vertical | Up to 2,500 mm |
| Z Axis Column | Up to 1,500 mm |
| Spindle Speed | 2 - 2,500 RPM |
| Spindle Torque Max | 6,000 Nm |
| Rotary Table | Up to 2,500 mm (optional) |
| Tool Interface | ISO 50 / HSK-A100 |
| CNC Control | Siemens 840D sl |
| Spindle Bore | 75.95 mm |
Specifications compiled from manufacturer literature and industry references. Not independently verified against a published spec sheet — confirm with the manufacturer or an authorised dealer before making a purchasing decision.
Strengths & Limitations
Strengths
- 100 mm boring spindle with a listed maximum torque of 6,000 Nm
- 800 mm of ram travel on the W axis for reaching into deep housings
- Speed range of 2 - 2,500 RPM covers slow large-diameter boring and general milling
- Tool interface listed as ISO 50 or HSK-A100
Limitations
- The rotary table, up to 2,500 mm, is optional
- No spindle power, rapid traverse, magazine capacity or machine weight in the listed figures
- Travels are stated only as upper limits (up to 4,000 mm X, 2,500 mm Y, 1,500 mm Z), so the actual strokes depend on the machine
- Top speed of 2,500 RPM limits small-tool and aluminium work
Best For
Frequently Asked Questions
01
The listed figures give upper limits: up to 4,000 mm in X, up to 2,500 mm in Y (vertical) and up to 1,500 mm in Z (column), plus 800 mm of ram travel on W. Actual strokes depend on how the individual machine was built, so confirm them.
02
A 100 mm boring spindle with a speed range of 2 - 2,500 RPM and a maximum torque of 6,000 Nm. The tool interface is ISO 50 or HSK-A100. Spindle power is not among the listed figures.
03
Not as standard. A rotary table of up to 2,500 mm is listed as an option. Without it, a part has to be re-set to reach other faces, so check whether a table is included and what it is rated to carry.
04
Spindle power, rapid traverse, tool magazine capacity, workpiece load and machine weight are not listed. Those figures decide foundation, power supply and cycle time, so they should be obtained from the documentation of the machine in question before planning an installation.
Videos

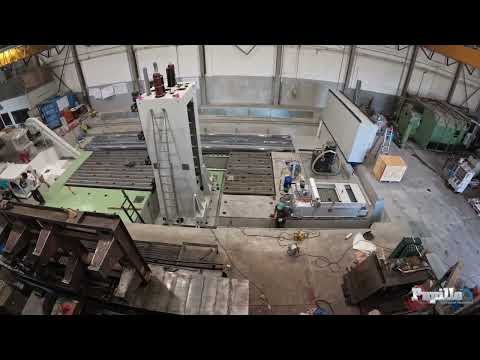

Bentivoglio Macchine utensili
