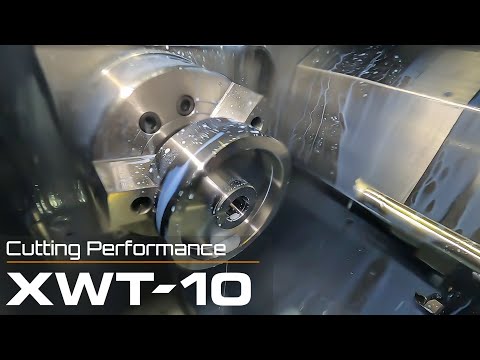

Takamaz XWT-10

$280,000 - $400,000 Updated 2026-03-19

Key Specifications

Max Spindle

Max. 2,800(4,000 Opt.)

Rapid Traverse

X:30 Y:80 Z:100

Spindle Power

AC18.5 / 15 ×2

Max Turn Length

180 mm (7.09 in) per spindle

max turning diameter

200 mm (7.87 in)

spindle speed

2,800 RPM (4,000 RPM optional) both spindles

Overview

The Takamaz XWT-10 is a twin-spindle, twin-turret CNC lathe in the 10-inch chuck class, representing the largest platform in Takamaz's automated twin-spindle lineup. With dual 10-station turrets and 18.5/15 kW spindles on both sides, the XWT-10 handles medium-sized parts up to 200 mm in diameter with the same automated both-end machining philosophy that defines Takamaz's smaller machines. The step up to 10-station turrets from the XW-200's 8-station configuration provides additional tool capacity for more complex part geometries.

Both spindles deliver 18.5/15 kW at up to 2,800 RPM (4,000 RPM optional) through 120 mm bores, providing substantial torque for roughing steel, cast iron, and stainless steel at larger diameters. The optional 4,000 RPM upgrade significantly expands the machine's effective speed range for smaller-diameter features and aluminum work. Each spindle's 10-station turret operates independently with 170 mm X-travel and 270 mm Z-travel, providing more Z-stroke than the XW-200 for longer parts.

The twin-spindle architecture with automatic part transfer between spindles enables complete both-end machining of larger workpieces. The loader specification references workpiece dimensions of approximately 200 mm diameter and 220 mm length, confirming the XWT-10's medium-part production focus. Rapid traverse rates of 24 m/min on both X and Z axes keep both turrets moving efficiently.

The Fanuc 0i-TF control manages multi-channel programming for synchronized or independent turret operation. The 2,030 x 2,370 mm footprint (2,350 x 2,370 mm with loader) is compact for a 10-inch twin-spindle twin-turret machine. The XWT-10 fills the gap between Takamaz's 8-inch class machines and the large-frame lathes offered by Mazak and Okuma, providing production automation for parts that outgrow the 8-inch platform.

Full Specifications

Parameter	Value
Max Turning Diameter	200 mm (7.87 in)
Max Turning Length	180 mm (7.09 in) per spindle
Spindle Speed	2,800 RPM (4,000 RPM optional) both spindles
Spindle Motor Power	AC18.5 / 15 ×2
Spindle Bore	120 mm (4.72 in)
Chuck Size	Collet, 10×2
Turret Stations	10 per turret (20 total)
X Axis Travel	170 mm (6.7 in) per turret
Z Axis Travel	270 mm (10.6 in) per turret
Rapid Traverse X	24 m/min (945 IPM)
Rapid Traverse Z	24 m/min (945 IPM)
Gantry Loader	Integrated (standard)
CNC Control	Fanuc 0i-TF
Floor Space Required	2,030 x 2,370 mm (79.9 x 93.3 in) (2,350 x 2,370 mm with loader)
Item	Ability
Spindle	Spindle bearing I.D.
Max Spindle Speed	Max. 2,800(4,000 Opt.)
Tool Post	Type
Maxstroke	X:170Z:270
Rapid Traverse Rate	X:30 Y:80 Z:100
W L	2,030 (2,350 ※) × 2,370
Cnc Control	TAKAMAZ & FANUC 0i-TF
Itemloader Specifications	Ability
Workpiece Diameter	φ200
Workpiece Length	220
Max Load Capacity	8.0

Specifications sourced from takamaz.co.jp — verified 2026-03-28

Strengths & Limitations

Strengths

10-inch twin-spindle twin-turret platform handles medium-sized parts that 8-inch machines cannot accommodate
10-station turrets on both sides provide more tool capacity than the XW-200 for complex part geometries
18.5/15 kW spindles on both sides deliver serious torque for aggressive roughing on steel and cast iron
Optional 4,000 RPM spindle upgrade significantly expands speed range for aluminum and small-diameter features
270 mm Z-travel per turret handles longer parts than the XW-200 with 220 mm Z-travel
24 m/min rapid traverse on all axes keeps both turrets moving efficiently between operations

Limitations

Standard 2,800 RPM spindle speed limits surface speed on small-diameter features without the 4,000 RPM upgrade
Highest cost in the Takamaz lineup requires significant production volume and part value for ROI
No live tooling on standard configuration requires secondary operations for cross-drilling and milling
Limited Takamaz service infrastructure outside Japan compared to Mazak, Okuma, or DMG Mori

Best For

High-volume production of medium-sized parts requiring complete both-end machining up to 200 mm diameter Automotive manufacturing of larger components like differential housings, pump bodies, and brake parts Hydraulic and pneumatic industry production of larger valve bodies and cylinder components Shops upgrading from 8-inch Takamaz platforms to handle larger-diameter parts with the same automation level Production environments where 10-station turrets and longer Z-travel expand capability beyond the XW-200

Frequently Asked Questions

01 What does a Takamaz XWT-10 cost?

New Takamaz XWT-10 machines typically price between $280,000 and $400,000 depending on spindle speed option, tooling, and loader configuration. The 4,000 RPM spindle upgrade adds approximately $15,000-$25,000 but significantly expands the machine speed range.

02 How does the XWT-10 compare to the XW-200?

The XWT-10 upgrades to 10-station turrets (vs 8-station), extends Z-travel to 270 mm (vs 220 mm), and offers an optional 4,000 RPM spindle upgrade. These improvements provide more tool capacity and longer part capability at a higher price point.

03 Is the 4,000 RPM spindle option worth the upgrade?

If your part mix includes smaller-diameter features or aluminum components, the 4,000 RPM option is strongly recommended. The standard 2,800 RPM limits surface speed on features below 100 mm diameter, particularly on aluminum where higher speeds are needed for good finish.

04 How does the XWT-10 compare to a Mazak QT with sub-spindle?

The Mazak QT series offers more flexibility with C-axis, Y-axis, and live tooling options, plus a larger dealer network. The XWT-10 focuses on pure twin-spindle throughput with integrated gantry loading. For high-volume simple both-end parts, the XWT-10 typically cycles faster; for complex parts, the Mazak is more versatile.
