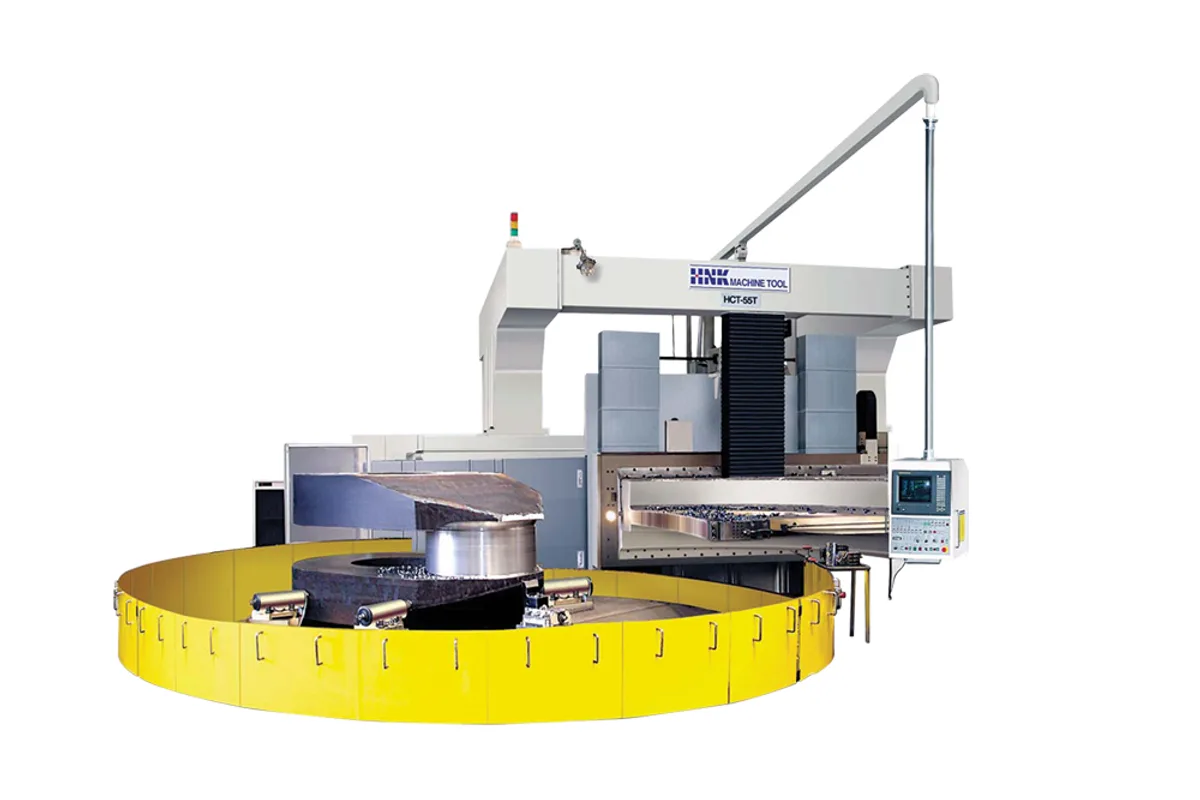

HNK HCT-55T
Image: en.hnkkorea.com, HNK
Key Specifications
table diameter
max swing
table speed range
max table load
table drive motor
x axis travel
How much does the HNK HCT-55T cost?
Price estimate
We do not have a price for the HNK HCT-55T that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The HNK HCT-55T is the largest crankthrow lathe HNK lists: a 5,500 mm (216.5 in) table, 6,000 mm (236.2 in) of swing and 90,000 kg (198,413 lb) on the table.
Its speed range is the slowest of the series at 1 ~ 30 rpm. That follows from the swing. At six metres the rim of the work moves faster for each revolution, so fewer are needed to reach cutting speed. The table motor is 171 kW (229.3 hp).
Reach grows with the table. The tool arm travels 2,800 mm (110.2 in) in X and 1,500 mm (59.1 in) in Z, the longest of any HCT. Load capacity does not grow: it equals the HCT-52T. The extra swing is therefore for throws with a longer stroke, where the pin sits further from the journal, not for heavier ones.
Fanuc 31i-B is the control, with Siemens 840D in braces.
Full Specifications
| Parameter | Value |
|---|---|
| Table Diameter | 5,500 mm (216.5 in) |
| Max Swing | 6,000 mm (236.2 in) |
| Table Speed Range | 1 ~ 30 rpm |
| Max Table Load | 90,000 kg (198,413 lb) |
| Table Drive Motor | 171 kW (229.3 hp) |
| X Axis Travel | 2,800 mm (110.2 in) |
| Z Axis Travel | 1,500 mm (59.1 in) |
| CNC Control | Fanuc 31i-B {Siemens 840D} |
Specifications sourced from en.hnkkorea.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Largest swing in the series at 6,000 mm (236.2 in)
- Tool arm travels of 2,800 mm (110.2 in) in X and 1,500 mm (59.1 in) in Z
- 171 kW (229.3 hp) table drive and 90,000 kg (198,413 lb) load
Limitations
- Table speed limited to 30 rpm
- Table load is no higher than on the HCT-52T
- Needs foundation and crane capacity for 90,000 kg forgings
Best For
Frequently Asked Questions
01
Table diameter is 5,500 mm (216.5 in), maximum swing 6,000 mm (236.2 in) and maximum load on the table 90,000 kg (198,413 lb). The table turns at 1 ~ 30 rpm under a 171 kW (229.3 hp) motor.
02
The HCT-52T has a 5,200 mm (204.7 in) table, 5,600 mm (220.5 in) of swing, 2,550 mm (100.4 in) of X, 1,450 mm (57.1 in) of Z and 1 ~ 35 rpm. The HCT-55T is larger in every dimension and slower, with the same motor and table load.
03
No. HNK lists it as a CNC vertical lathe for crankthrow, designed for machining crankthrows of large ship engines. For general turning HNK's NT and VTC series cover similar table diameters with a conventional layout.
