Tajmac-ZPS MCH630i

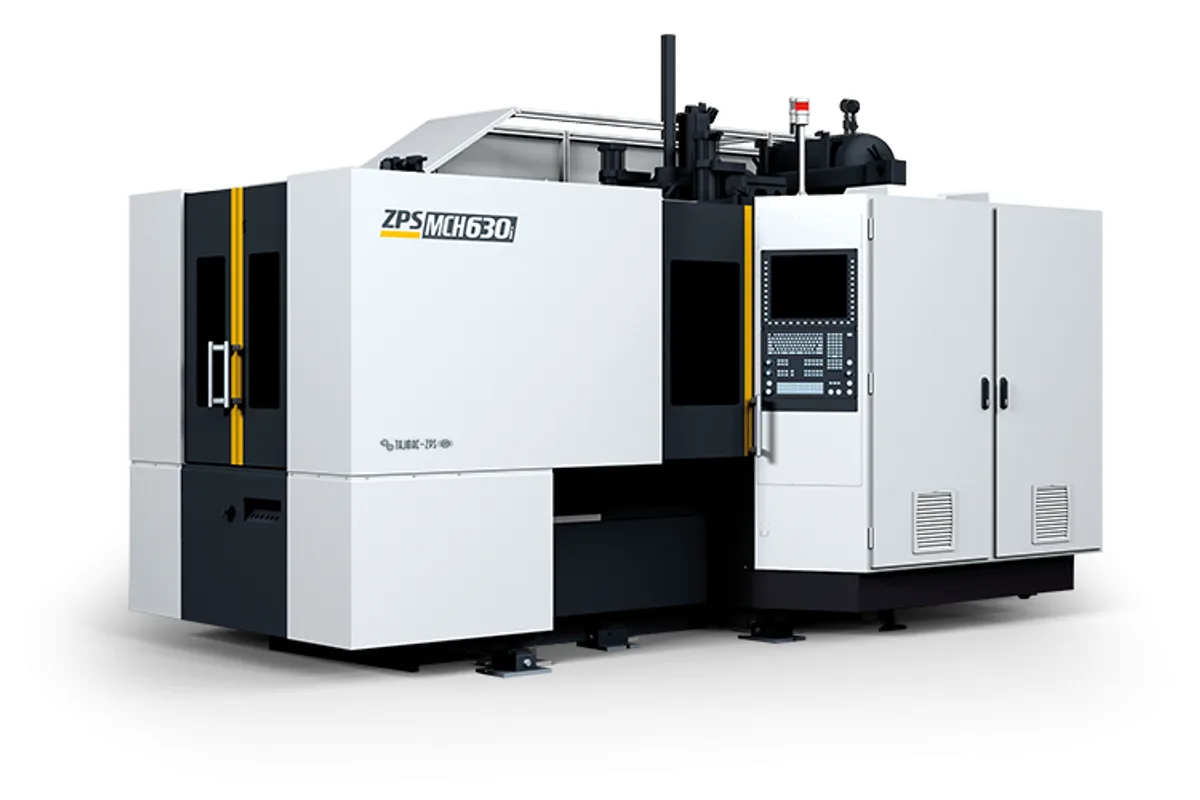

Image: tajmac-zps.cz, Tajmac-ZPS
Key Specifications
Tool Capacity
Accuracy
Repeatability
x axis travel
y axis travel
z axis travel
How much does the Tajmac-ZPS MCH630i cost?
Price estimate
We do not have a price for the Tajmac-ZPS MCH630i that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The MCH630i is the small horizontal in the ZPS range: a twin-pallet machining centre with 630 × 630 mm pallets, travels of 750 x 700 x 770 mm (29.5 x 27.6 x 30.3 in) and a pallet load of 800 kg including the clamping fixture. The column moves in X, the spindle head in Y, and the rotary table carries the work in Z and turns it through 360° on the B axis.
It is a distinctly lighter machine than its two larger siblings, and that shows in every row. Axial forces are 15 kN in X, 8 kN in Y and 10 kN in Z, where the MCH800i lists 20 kN, 10.5 kN and 20 kN. It weighs 17,000 kg, where the MCH800i weighs 31,000 kg. In return it is quicker around the pallet: the pallet change takes 10 s, half the 20 s of the MCH800i, and the whole layout fits in 5,800 × 3,140 × 3,260 mm.
Linear axes run at 50 m/min in both rapid traverse and working feed, with 5 m/s2 of acceleration. The B axis is driven through a worm gear as standard at up to 8 rpm with 2,160 Nm; the optional torque motor turns at 38 rpm with 1,310 Nm, so on this size the faster table has less torque. Positioning error to ISO 230-2 is 0.008 mm on the linear axes and 6 arc sec on B.
A 60-tool cassette magazine is standard, with 80, 100 and 120 tools optional. Tools can be 450 mm long and 25 kg in the 50-size tapers. Tool change is 3.5 s tool to tool; the high-speed change listed for the larger models is not offered here.
The brochure covers the MCH630i, 800i and 1000i together and lists six spindle units for the range, from ISO 50 at 8,000 rpm with 20 / 30 kW and 306 / 458 Nm to an HSK-A63 unit at 18,000 rpm. Confirm with the maker which of them are offered on this size.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 750 mm (29.5 in) |
| Y Axis Travel | 700 mm (27.6 in) |
| Z Axis Travel | 770 mm (30.3 in) |
| B Axis Range | 360° |
| Cutting Feed Rate | 50 m/min |
| Rapid Traverse Xyz | 50 m/min |
| Acceleration | 5 m/s2 |
| B Axis Speed Worm Gear | 8 rpm |
| B Axis Speed Torque Motor | 38 rpm |
| B Axis Torque Worm Transmission | 2,160 Nm (1,593 lb-ft) |
| B Axis Torque Torque Motor | 1,310 Nm (966 lb-ft) |
| Distance Spindle Nose to Rotary Table Axis | 130 - 900 mm (5.1 - 35.4 in) |
| Distance Spindle Axis to Pallet | 50 - 750 mm (2.0 - 29.5 in) |
| Pallet Height From Floor | 1,100 mm (43.3 in) |
| Axial Force X | 15 kN |
| Axial Force Y | 8 kN |
| Axial Force Z | 10 kN |
| Positioning Accuracy | 0.008 mm (ISO 230-2) |
| Repeatability | 0.0034 mm (ISO 230-2) |
| B Axis Positioning Accuracy | 6 arc sec |
| B Axis Repeatability | 3 arc sec |
| Number of Pallets | 2 |
| Pallet Change Time | 10 s |
| Pallet Size | 630 × 630 mm (24.8 × 24.8 in) |
| Max Pallet Load | 800 kg (1,764 lb) (with clamping fixture) |
| Max Workpiece Size | ø 750 × 800 mm (ø 29.5 × 31.5 in) (dia × height) |
| Rotary Table Locking Torque | 4,000 Nm (2,950 lb-ft) |
| Tool Capacity | 60 (80, 100, 120 optional) |
| Tool Change Time | 3.5 s (standard speed, tool weight > 8 kg) |
| Max Tool Diameter (full magazine) | 125 mm (4.9 in) with adjacent tools; 250 mm (9.8 in) without adjacent tools |
| Max Tool Length | 450 mm (17.7 in) |
| Max Tool Weight | 25 kg (55 lb) SK50 and HSK100; 8 kg (18 lb) SK40 and HSK63, including holder |
| Max Weight of All Tools | 850 kg (1,874 lb) |
| Spindle Unit Iso 50 8000 RPM 30 Kw | 8,000 rpm; 20 / 30 kW (26.8 / 40.2 hp); 306 / 458 Nm (226 / 338 lb-ft) |
| Spindle Unit Iso 50 8000 RPM 43 Kw | 8,000 rpm; 28 / 43 kW (37.5 / 57.7 hp); 342 / 526 Nm (252 / 388 lb-ft) |
| Spindle Unit Iso 50 4500 RPM 25 Kw | 4,500 rpm; 17 / 25 kW (22.8 / 33.5 hp); 893 / 1,313 Nm (659 / 968 lb-ft) |
| Spindle Unit Iso 50 4500 RPM 46 Kw | 4,500 rpm; 33 / 46 kW (44.3 / 61.7 hp); 990 / 1,387 Nm (730 / 1,023 lb-ft) |
| Spindle Unit HSK A63 18000 RPM | 18,000 rpm; 25 / 31 kW (33.5 / 41.6 hp); 160 / 200 Nm (118 / 148 lb-ft) |
| Spindle Unit HSK A100 14000 RPM | 14,000 rpm; 25 / 37 kW (33.5 / 49.6 hp); 160 / 236 Nm (118 / 174 lb-ft) |
| Machine Dimensions | 5,800 × 3,140 × 3,260 mm (228.3 × 123.6 × 128.3 in) |
| Transport Dimensions | 4,850 × 2,570 × 2,760 mm (190.9 × 101.2 × 108.7 in) |
| Machine Weight | 17,000 kg (37,478 lb); transporting 14,000 kg (30,864 lb) |
Specifications sourced from tajmac-zps.cz — verified 2026-10-04
Strengths & Limitations
Strengths
- 10 s pallet change time with a two-pallet changer as standard equipment
- 50 m/min rapid traverse and working feed on X, Y and Z with 5 m/s2 acceleration
- Direct measuring in all axes; 0.008 mm positioning error and 6 arc sec on the B axis
- 60-tool cassette magazine as standard, expandable to 80, 100 or 120 tools
- Compact for a twin-pallet horizontal: 5,800 × 3,140 × 3,260 mm layout
Limitations
- Pallet load is 800 kg (1,764 lb) including the fixture
- Axial forces of 15 kN, 8 kN and 10 kN are well below the 20 kN, 10.5 kN and 20 kN of the MCH800i
- Tool length is limited to 450 mm (17.7 in) and tool weight to 25 kg (55 lb)
- No high-speed tool change; the 2 s figure applies only to the larger models
- The optional torque-motor table has 1,310 Nm, less than the 2,160 Nm of the standard worm drive
Best For
Frequently Asked Questions
01
The pallet is 630 × 630 mm and carries 800 kg including the clamping fixture. The maximum workpiece is ø 750 × 800 mm (diameter × height). Travels are 750 mm in X, 700 mm in Y and 770 mm in Z, and the spindle nose sits 130 - 900 mm from the rotary table axis.
02
10 s. The automatic pallet changer holds two pallets and transfers them by a hydraulic turntable, so one workpiece can be clamped, unclamped or measured in the clamping station while the other is machined. The pallet is held on the rotary table by four hydraulic clamps.
03
The standard rotary table uses a worm gear: 8 rpm maximum speed and 2,160 Nm maximum torque. The optional torque motor raises speed to 38 rpm with 1,310 Nm. Rotary table locking torque is 4,000 Nm. B-axis positioning error is 6 arc sec and repeatability 3 arc sec.
04
The range brochure lists ISO 50 units at 8,000 rpm (20 / 30 kW or 28 / 43 kW) and 4,500 rpm (17 / 25 kW or 33 / 46 kW), an HSK-A63 unit at 18,000 rpm and an HSK-A100 unit at 14,000 rpm. All spindle units have a rotary supply for coolant or air through the spindle axis. The list is not broken down by model.
05
The weight row gives 17,000 (14,000) kg under the heading of transporting weight, so 14,000 kg is the figure for the transport condition. Transporting dimensions are 4,850 × 2,570 × 2,760 mm and the installed layout is 5,800 × 3,140 × 3,260 mm.
