STV CNC STVR5

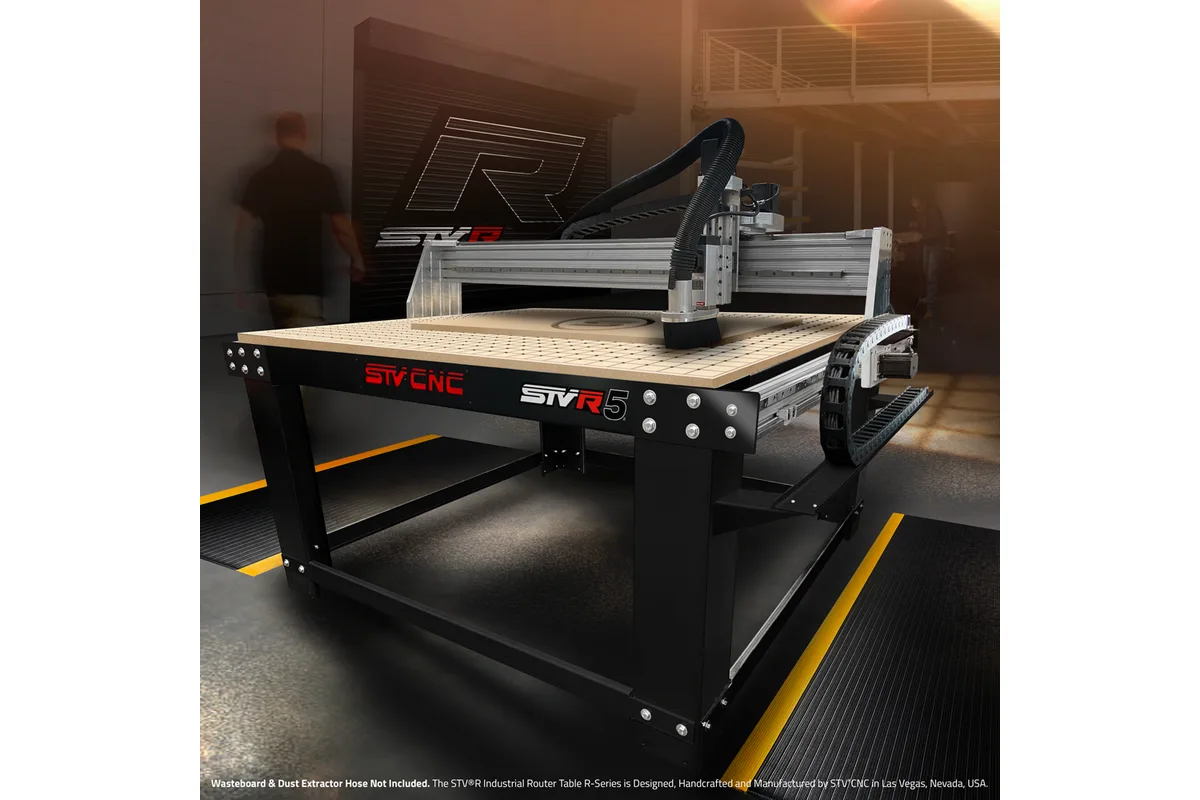

Image: stvcnc.com, STV CNC
Key Specifications
Max Spindle
Spindle Power
cutting area
x axis travel
y axis travel
z axis travel
How much does the STV CNC STVR5 cost?
Price estimate
We do not have a price for the STV CNC STVR5 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
With 60 in of travel in both X and Y, the STV CNC STVR5 is the square 5 ft x 5 ft table among STV CNC's modular routers. Z travel is 5.75 in. The frame is a laser cut kit that the owner assembles, and the table comes with a 2.2 kW (3 HP), 24,000 rpm spindle.
Assembly is the owner's job. STV CNC ships the laser cut frame as a modular kit, with leg braces below and slotted cross braces on top to take the wasteboard. Once it is built, the gantry and the spindle carriage ride hardened and ground linear rails on every axis, with rack and pinion on X and Y and a ball lead screw on Z. The four motors are direct drive at 1:1. Listed figures are 600 in/min for default maximum travel speed, plus or minus 0.005 in per 12 in for motion accuracy and 0.0005 in for step resolution. A buyer who wants the 3:1 gear reduction adds it as an upgrade, or looks at the welded STVR5 PRO, where it is standard.
The square 60 in bed is wide enough for 5 ft material, which the 4 ft wide tables of the range cannot take, and it lets a part be turned either way on the board. A 5 x 10 sheet still has to be halved first. With 5.75 in of maximum Z travel shared between the wasteboard, the stock and the tool, this is a table for sheet and slab work and not for tall parts.
The spindle is an air-cooled 2.2 kW (3 HP) unit that runs to 24,000 rpm, fed by a variable frequency drive with a 110 V single-phase input. It takes ER20 collets, and collets for 1/4 in and 1/2 in tools are included. There is no tool changer in the listing: bits are swapped by hand with two wrenches, which the owner supplies. A magnetic quick-release dust shoe with a 2.5 in port comes with the table. Control is STV CNC's own Optimum CNC software on a fanless Linux mini PC linked by Ethernet. The PC is included; the monitor, keyboard and mouse are not, and neither are the wasteboard or the dust extractor hose.
Full Specifications
| Parameter | Value |
|---|---|
| Cutting Area | 5 ft W x 5 ft L (1,524 x 1,524 mm) |
| X Axis Travel | 60 in (1,524 mm) |
| Y Axis Travel | 60 in (1,524 mm) |
| Z Axis Travel | 5.75 in (146 mm) maximum |
| Spindle Motor Power | 2.2 kW (3 HP) |
| Max Spindle Speed | 24,000 rpm |
| Spindle | Air-cooled, low-noise; 110 V asynchronous 3-phase motor |
| Collet | ER20; collets for 1/4 in and 1/2 in tools included |
| Vfd | Variable frequency drive, 110 V single-phase input, 110 V 3-phase output, 0-400 Hz |
| Frame | Laser cut modular frame with lower leg braces and upper cross braces; assembly required |
| Motor System | 4 motors, 1:1 direct drive gear ratio |
| Drive System | X and Y axes rack and pinion; Z axis billet precision ball lead screw |
| Linear Guides | Hardened and ground linear guide rails on all three axes |
| Motion Accuracy | +/- 0.005 in per 12 in (0.127 mm per 305 mm) |
| Step Resolution | 0.0005 in (0.013 mm) |
| Max Travel Speed | 600 in/min (15,240 mm/min), default maximum |
| CNC Control | Optimum CNC control software on an included fanless Linux mini PC |
| Controller Connectivity | Ethernet, 6 ft (1.8 m) cable |
| Dust Collection | Magnetic quick-release dust shoe with 2.5 in (64 mm) dust port |
| Table Surface | Slotted support braces for a wasteboard (wasteboard not included) |
| Power Requirement | 110 V AC, 15 A circuit |
Specifications sourced from stvcnc.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 2.2 kW (3 HP) air-cooled spindle, 24,000 rpm, with ER20 collets for 1/4 in and 1/2 in tools included
- Optimum CNC control on an included Linux mini PC, connected by Ethernet
- Specified for a 110 V AC, 15 A circuit; magnetic quick-release dust shoe with 2.5 in port included
- 60 in of X travel takes 5 ft wide material
Limitations
- The frame is a modular kit that the owner has to assemble
- Wasteboard, dust extractor hose, monitor, keyboard and mouse are not included
- Neither a 4 x 8 nor a 5 x 10 sheet fits whole
Best For
Frequently Asked Questions
01
5 ft W x 5 ft L. X and Y travel are 60 in each and maximum Z travel is 5.75 in. Material 5 ft wide fits, which it does not on the narrower tables in the range.
02
An air-cooled 2.2 kW (3 HP) spindle with a speed of 24,000 rpm, run by a variable frequency drive with a 110 V single-phase input. It uses ER20 collets, and collets for 1/4 in and 1/2 in tools are included. Bits are changed by hand with two wrenches.
03
04
STV CNC's Optimum CNC control software, installed on a mini PC that comes with the table and connects by Ethernet. It accepts TAP, TXT, NC, DNC, ISO and CNC files. A monitor, keyboard and mouse have to be supplied by the owner, and design files are prepared on a separate computer.
