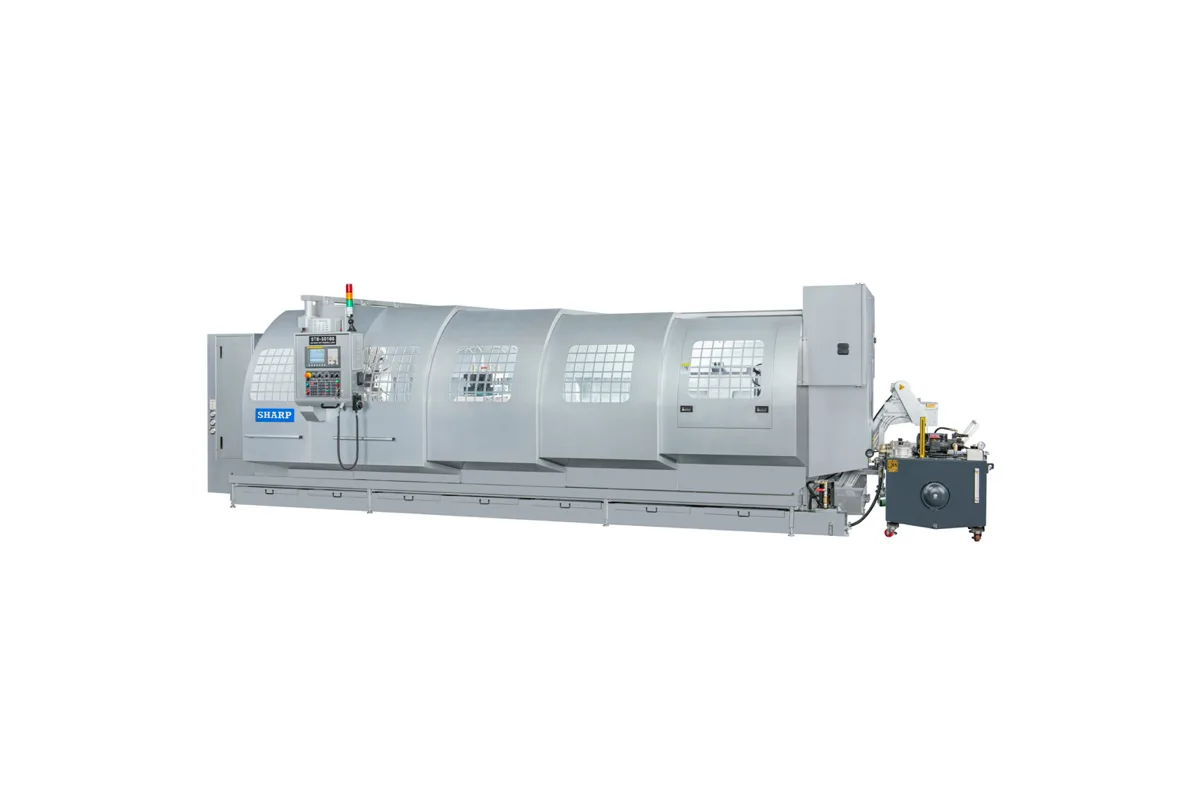

Sharp STB-60
Image: sharp-industries.com, Sharp
Key Specifications
Spindle Power
swing over bed
swing over cross slide
distance between centers
spindle bore
control
How much does the Sharp STB-60 cost?
Price estimate
We do not have a price for the Sharp STB-60 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
At 59.84 in (1520 mm) over the bed, the Sharp STB-60 is a big bore flat bed CNC lathe for flanges, rings and pipe too large for the STB-55. Swing over the cross slide is 43.31 in (1100 mm), and the headstock is raised to suit: machine height goes to 91.3 in (2,320 mm), the first STB size above the 89.4 in (2,270 mm) of the STB-55.
Nothing about the drive grows with the swing. The spindle motor is the same 30 hp unit, with 40 hp or 50 hp optional, and the gearbox changes through four speed steps by M code. On a 59.84 in part the surface speed at the rim is high even at low rpm, so the practical question for a buyer is torque at the bottom of the range. Sharp's table gives no spindle speed or torque figures; ask for the speed chart of each gear step.
The STA-60 offers the same bed swing on a 24 in (610 mm) bed with 45.66 in (1160 mm) over the cross slide. The STB-60 trades some of that clearance for a 31.89 in (810 mm) bed and 27.56 in (700 mm) of X travel; X travel on the STA-60 is 23.62 in (600 mm).
Lengths run from the STB-6060 at 59.06 in (1,500 mm) between centers to the STB-60240 at 236.22 in (6,000 mm), and weights from 34,600 lb (15,700 kg) to 46,500 lb (21,100 kg).
Full Specifications
| Parameter | Value |
|---|---|
| Swing Over Bed | 59.84 in (1520 mm) |
| Swing Over Cross Slide | 43.31 in (1100 mm) |
| Distance Between Centers | STB-6060: 59.06 in (1,500 mm); STB-6080: 78.74 in (2,000 mm); STB-60120: 118.1 in (3000 mm); STB-60160: 157.48 in (4,000 mm); STB-60200: 196.85 in (5,000 mm); STB-60240: 236.22 in (6,000 mm) |
| Spindle Bore | 6 in (152 mm) 9 in (230 mm) 10 in (255 mm) 12 in (305 mm) 15 in (380 mm) |
| CNC Control | FANUC Oi-TF |
| Bed Way Type | 2 V, 2 Flat Ways |
| Bed Width | 31.89 in (810 mm) |
| Bed Length | STB-6060: 155.91 in (3960 mm); STB-6080: 175.59 in (4460 mm); STB-60120: 214.96 in (5460 mm); STB-60160: 254.33 in (6460 mm); STB-60200: 293.70 in (7460 mm); STB-60240: 333.07 in (8460 mm) |
| X Axis Travel | 27.56 in (700 mm) |
| Z Axis Travel | STB-6060: 45.28 in (1150 mm); STB-6080: 64.96 in (1650 mm); STB-60120: 104.33 in (2650 mm); STB-60160: 143.70 in (3650 mm); STB-60200: 183.07 in (4650 mm); STB-60240: 222.44 in (5650 mm) |
| X Axis Ballscrew Diameter | 1.57 in (40 mm) |
| Z Axis Ballscrew Diameter | 2.48 in (63 mm) |
| Spindle Motor Power | 30 hp (STD Fanuc Alpha 22) Opt: 40 hp or 50 hp |
| X Axis Motor | 5.3 hp (Fanuc AC servo) |
| Z Axis Motor | STB-6060: 5.3 hp (Fanuc AC servo); STB-6080: 5.3 hp (Fanuc AC servo); STB-60120: 5.3 hp (Fanuc AC servo); STB-60160: 9.3 hp (Fanuc AC servo); STB-60200: 9.3 hp (Fanuc AC servo); STB-60240: 9.3 hp (Fanuc AC servo) |
| Hydraulic Pump Motor | 2 hp (1.5 kW) |
| Coolant Pump Motor | 1.7 hp (1.27 kW) |
| Machine Weight | STB-6060: 34,600 lb (15,700 kg); STB-6080: 35,900 lb (16,300 kg); STB-60120: 38,500 lb (17,500 kg); STB-60160: 41,200 lb (18,700 kg); STB-60200: 43,800 lb (19,900 kg); STB-60240: 46,500 lb (21,100 kg) |
| Machine Length | STB-6060: 229.0 in (5,816 mm); STB-6080: 248.7 in (6,316 mm); STB-60120: 288.0 in (7,316 mm); STB-60160: 327.4 in (8,316 mm); STB-60200: 366.8 in (9,316 mm); STB-60240: 406.1 in (10,316 mm) |
| Machine Width | 122.0 in (3,100 mm) |
| Machine Height | 91.3 in (2,320 mm) |
Specifications sourced from sharp-industries.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 59.84 in (1520 mm) swing over the bed
- 43.31 in (1100 mm) clear over the cross slide
- 27.56 in (700 mm) X travel, more than the 23.62 in (600 mm) of the STA-60
- Gears and shafts of hardened and ground alloy steel, spindle of forged chrome alloy material
- Spindle chiller available as an option for long cuts
Limitations
- No spindle speed range or torque is published in the table
- Motor stays at 30 hp standard on a 59.84 in swing
- Cross slide clearance is under the 45.66 in (1160 mm) of the STA-60
- Height of 91.3 in (2,320 mm) before any overhead handling
Best For
Frequently Asked Questions
01
Up to 59.84 in (1520 mm) over the bed and 43.31 in (1100 mm) over the cross slide. Between centers the six beds give 59.06 in (1,500 mm) to 236.22 in (6,000 mm), with Z-axis travel of 45.28 in (1150 mm) on the shortest and 222.44 in (5650 mm) on the longest.
02
30 hp as standard, from a Fanuc Alpha 22 motor, with 40 hp or 50 hp listed as options. Speed is changed through four steps automatically by M code. Sharp does not publish the rpm range or the torque for this model on its product page.
03
Both swing 59.84 in (1520 mm). The STA-60 clears 45.66 in (1160 mm) over the cross slide, has a 24 in (610 mm) bed and 23.62 in (600 mm) of X travel. The STB-60 clears 43.31 in (1100 mm), has a 31.89 in (810 mm) bed and 27.56 in (700 mm) of X travel. Shortest beds compared, the STB-60 weighs 34,600 lb (15,700 kg) and the STA-60 weighs 29,700 lb (13,472 kg).
04
The standard accessory list names the Fanuc Oi TF controller, flat belt conveyor, four-step automatic spindle speed change, X/Z axes auto lubrication, coolant system, Turcite-B slideways, C3 ballscrews and a manual tailstock, MT 6. Turrets, the rear chuck adapter and the spindle chiller are options.
