Sharp STA-55

Q: How much does the Sharp STA-55 cost?

The price estimate for the Sharp STA-55 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/sharp-sta-55#price; the request is passed to Sharp or an authorised dealer.

Specs verified 2026-10-04 · sharp-industries.com Updated 2026-10-04

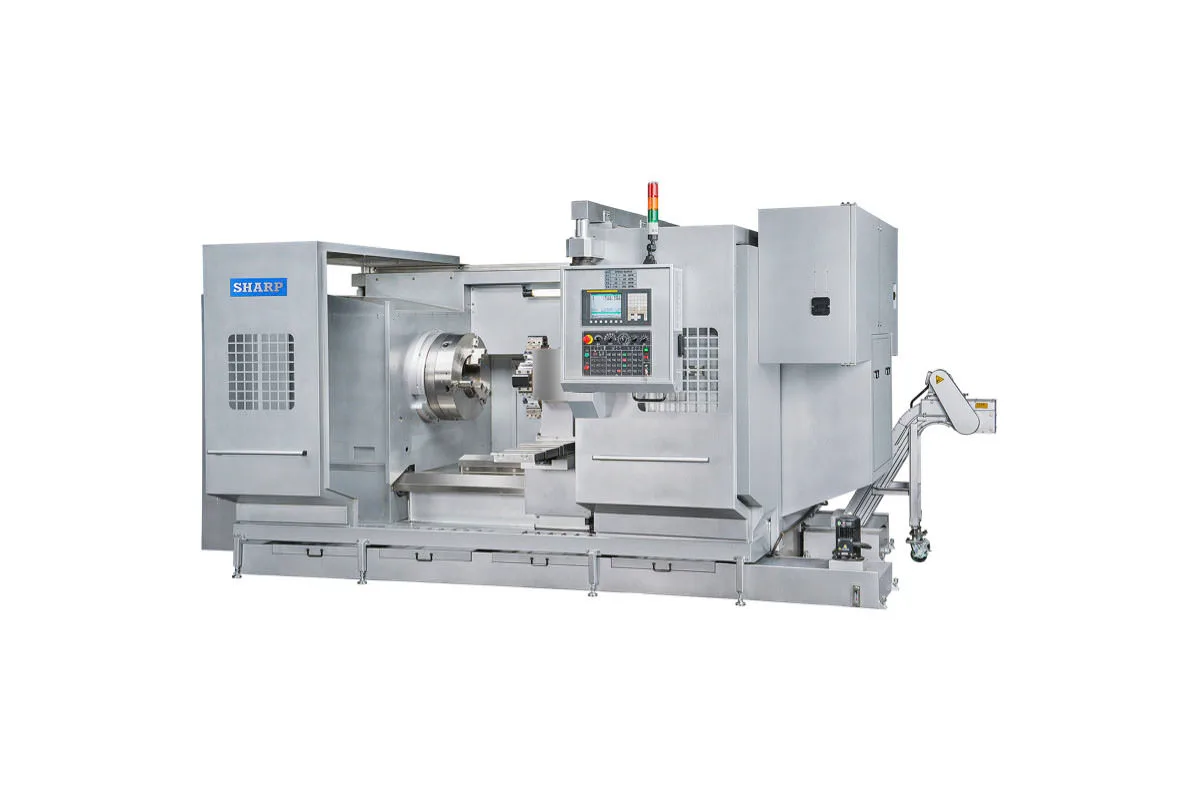

Sharp STA series big bore CNC lathe (series photo shown on the STA-55 page)

Image: sharp-industries.com, Sharp

Key Specifications

Spindle Power

30 hp (STD Fanuc Alpha 22) Opt: 40 hp or 50 hp

swing over bed

55.90 in (1420 mm)

swing over cross slide

41.73 in (1060 mm)

distance between centers

STA-5560: 59.06 in (1,500 mm); STA-5580: 78.74 in (2,000 mm); STA-55120: 118.11 in (3000 mm); STA-55160: 157.48 in (4,000 mm); STA-55200: 196.85 in (5,000 mm); STA-55240: 236.22 in (6,000 mm)

spindle bore

6 in (152 mm) 9 in (230 mm) 10 in (255 mm) 12 in (305 mm) 15 in (380 mm)

control

FANUC Oi-TF

How much does the Sharp STA-55 cost?

Price estimate

Uncertain

We do not have a price for the Sharp STA-55 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

With 55.90 in (1420 mm) over the bed, the Sharp STA-55 sits one step below the top of the STA big bore CNC lathe range. Its place in the line is easiest to see in the swing over the cross slide, 41.73 in (1060 mm), since that is the diameter that can travel the length of a long part.

A shop choosing between neighbours should look at three rows. Against the STA-50 this model gains cross-slide swing, going from 37.79 in (960 mm) to 41.73 in. It stands 95.3 in (2,420 mm) high. And each bed length carries a little more iron: the STA-5560 weighs 29,000 lb (13,154 kg) and the STA-55240 38,900 lb (17,645 kg). Everything else in Sharp's table is common to both, including the 23.62 in (600 mm) X travel.

That X figure limits facing. A tool cannot sweep from the center of a 55.90 in face to its rim in one pass of the cross slide, so large faces may need the tool re-positioned on the turret or a different turret altogether. Sharp says X travel varies with the turret installed and offers 4-way, V-8 and V-12 hydraulic turrets as options.

The usual STA equipment applies: a 30 hp spindle motor with 40 hp and 50 hp options, bores of 6 in to 15 in, a FANUC Oi-TF control and six beds from 59.06 in (1,500 mm) to 236.22 in (6,000 mm) between centers. The servo on the Z axis is 5.3 hp on the shortest bed and 9.3 hp on the longest.

Full Specifications

Parameter	Value
Swing Over Bed	55.90 in (1420 mm)
Swing Over Cross Slide	41.73 in (1060 mm)
Distance Between Centers	STA-5560: 59.06 in (1,500 mm); STA-5580: 78.74 in (2,000 mm); STA-55120: 118.11 in (3000 mm); STA-55160: 157.48 in (4,000 mm); STA-55200: 196.85 in (5,000 mm); STA-55240: 236.22 in (6,000 mm)
Spindle Bore	6 in (152 mm) 9 in (230 mm) 10 in (255 mm) 12 in (305 mm) 15 in (380 mm)
CNC Control	FANUC Oi-TF
Bed Way Type	2 V, 2 Flat Ways
Bed Width	24 in (610 mm)
Bed Length	STA-5560: 135.83 in (3450 mm); STA-5580: 155.51 in (3950 mm); STA-55120: 194.88 in (4950 mm); STA-55160: 234.25 in (5950 mm); STA-55200: 273.62 in (6900 mm); STA-55240: 312.99 in (7950 mm)
X Axis Travel	23.62 in (600 mm)
Z Axis Travel	STA-5560: 41.34 in (1,050 mm); STA-5580: 61.02 in (1,550 mm); STA-55120: 100.39 in (2,550 mm); STA-55160: 139.76 in (3,550 mm); STA-55200: 179.13 in (4,550 mm); STA-55240: 218.5 in (5,550 mm)
X Axis Ballscrew Diameter	1.25 in (32 mm)
Z Axis Ballscrew Diameter	2.48 in (63 mm)
Spindle Motor Power	30 hp (STD Fanuc Alpha 22) Opt: 40 hp or 50 hp
X Axis Motor	5.3 hp (Fanuc AC servo)
Z Axis Motor	STA-5560: 5.3 hp (Fanuc AC servo); STA-5580: 5.3 hp (Fanuc AC servo); STA-55120: 5.3 hp (Fanuc AC servo); STA-55160: 9.3 hp (Fanuc AC servo); STA-55200: 9.3 hp (Fanuc AC servo); STA-55240: 9.3 hp (Fanuc AC servo)
Hydraulic Pump Motor	2 hp (1.5 kW)
Coolant Pump Motor	1.7 hp (1.27 kW)
Machine Weight	STA-5560: 29,000 lb (13,154 kg); STA-5580: 30,100 lb (13,653 kg); STA-55120: 32,300 lb (14,651 kg); STA-55160: 34,500 lb (15,649 kg); STA-55200: 36,700 lb (16,647 kg); STA-55240: 38,900 lb (17,645 kg)
Machine Length	STA-5560: 208.5 in (5,295 mm); STA-5580: 228.1 in (5,795 mm); STA-55120: 267.5 in (6,795 mm); STA-55160: 306.9 in (7,795 mm); STA-55200: 346.3 in (8,795 mm); STA-55240: 385.6 in (9,795 mm)
Machine Width	107.7 in (2,735 mm)
Machine Height	95.3 in (2,420 mm)

Specifications sourced from sharp-industries.com — verified 2026-10-04

Strengths & Limitations

Strengths

41.73 in (1060 mm) swing over the cross slide
55.90 in (1420 mm) swing over the bed
Bores to 15 in (380 mm) for large pipe through the headstock
Weight of 29,000 lb (13,154 kg) to 38,900 lb (17,645 kg) across the six lengths
9.3 hp Z-axis servo on the longest bed

Limitations

X travel of 23.62 in (600 mm) cannot face a full 55.90 in diameter in one pass
Height rises to 95.3 in (2,420 mm)
Bed width remains 24 in (610 mm)
Chucks and steady rests over 16" are options in different sizes

Best For

Long rolls and pipe up to 41.73 in over the cross slide Large couplings and casing with bores up to 15 in Flange facing with an optional V-8 or V-12 turret Shops that need more clearance than the STA-50 gives

Frequently Asked Questions

01 How does the STA-55 compare with the STA-50?

Swing over the bed is 55.90 in (1420 mm) against 51.97 in (1320 mm) on the STA-50, and swing over the cross slide 41.73 in (1060 mm) against 37.79 in (960 mm). The STA-55 is 95.3 in (2,420 mm) high where the STA-50 is 93.3 in (2,370 mm). Bed, bores, motors and lengths are the same.

02 What turrets does Sharp offer for the STA-55?

All are options: a hydraulic 4-way turret, a hydraulic V-8 turret and a hydraulic V-12 turret, the last two supplied with boring toolholders, a facing toolholder and a turret sleeve according to Sharp's STA accessory list. X travel of 23.62 in (600 mm) varies with the turret chosen.

03 What lengths of work can the STA-55 take?

Distance between centers is 59.06 in (1,500 mm) on the STA-5560 and 236.22 in (6,000 mm) on the STA-55240, with four lengths between. Z-axis travel is shorter than the center distance, from 41.34 in (1,050 mm) to 218.5 in (5,550 mm).

04 Can long pipe be held at both ends of the spindle?

Yes, with options. Sharp states that double chucks are available for holding extra long and large pipes, and lists a rear chuck adapter among the optional accessories. Chucks themselves, in 3 jaw, 4 jaw and hydraulic types, are also options.
