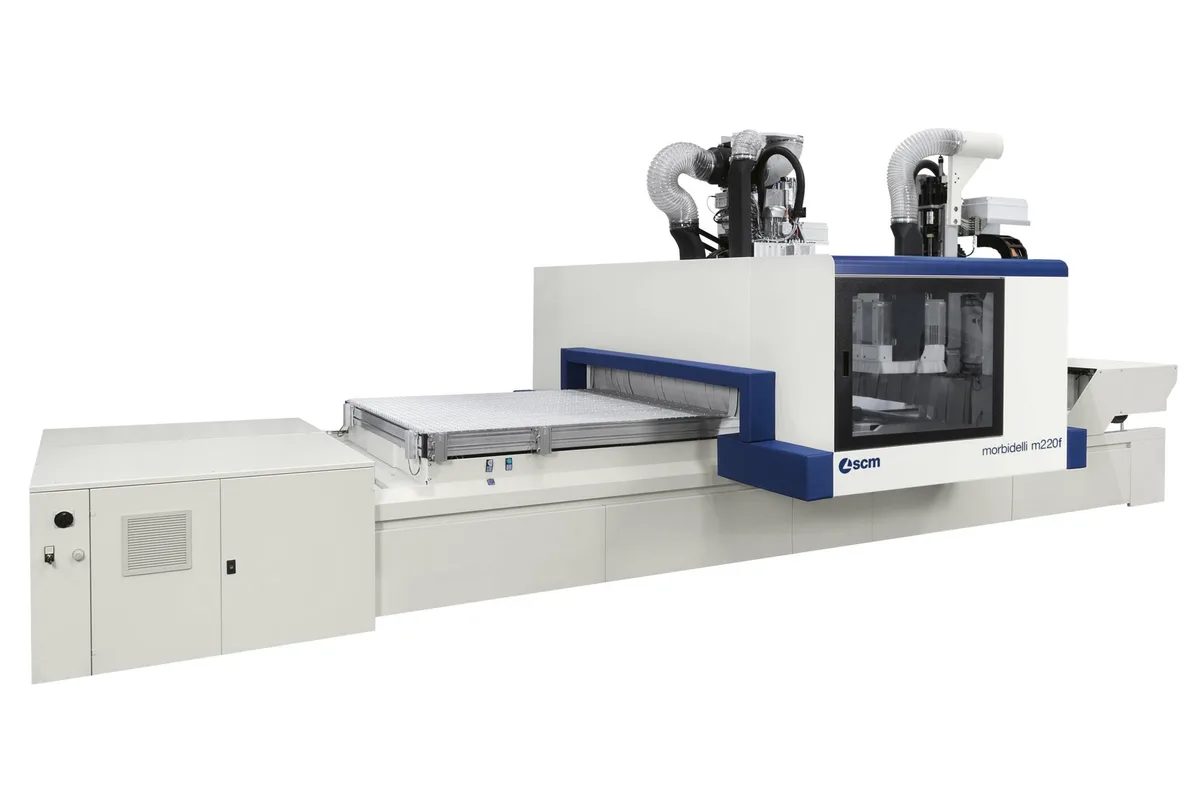

SCM Morbidelli M220F
Image: scmgroup.com, SCM
Key Specifications
Tool Capacity
Spindle Power
working areas xy
working area x
working area y
vectorial speed
How much does the SCM Morbidelli M220F cost?
Price estimate
We do not have a price for the SCM Morbidelli M220F that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The SCM Morbidelli M220F pairs a flat aluminium multi-function work table with the heaviest drilling equipment of the M models. Two drilling heads with independent Y axes carry up to 34 independent vertical spindles and 22 independent horizontal spindles between them.
On a nested sheet of cabinet parts, the cutting is quick and the drilling is what takes time. Every side panel needs its rows of shelf-pin and fitting holes. Here the two heads can work on one panel together or on 2 different panels, which SCM says cuts drilling cycles by 70%. Treat that as the maker's figure for a favourable pattern. The 2 integrated blades in X handle back-panel grooves.
Sheet size is the constraint. All three working areas share a 1,620 mm (63.8 in) Y: 3110x1620 mm, 3710x1620 mm and 5510x1620 mm. Z axis panel passage is 180 mm (7.1 in). Vectorial speed is 56 m/min in the Pro-Space version, which has no perimetral protections, and 78 m/min in Pro-Speed.
The routing unit is rated at up to 15 kW (20.5 hp) and 24000 rpm, and the tool changer takes up to 60 places. Optional units in the table are a 0-90° blade unit of up to 2.2 kW (3 hp) and an auxiliary routing unit of up to 4.5 kW (6 hp) at 18000 rpm. The bar-table twin is the Morbidelli M220.
Full Specifications
| Parameter | Value |
|---|---|
| Working Areas Xy | 3110x1620 mm / 3710x1620 mm / 5510x1620 mm |
| Working Area X | 3,110 mm (122.4 in), 3,710 mm (146.1 in), 5,510 mm (216.9 in) |
| Working Area Y | 1,620 mm (63.8 in) |
| Vectorial Speed | 56 m/min (Pro-Space) / 78 m/min (Pro-Speed) |
| Z Axis Panel Passage | 180 mm (7.1 in) |
| Spindle Motor Power | 15 kW (20.5 hp) max. |
| Spindle Speed | 24000 rpm |
| Tool Capacity | 60 places max. (available tools on tool changer) |
| Drilling Vertical Spindles | 34 independent vertical spindles max. |
| Drilling Horizontal Spindles | 22 independent horizontal spindles max. |
| Drilling Rotation Speed Max | 8000 rpm |
| Integrated Blades in X | 2 |
| Blade Unit 0 90 Power | 2.2 kW (3 hp) max. (0-90° blade unit) |
| Blade Unit 0 90 Speed | 6000 rpm max. |
| Auxiliary Routing Unit Power | 4.5 kW (6 hp) max. |
| Auxiliary Routing Unit Speed | 18000 rpm max. |
Specifications sourced from scmgroup.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Up to 34 independent vertical and 22 independent horizontal drilling spindles on two heads
- Flat aluminium multi-function work table that is also suited to nesting
- Tool changer with up to 60 places
- 2 integrated blades in X for grooving without a tool change
Limitations
- Y is fixed at 1,620 mm (63.8 in), so wider sheets do not fit
- Panel passage of 180 mm (7.1 in); the Morbidelli M100/200F lists 250 mm (9.8 in) (m200 f)
- Vectorial speed tops out at 78 m/min, against 127 m/min on the Morbidelli M600/800F
Best For
Frequently Asked Questions
01
Its double drilling head. SCM lists up to 34 independent vertical spindles and 22 independent horizontal spindles, on heads with independent Y axes that can machine a single panel simultaneously or 2 different panels.
02
An aluminium multi-function work table. SCM states that it is designed to maintain a perfect planarity over time and that it is ideal also for nesting machining. The Morbidelli M220 is the version with a bar work table.
03
Working areas are 3110x1620 mm, 3710x1620 mm and 5510x1620 mm with a Z axis panel passage of 180 mm (7.1 in). Vectorial speed is 56 m/min for Pro-Space and 78 m/min for Pro-Speed.
04
A main routing unit of up to 15 kW (20.5 hp) at 24000 rpm with up to 60 places on the tool changer, an auxiliary routing unit of up to 4.5 kW (6 hp) at 18000 rpm, and a 0-90° blade unit of up to 2.2 kW (3 hp) at 6000 rpm.
