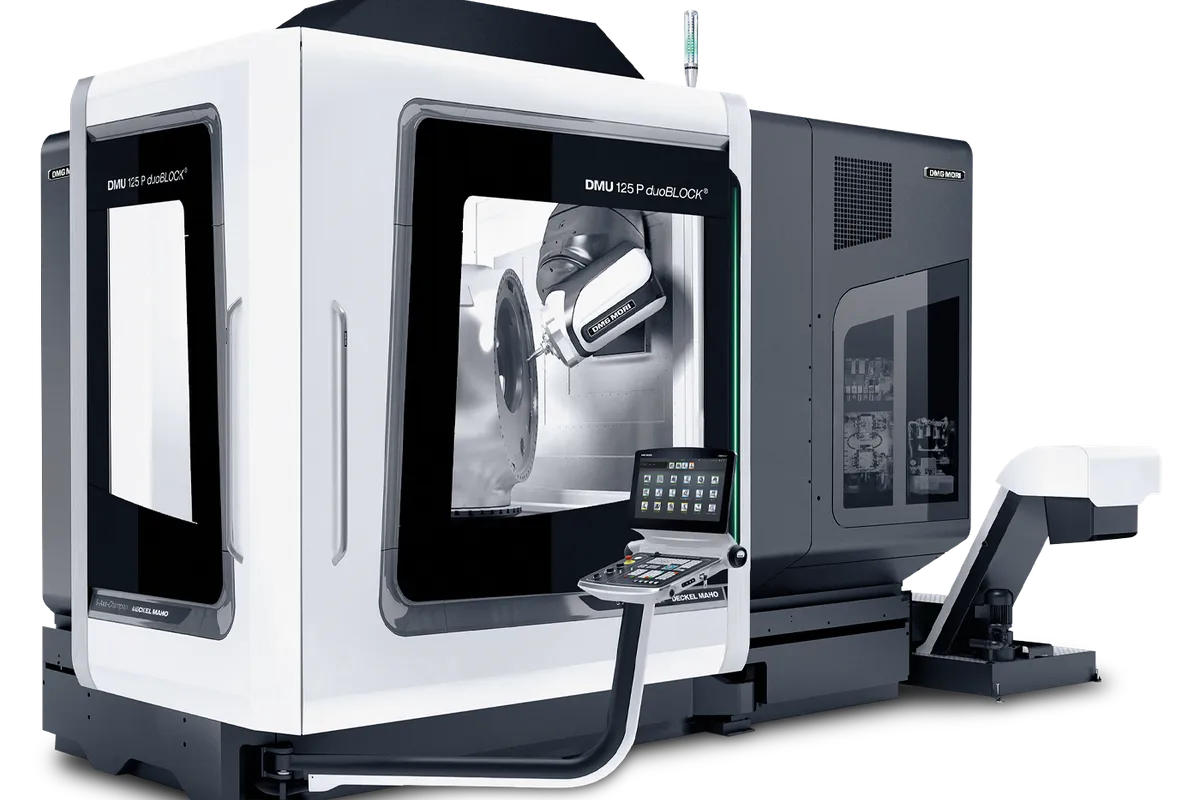

DMG Mori DMU 125 P duoBLOCK

The DMG Mori DMU 125 P duoBLOCK steps up from the DMU 100 P with a larger work envelope and heavier table load, targeting shops that machine medium-to-large aerospace structures, mold bases, and power generation components. Travel of 1,250 x 1,250 x 1,000 mm (49.2 x 49.2 x 39.4 in) with a square X-Y footprint gives programmers more flexibility for indexing large parts without fixture gymnastics.

Table load capacity jumps to 2,800 kg (6,173 lb) in standard configuration, or 2,600 kg (5,732 lb) in the FD mill-turn variant. That is serious payload capability for a 5-axis machine. Shops can clamp large titanium forgings, cast iron pump housings, or multi-cavity mold blocks and machine all five sides in a single setup without worrying about overloading the rotary table.

The duoBLOCK construction carries over from the rest of the lineup: thermosymmetric casting design, three guide ways on the Y-axis, and water-cooled feed drives on all linear axes. This gives the DMU 125 P the rigidity to sustain heavy cuts in hard materials without sacrificing surface finish quality needed for finishing passes. The B-axis swivels through 210 degrees (-30 to +180), and the C-axis provides 360-degree continuous rotation with direct-drive motors.

Spindle options mirror the duoBLOCK family. The powerMASTER 1000 motor spindle delivers 77 kW (103 hp) and 1,000 Nm (737 ft-lb) at up to 12,000 RPM through HSK-A100. The 5X torqueMASTER gear spindle pushes to 1,300 Nm (1,328 ft-lb) at 52 kW (70 hp) for maximum material removal. The FD variant adds direct-drive table rotation up to 500 RPM for combined mill-turn operations.

Maximum workpiece diameter reaches 1,250 mm (49.2 in) with a height of 1,600 mm (63 in), accommodating tall aerospace structural components and deep mold cavities. The tool magazine scales to 453 pockets with 5.6-second tool changes. Both SIEMENS SINUMERIK ONE and HEIDENHAIN TNC7 controls are available with CELOS X integration.

For shops already running the DMU 100 P that find themselves constrained on X-travel or table load, the 125 P provides 25% more X-travel and 27% more load capacity. The additional rigidity from the larger castings makes this the pick for sustained heavy roughing cycles on large workpieces. Specs sourced from DMG Mori published data.
