Haas Automation 5-Axis Machining Centers

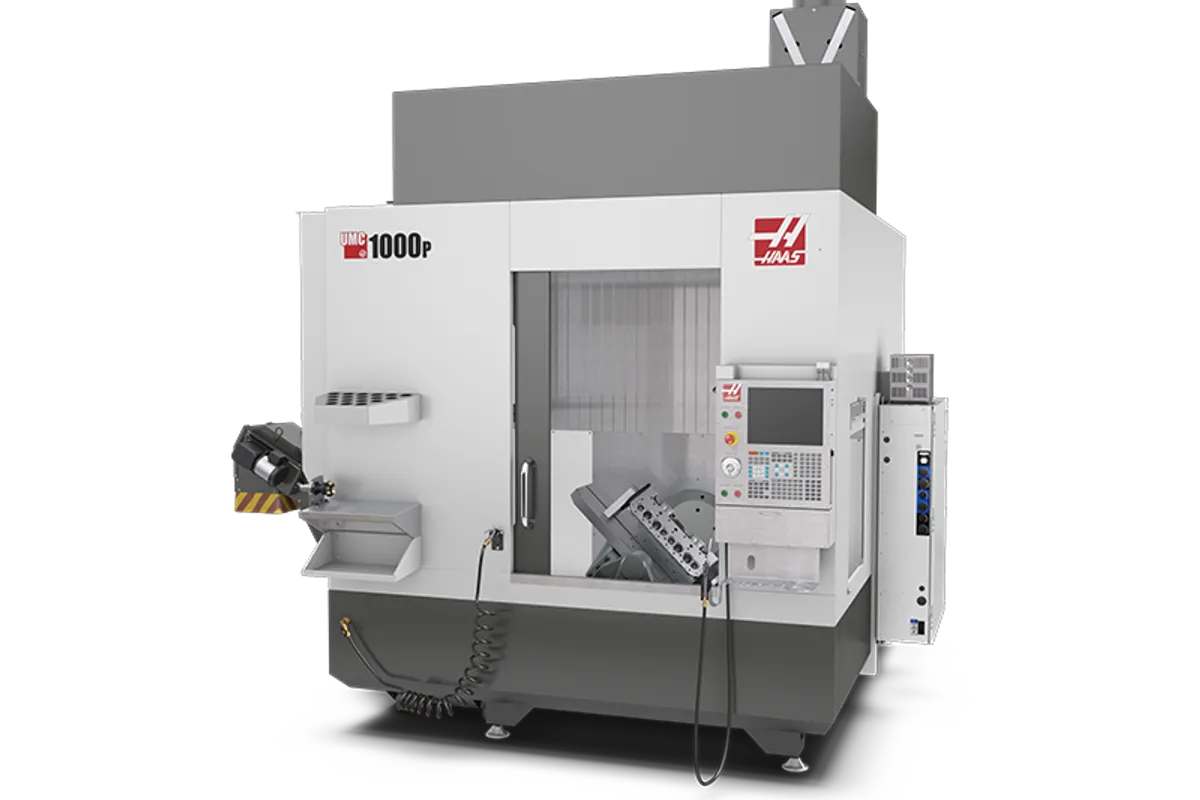

Haas UMC-1000-P

$200,000 - $290,000 Updated 2026-03-19

Key Specifications

X Travel

1,016 mm (40 in)

Y Travel

635 mm (25 in)

Z Travel

635 mm (25 in)

Max Spindle

8100 rpm

Spindle Taper

CT/BT 40 (HSK-A63 optional)

Tool Capacity

30+1 SMTC (50+1 optional)

Overview

The Haas UMC-1000-P adds integrated pallet changing to the proven UMC-1000 platform, creating a 5-axis machining cell capable of unattended production. With 1,016 x 635 x 635 mm (40 x 25 x 25 in) of travel, a dual-axis trunnion table, and an automatic pallet changer, it enables shops to load the next workpiece while the current part is being machined — a fundamental requirement for lights-out and lightly-attended 5-axis production.

The spindle is the standard UMC-1000 inline direct-drive unit: 22.4 kW (30 hp) with 122 Nm (90 ft-lbf) of torque, running to 8,100 RPM standard with 12,000 and 15,000 RPM options available. The CT/BT 40 taper accepts standard tooling, with HSK-A63 available as an option for shops demanding better tool clamping rigidity.

The trunnion table carries a 635 mm (25 in) platter with a reduced pallet pool capacity of approximately 90.7 kg (200 lb) per pallet — significantly less than the standard 454 kg (1,000 lb) platter load without the pallet system. This weight reduction is necessary because the pallet changer must handle the combined weight of pallet, fixture, and workpiece during exchange. The B-axis tilts from +120 to -35 degrees and the C-axis provides full 360-degree rotation.

The 30+1 SMTC delivers 2.8-second tool-to-tool and 3.6-second chip-to-chip times. Rapids run at 22.9 m/min (900 ipm) on all axes. The NGC control manages pallet exchange, tool management, and program scheduling for multi-pallet production runs.

At approximately $200,000-$290,000 configured, the UMC-1000-P costs more than the standard UMC-1000 but enables a fundamentally different operating mode. For shops running repeat 5-axis parts in sufficient volume to justify unattended production, the pallet system transforms the UMC-1000 from a manually-loaded job shop machine into a production cell. Specs sourced from Haas Automation published data.

Full Specifications

Parameter	Value
X-Axis Travel	1,016 mm (40 in)
Y-Axis Travel	635 mm (25 in)
Z-Axis Travel	635 mm (25 in)
Max Spindle Speed	8100 rpm
Spindle Taper	CT/BT 40 (HSK-A63 optional)
Spindle Motor Power	30.0 hp
Spindle Torque Max	122 Nm (90 ft-lbf)
Spindle Drive	Inline Direct-Drive
Spindle Cooling	Liquid Cooled
Tool Capacity	30+1 SMTC (50+1 optional)
Tool To Tool	2.80 s
Chip To Chip	3.60 s
Max Tool Diameter	2.5 in
Max Tool Weight	12.0 lb
Platter Diameter	635 mm (25 in)
Platter Load Max	454 kg (1,000 lb) standard
Platter Load Pallet Pool	90.7 kg (200 lb) per pallet
B Axis Tilt	S.A.E
C Axis Rotation	360°
Max Part Swing	11.9 in
Pallet System	Automatic pallet changer
Max Cutting Feedrate	16.5 m/min (650 ipm)
Rapid Traverse X	22.9 m/min (900 ipm)
Rapid Traverse Y	22.9 m/min (900 ipm)
Rapid Traverse Z	22.9 m/min (900 ipm)
Machine Weight	8,165 kg (18,000 lb)
CNC Control	Haas Next Generation Control (NGC)
Coolant Capacity	55 gal
Air Required	4 scfm @ 100 psi
Electrical Low	220 VAC 3-phase, 50 A
Electrical High	440 VAC 3-phase, 25 A
Travels	S.A.E
X Axis	40.00 in
Y Axis	25.00 in
Z Axis	25.00 in
Spindle Nose To Table	5.6 in
Spindle	S.A.E
Max Rating	30.0 hp
Max Speed	50 °/sec
Max Torque	90.0 ft-lbf @ 2000 rpm
Drive System	Inline Direct-Drive
Taper	CT40 \| BT40 \| HSK-A63
Bearing Lubrication	Air / Oil Injection
Cooling	Liquid Cooled
A Axis	S.A.E
Travel	45 ° to 45- °
Torque	2240 ft-lbf
Brake Torque	2000 ft-lbf
Table	S.A.E
Length	40.0 in
Width	15.0 in
T Slot Width	0.626 in to 0.630 in
Number Of Std T Slots	1
Max Weight On Table	350 lb
Feedrates	S.A.E
Max Cutting	650 ipm
Rapids On X	900 ipm
Rapids On Y	900 ipm
Rapids On Z	900 ipm
Axis Motors	S.A.E
Max Thrust X	3300 lbf
Max Thrust Y	3300 lbf
Max Thrust Z	4050 lbf
Tool Changer	S.A.E
Type	SMTC
Capacity	30+1
Max Tool Diameter Large	5.0 in
Max Tool Length	12.00 in
General	S.A.E
Air Requirements	S.A.E
Inline Air Hose	3/8 in
Coupler	3/8 in
Air Pressure Min	80 psi
Electrical Specification	S.A.E
Input Ac Voltage Low	220 VAC
Full Load Amps Low	70 A
Input Ac Voltage High	440 VAC
Full Load Amps High	35 A
Dimensions Shipping	S.A.E
Domestic Pallet	168.0 in x 94.0 in x 116.0 in
Export Pallet	165.0 in x 92.0 in x 101.0 in
Machine Weight	15600 lb
Export Crate W 701 Smtc	168.0 in x 95.0 in x 141.0 in
Domestic Pallet For Sheet Metal Crate	102 in x 63 in x 34 in
Export Pallet For Sheet Metal Crate	102 in x 63 in x 34 in
Weight For Sheet Metal Crate	1164 lb

Specifications sourced from haascnc.com — verified 2026-03-28

Strengths & Limitations

Strengths

Integrated pallet changer enables unattended and lightly-attended 5-axis production on the UMC-1000 platform
40-inch X travel and 25-inch trunnion diameter handle large 5-axis parts that exceed the UMC-750 envelope
Load next workpiece while current part is machining — eliminates load/unload downtime on repeat work
Same proven 30 HP spindle and 40x25x25-inch travel as the standard UMC-1000
NGC control manages pallet scheduling and tool management for multi-part production runs
Haas Factory Outlet support network keeps service response times predictable

Limitations

200 lb pallet pool capacity per pallet is severely limiting compared to the 1,000 lb standard platter load
Pallet system adds $40,000-$60,000 over the standard UMC-1000 — requires volume to justify
900 ipm rapids are slower than competing 5-axis pallet machines from Makino, Hermle, and DMG Mori
30+1 tool capacity may be limiting for diverse multi-pallet production requiring many different cutters

Best For

Job shops running repeat 5-axis parts in batches where pallet pre-staging eliminates setup downtime Aerospace production cells machining aluminum and steel 5-axis components across multiple shifts Shops transitioning from manually-loaded UMC-1000 work to unattended production Medical device manufacturers running repeat titanium and stainless 5-axis parts with consistent fixturing Production environments where spindle utilization must exceed 80% to justify capital investment

Frequently Asked Questions

01 What does a Haas UMC-1000-P cost?

Base price starts around $200,000. With spindle upgrades, through-spindle coolant, probing, and the 50+1 toolchanger, expect $250,000-$290,000 for a production-configured machine. The P adds approximately $40,000-$60,000 over the equivalent standard UMC-1000.

02 How does the UMC-1000-P compare to the standard UMC-1000?

Travel, spindle, and trunnion specs are identical. The P adds an automatic pallet changer that enables workpiece exchange without stopping the spindle. The trade-off is reduced pallet load capacity (200 lb vs 1,000 lb) and higher cost. Choose the P for repeat production; choose the standard for heavy or diverse job shop work.

03 Why is the pallet load capacity so much lower than the standard platter?

The pallet changer must handle the combined weight of pallet, fixture, and workpiece during exchange, including at tilted trunnion positions. The 200 lb limit ensures reliable, safe pallet exchange under all conditions. For heavier workpieces, use the standard UMC-1000 without the pallet system.

04 How many pallets does the UMC-1000-P support?

The standard configuration includes two pallets, allowing load/unload on one while cutting on the other. This simple two-pallet system provides the core benefit — eliminating load/unload downtime — without the complexity and cost of larger pallet pool systems.
