YCM NH800B

Q: How much does the YCM NH800B cost?

The price estimate for the YCM NH800B is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/ycm-nh800b#price; the request is passed to YCM or an authorised dealer.

Specs verified 2026-10-05 · ycmcnc.com Updated 2026-10-05

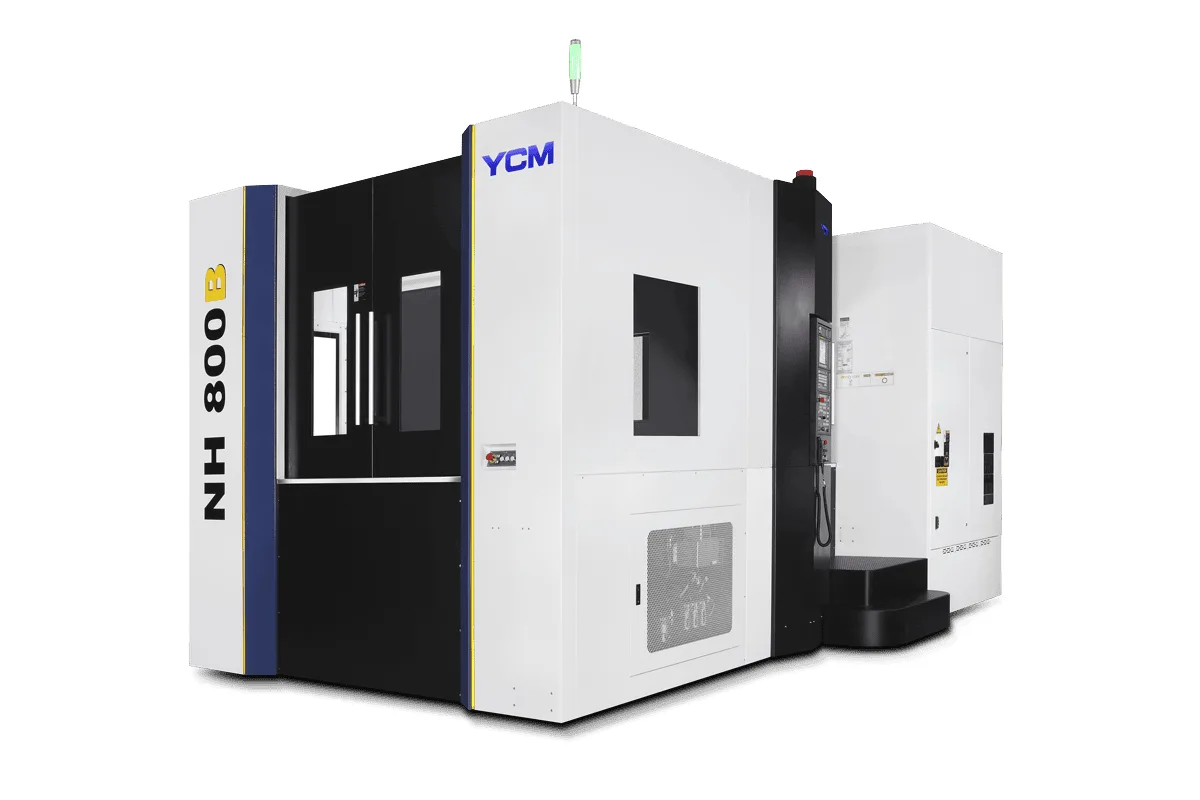

Image: ycmcnc.com, YCM

Key Specifications

Max Spindle

10,000 rpm; opt. 8,000 rpm

Spindle Taper

BBT50; opt. CAT

Tool Capacity

40 tools; opt. 60 / 120 tools

Table Size

800 x 800 mm (31.5 x 31.5 in)

Spindle Power

45 kW (60.35 hp); opt. 55 kW (73.76 hp)

x axis travel

1,300 mm (51.18 in)

How much does the YCM NH800B cost?

Price estimate

Uncertain

We do not have a price for the YCM NH800B that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Largest horizontal machining center in YCM's current list, the NH800B works on 800 x 800 mm (31.5 x 31.5 in) pallets rated for 2,000 kg (4,409.2 lb) each. Travels are 1,300 mm (51.18 in) in X and 1,100 mm (43.31 in) in Y and Z, and the maximum workpiece is ø1,300 x 1,300 mm (ø51.18 x 51.18 in).

Those dimensions describe the work: large gearbox and pump housings, machine frames, engine blocks and weldments that have to be reached from several sides in one clamping. The pallet top stands 1,400 mm (55.12 in) above the floor, so loading is by crane, and YCM gives the pallet change as 20 seconds.

In design it is the bigger sibling of the NH630B. It has the same BBT50 built-in motorized spindle, 10,000 rpm with 45 kW (60.35 hp) and an oil jacket cooling system, the same dual drive on the Y axis and the same one-piece T-shaped base with a dual-wall column. A spindle of 8,000 rpm and a 55 kW (73.76 hp) rating are options. What changes with size is pace: rapid traverse is listed at 50 m/min, with 40 m/min in brackets, and cutting feed at 1~25,000 mm/min (0.04~984.25 ipm).

Tool reach grows with the envelope. A tool can be 600 mm long, ø125 mm with adjacent tools or ø250 mm without, and weigh 25 kg. Long boring bars for deep housings fit the magazine, which holds 40 tools, or 60 or 120. Machine weight is 26,000~28,500 kg.

Full Specifications

Parameter	Value
Max Spindle Speed	10,000 rpm; opt. 8,000 rpm
Spindle Motor Power	45 kW (60.35 hp); opt. 55 kW (73.76 hp)
Spindle Taper	BBT50; opt. CAT
X Axis Travel	1,300 mm (51.18 in)
Y Axis Travel	1,100 mm (43.31 in)
Z Axis Travel	1,100 mm (43.31 in)
Distance Spindle Center to Table Top	100~1,200 mm (3.94~47.24 in)
Distance Spindle Nose to Table Center	170~1,270 mm (6.7~50 in)
Table Size	800 x 800 mm (31.5 x 31.5 in)
Max Table Load	2,000 kg (4,409.2 lb)
Max Workpiece Size	ø1,300 x 1,300 mm (ø51.18 x 51.18 in)
Table Height From Floor	1,400 mm (55.12 in)
Table Indexing Angle	1°; opt. 0.001°
Rapid Traverse Xyz	50/50/50 (40/40/40) m/min
Cutting Feed Rate	1~25,000 mm/min (0.04~984.25 ipm)
Tool Capacity	40 tools; opt. 60 / 120 tools
Max Tool Weight	25 kg (55.12 lb)
Max Tool Size	ø125 x 600 mm (ø4.92 x 23.62 in); without adjacent tools ø250 x 600 mm (ø9.84 x 23.62 in)
Machine Weight	26,000~28,500 kg

Specifications sourced from ycmcnc.com — verified 2026-10-05

Strengths & Limitations

Strengths

2,000 kg (4,409.2 lb) on each 800 x 800 mm (31.5 x 31.5 in) pallet
Maximum workpiece of ø1,300 x 1,300 mm (ø51.18 x 51.18 in)
1,100 mm (43.31 in) of both Y and Z travel
BBT50 built-in motorized spindle, 10,000 rpm and 45 kW (60.35 hp)
Tools up to ø250 x 600 mm without adjacent tools

Limitations

Pallet change takes 20 seconds
Machine weight is 26,000~28,500 kg
Standard table indexing is 1°; 0.001° is optional
The bracketed 40 m/min rapid figure is not explained on the page

Best For

Large housings, frames and weldments up to 2,000 kg (4,409.2 lb) Deep boring with long tools up to 600 mm Multi-side machining of parts up to ø1,300 x 1,300 mm in one clamping

Frequently Asked Questions

01 What is the capacity of the NH800B?

Each pallet is 800 x 800 mm (31.5 x 31.5 in) and carries 2,000 kg (4,409.2 lb). YCM lists the maximum work dimensions as ø1,300 x 1,300 mm (ø51.18 x 51.18 in). Travels are 1,300 mm (51.18 in) in X and 1,100 mm (43.31 in) in Y and Z.

02 How fast are the axes and the pallet change?

Rapid traverse is listed as 50/50/50 m/min, with 40/40/40 in brackets, and cutting feed as 1~25,000 mm/min (0.04~984.25 ipm). YCM gives the pallet change as 20 seconds.

03 What spindle options are there?

Standard is a BBT50 built-in motorized spindle at 10,000 rpm with 45 kW (60.35 hp). The options column lists 8,000 rpm, 55 kW (73.76 hp) and a CAT taper. Micro oil-air lubrication serves the ceramic ball bearings.

04 How long can a tool be?

Up to 600 mm. The maximum tool dimension is ø125 x 600 mm (ø4.92 x 23.62 in) with adjacent tools and ø250 x 600 mm (ø9.84 x 23.62 in) without. Tool weight is limited to 25 kg, and the magazine holds 40, 60 or 120 tools.
