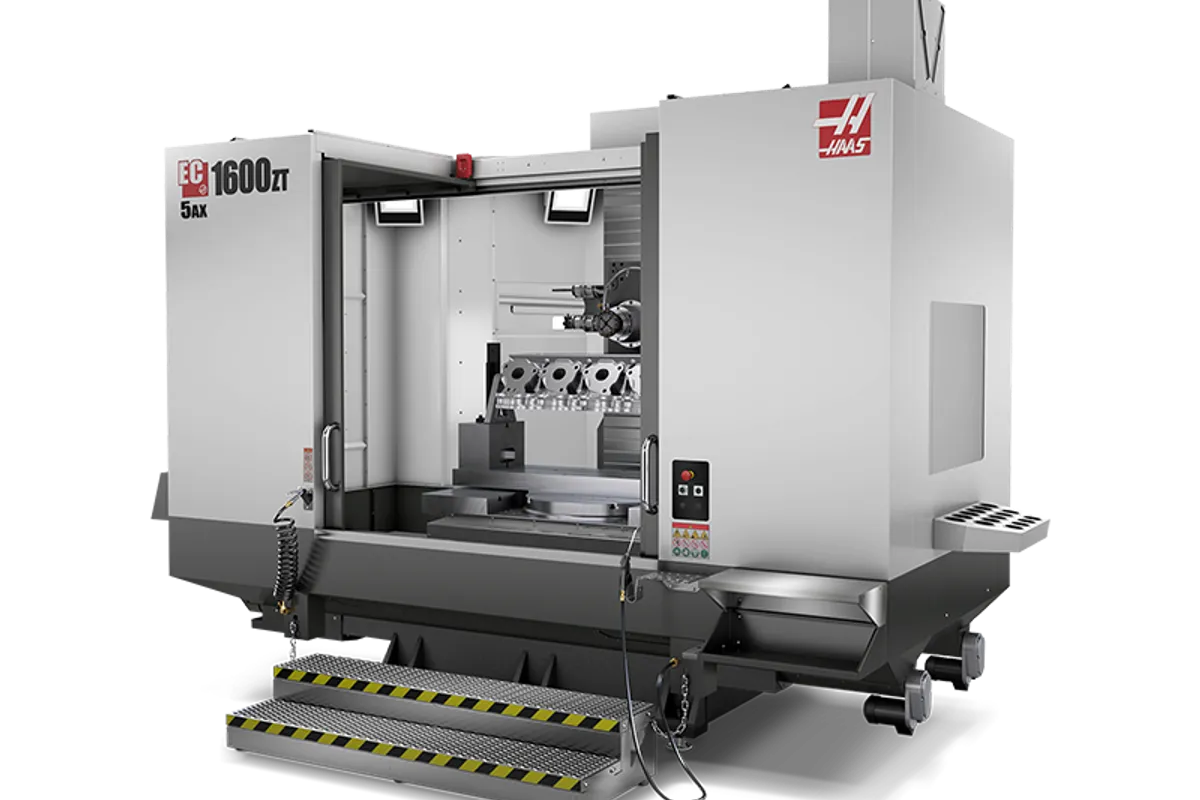

Haas EC-1600ZT-5AX

$510,000 - $600,000 Updated 2026-03-12

Key Specifications

X Travel

1,626 mm (64 in)

Y Travel

1,270 mm (50 in)

Z Travel

1,016 mm (40 in)

Max Spindle

7,500 RPM

Spindle Taper

CT50 / BT50

Tool Capacity

50+1 SMTC

Overview

The Haas EC-1600ZT-5AX is the 5-axis version of the large-frame EC-1600ZT, adding a full B-axis rotary and an HRT310 A-axis to the zero-turn platform. With 1626 x 1270 x 1016 mm (64 x 50 x 40 in) of travel, this is the largest 5-axis capable machine Haas builds — and at a base price around $510,000, it's also one of the most affordable large-frame 5-axis HMCs available from any manufacturer.

The 5AX configuration adds 203 mm (8 in) of Z-travel compared to the standard EC-1600ZT, bringing it to 1016 mm (40 in). The integrated A-axis provides 30 degrees of tilt in each direction with 2,712 Nm (2,000 ft-lbf) of continuous torque and 5,423 Nm (4,000 ft-lbf) of brake torque. The 5th axis comes from an HRT310 rotary with a 310 mm (12.2 in) platter, 360 degrees of travel, 407 Nm (300 ft-lbf) of continuous torque, and 75 degrees per second rapids.

The 1626 x 813 mm (64 x 32 in) table handles up to 4,536 kg (10,000 lb), though the HRT310's unsupported platter capacity is 98.9 kg (218 lb) or 197.3 kg (435 lb) with tailstock support. So while the table can hold enormous weight, 5-axis work through the HRT310 is limited to smaller parts.

The 50-taper 2-speed gearbox spindle delivers 460 Nm (340 ft-lbf) at 700 RPM with 7,500 RPM max speed. The standard 50+1 SMTC handles tools up to 13.6 kg (30 lb) and 254 mm (10 in) diameter with adjacent empty. Tool-to-tool averages 8.0 seconds and chip-to-chip averages 12.6 seconds.

This machine serves a specific niche: shops that need to machine large, heavy parts with 3+2 positioning or limited simultaneous 5-axis capability on the HRT310, all on a single platform with horizontal chip evacuation. It's not competing with purpose-built 5-axis machining centers for small precision parts, but rather providing multi-axis access to large workpieces. Specs sourced from Haas Automation published data.

Full Specifications

Parameter	Value
X-Axis Travel	1,626 mm (64 in)
Y-Axis Travel	1,270 mm (50 in)
Z-Axis Travel	1,016 mm (40 in)
Max Spindle Speed	7,500 RPM
Spindle Taper	CT50 / BT50
Spindle Motor Power	30.0 hp
Spindle Torque Max	460 Nm (340 ft-lbf) @ 700 RPM
Spindle Drive	2-Speed Gearbox
Table Size	1,626 x 813 mm (64 x 32 in)
Table Load Max	4,536 kg (10,000 lb)
T Slots	5 slots, 145 mm (5.70 in) center distance
A Axis Tilt	±30 degrees
A Axis Torque Continuous	2,712 Nm (2,000 ft-lbf)
A Axis Brake Torque	5,423 Nm (4,000 ft-lbf)
A Axis Gear Ratio	500:1
A Axis Rapids	36 deg/sec
A Axis Indexing Accuracy	± 30 arc-sec
A Axis Repeatability	15 arc-sec
Fifth Axis Platter Diameter	310 mm (12.2 in)
Fifth Axis Travel	360 degrees
Fifth Axis Torque Continuous	407 Nm (300 ft-lbf)
Fifth Axis Brake Torque	678 Nm (500 ft-lbf)
Fifth Axis Rapids	75 deg/sec
Fifth Axis Max Weight Unsupported	98.9 kg (218 lb)
Fifth Axis Max Weight Supported	197.3 kg (435 lb)
Tool Capacity	50+1 SMTC
Tool To Tool	8.00 s
Chip To Chip	12.60 s
Max Tool Diameter	4.0 in
Max Tool Length	20.00 in
Max Tool Weight	30.0 lb
Rapid Traverse X	18.0 m/min (710 ipm)
Rapid Traverse Y	18.0 m/min (710 ipm)
Rapid Traverse Z	18.0 m/min (710 ipm)
Machine Weight	13,472 kg (29,700 lb)
CNC Control	Haas Next Generation Control (NGC)
Coolant Capacity	95 gal
Air Required	9 scfm @ 100 psi
Electrical Low	220 VAC 3-phase, 70 A
Electrical High	440 VAC 3-phase, 35 A
Travels	S.A.E
X Axis	64.00 in
Y Axis	50.00 in
Z Axis	40.00 in
Spindle	S.A.E
Max Rating	5.0 hp
Max Speed	75 °/sec
Max Torque	340.0 ft-lbf @ 700 rpm
Drive System	2-Speed Gearbox
Taper	CT or BT 50
Table	64 in x 32 in
Length	64.0 in
Width	32.0 in
T Slot Width	0.626 in to 0.630 in
T Slot Center Distance	5.70 in
Number Of Std T Slots	6 EA @ 60 °
Max Weight On Table	10000 lb
Integrated 4th Axis	S.A.E
Platter Diameter	12.20 in
Travel	360 °
Max Part Swing	78.0 in
Max Weight On Platter	435 lb
Rotational Torque	2000 ft-lbf
Backlash	30 arc-sec
Gear Ratio	500:1
Brake Torque	500 ft-lbf
Min Resolution	0.001 °
Indexing Accuracy	± 30 arc-sec
Repeatability	15 arc-sec
Rapids On B	36 °/sec
Max Cutting B	36 °/sec
5th Axis A Axis	S.A.E
Torque	300 ft-lbf
Center Height	9.000 in
General	S.A.E
Tool Changer	S.A.E
Type	SMTC
Capacity	50+1
Max Tool Diameter Large	10.0 in
Air Requirements	S.A.E
Electrical Specification	S.A.E
Input Ac Voltage Low	220 VAC
Full Load Amps Low	70 A
Input Ac Voltage High	440 VAC
Full Load Amps High	35 A

Specifications sourced from haascnc.com — verified 2026-03-28

Strengths & Limitations

Strengths

Largest 5-axis capable machine Haas builds, with 64 x 50 x 40 in of travel
4,536 kg (10,000 lb) table load handles massive workpieces for 3+2 and angled machining
Integrated A-axis tilt with 2,712 Nm continuous torque provides rigid angled machining on heavy parts
HRT310 5th axis enables full simultaneous 5-axis on smaller components mounted on the tilting table
Base price around $510K is significantly less than comparable large 5-axis HMCs from competitors
1,016 mm (40 in) Z-travel is 203 mm more than the standard EC-1600ZT

Limitations

HRT310 platter capacity of 98.9 kg unsupported limits 5-axis work to relatively small parts
12.6 sec chip-to-chip is the slowest tool change in the Haas lineup
No pallet changer — single-table design limits unattended operation flexibility
30 hp spindle power is modest for a machine this size and price point
5-axis capability is a bolt-on HRT310, not an integrated purpose-built 5-axis design
29,700 lb weight plus floor space requirements make installation a major project

Best For

Aerospace shops machining large structural components with angled features requiring 5-axis access Energy sector shops running large valve bodies and pump components with compound-angle bores Shops that need 3+2 positioning on heavy parts plus occasional 5-axis work on smaller parts Heavy equipment manufacturers needing multi-angle access to large weldments and castings Job shops taking on oversize 5-axis work that doesn't fit on conventional 5-axis machines Shops wanting one machine that can do 3-axis, 4-axis, and 5-axis work across a range of part sizes

Frequently Asked Questions

01 What does a new Haas EC-1600ZT-5AX cost?

Base price starts around $510,000. With through-spindle coolant, probing, and other options, expect $560,000-$600,000. That's about $80,000 more than the standard EC-1600ZT without 5-axis capability.

02 What's the difference between the EC-1600ZT-5AX and EC-1600ZT?

The 5AX adds an HRT310 rotary for full 5-axis capability and extends Z-travel from 813 mm to 1016 mm. The A-axis tilt and table capacity are the same. Choose the 5AX if you need simultaneous 5-axis or compound-angle machining. The standard ZT is adequate for 4-axis tilt work.

03 Is this a true 5-axis machine?

It supports simultaneous 5-axis machining through the combination of X, Y, Z linear axes plus the A-axis tilt and HRT310 rotary. However, the 5th axis is a bolt-on HRT310 with limited weight capacity (218 lb unsupported), not an integrated 5-axis design. For small precision 5-axis work, consider the Haas UMC-750 or UMC-1000 instead.

04 How heavy can the part be for 5-axis work?

The HRT310 handles 98.9 kg (218 lb) unsupported or 197.3 kg (435 lb) with tailstock support. The full 4,536 kg table capacity is available for 3-axis and 4-axis (tilt) work. The weight limitation only applies when using the HRT310 for 5th-axis rotation.

05 What competitors does the EC-1600ZT-5AX go up against?

In terms of size and capability, it competes with machines like the Mazak HCN-12800 and Okuma MB-10000H, but those machines cost significantly more. The Haas approach of adding 5-axis capability to the EC-1600ZT platform keeps costs much lower than purpose-built large 5-axis HMCs.
