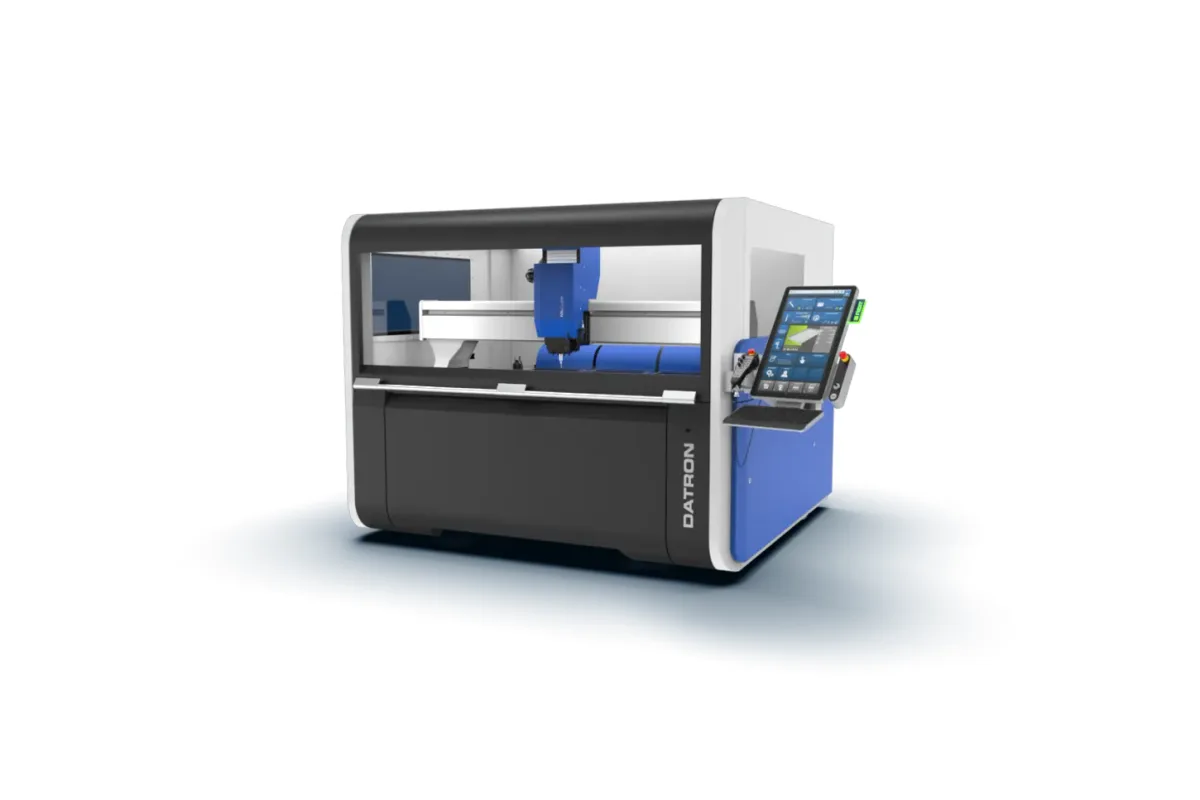

DATRON MLCube

Specs verified 2026-10-03 · datron.de Updated 2026-10-03

Image: datron.de, DATRON

Key Specifications

Max Spindle

60,000 rpm

Spindle Taper

Direct shank or HSK-E 25

Tool Capacity

5, 12 or 15 stations integrated (10, 24 or 30 optional), integrated length sensor optional; or DATRON ToolAssist 60 or 143 stations with HSK-E 25

Spindle Power

1.8 kW - 4.0 kW (2.4 hp - 5.4 hp) HF spindle

axes

3 (3+1 with optional DATRON Axis4)

x axis travel

1,520 mm (59.8 in)

How much does the DATRON MLCube cost?

Price estimate

Uncertain

We do not have a price for the DATRON MLCube that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

With 1,520 mm (59.8 in) of X travel and 1,150 mm (45.3 in) of Y, the DATRON MLCube is the long-travel counterpart of the M8Cube: a 3-axis portal machine whose work envelope is 1,500 mm x 1,000 mm x 200 mm (59.1 in x 39.4 in x 7.9 in). Z travel is 245 mm (9.6 in), and the 200 mm in the envelope is the portal passage. That is room for one large plate, or for a row of fixtures machined in a single cycle, provided nothing stands taller than the passage.

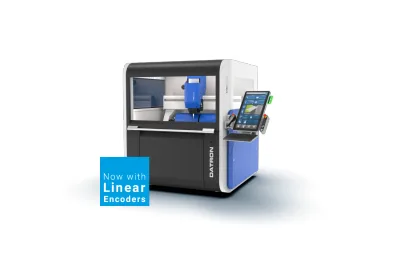

The spindle options match the M8Cube. Both machines list an HF spindle of 1.8 kW to 4.0 kW (2.4 hp to 5.4 hp) with a top speed of 60,000 rpm and a choice of direct shank or HSK-E 25. What changes is the size around that spindle. The M8Cube travels 1,020 mm (40.2 in) in X and 830 mm (32.7 in) in Y and weighs approximately 1,300 kg (2,866 lb); the MLCube weighs approximately 2,500 kg (5,512 lb). Feed stays at up to 22 m/min (866 ipm), so crossing the longer table takes proportionally more time.

Tool changing follows the same menu with one difference to check. The integrated changer holds 5, 12 or 15 stations, or 10, 24 or 30 as an option, but the integrated length sensor is listed as optional on this model. The DATRON ToolAssist with 60 or 143 stations is the other choice and uses HSK-E 25.

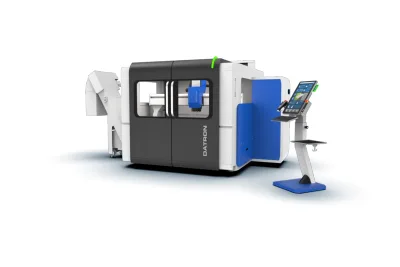

The MLCube Pro shares these travels and narrows the choices: HSK-E 25 only, the ToolAssist as its tool system, a 3.0 kW to 4.0 kW (4.0 hp to 5.4 hp) spindle and 40,000 rpm. Anyone who wants direct-shank tooling, the 60,000 rpm top speed or a small integrated changer on this table size will find them listed for the MLCube.

A fourth axis is available as the optional DATRON Axis4 for 3+1 work; no 3+2 option is listed for this model. The DATRON 3D probe is optional too. Allow 3,100 mm x 2,280 mm x 1,970 mm (122.0 in x 89.8 in x 77.6 in) with the operating terminal, or 2,420 mm x 2,280 mm x 1,970 mm (95.3 in x 89.8 in x 77.6 in) without it.

Full Specifications

Parameter	Value
Axes	3 (3+1 with optional DATRON Axis4)
X Axis Travel	1,520 mm (59.8 in)
Y Axis Travel	1,150 mm (45.3 in)
Z Axis Travel	245 mm (9.6 in)
Work Envelope	1,500 mm x 1,000 mm x 200 mm (59.1 in x 39.4 in x 7.9 in), Z = portal passage
Spindle Motor Power	1.8 kW - 4.0 kW (2.4 hp - 5.4 hp) HF spindle
Max Spindle Speed	60,000 rpm
Spindle Taper	Direct shank or HSK-E 25
Tool Capacity	5, 12 or 15 stations integrated (10, 24 or 30 optional), integrated length sensor optional; or DATRON ToolAssist 60 or 143 stations with HSK-E 25
CNC Control	DATRON next
Operating Terminal	24-inch multi-touch screen with hand-held control unit
Workpiece Measurement	DATRON 3D probe (optional)
Rotary Axis Option	DATRON Axis4 (optional)
Coolant System	Minimum-quantity cooling lubrication, 10 liters or 2x 10 liters coolant tank; 4-nozzle spray ring
Rapid Traverse Xyz	Up to 22 m/min (866 ipm)
Cutting Feed Rate	Up to 22 m/min (866 ipm)
Machine Dimensions	3,100 mm x 2,280 mm x 1,970 mm (122.0 in x 89.8 in x 77.6 in) with operating terminal
Machine Dimensions Without Terminal	2,420 mm x 2,280 mm x 1,970 mm (95.3 in x 89.8 in x 77.6 in)
Machine Weight	Approx. 2,500 kg (5,512 lb)

Specifications sourced from datron.de — verified 2026-10-03

Strengths & Limitations

Strengths

Work envelope of 1,500 mm x 1,000 mm x 200 mm (59.1 in x 39.4 in x 7.9 in) for large plates or several fixtures in one setup
Keeps the 60,000 rpm top speed and the 1.8 kW to 4.0 kW (2.4 hp to 5.4 hp) spindle range of the smaller M8Cube
Choice of direct shank or HSK-E 25, which the MLCube Pro narrows to HSK-E 25 only
Tool systems from a 5-station integrated changer to the DATRON ToolAssist with 60 or 143 stations
Mineral-cast bed with an integrated conical thread, available as a full or cut-out table

Limitations

Only 200 mm (7.9 in) of portal passage over a 1,500 mm x 1,000 mm (59.1 in x 39.4 in) area: this is a machine for flat work
The integrated tool length sensor is an option here, while the M8Cube lists it with the integrated changer

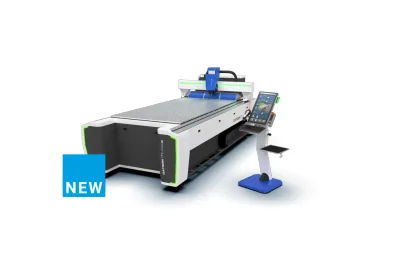

Feed is up to 22 m/min (866 ipm) despite the long travels, well below the MLmax Pro at up to 50 m/min (1,969 ipm)
Rotary work is limited to 3+1 with the optional DATRON Axis4; the table lists no 3+2 option
At most 4.0 kW (5.4 hp) at the spindle, so stock removal on a large plate relies on small tools and light passes

Best For

Large plates and panels up to 1,500 mm x 1,000 mm (59.1 in x 39.4 in) Multiple fixtures or nested parts machined in one setup Small-tool, high-speed work at up to 60,000 rpm on a large table Direct-shank tooling or a small integrated changer at this table size

Frequently Asked Questions

01 How does the MLCube differ from the M8Cube?

Mainly in size. The MLCube travels 1,520 mm (59.8 in) in X and 1,150 mm (45.3 in) in Y; the M8Cube travels 1,020 mm (40.2 in) and 830 mm (32.7 in). Z travel is 245 mm (9.6 in) on both. Spindle range, top speed and tool interfaces are listed identically. The MLCube weighs approximately 2,500 kg (5,512 lb) against approximately 1,300 kg (2,866 lb) for the M8Cube, lists the integrated length sensor as optional, and offers DATRON Axis4 without an Axis5 option.

02 What is the difference between the MLCube and the MLCube Pro?

Travels and work envelope are the same. The MLCube Pro is listed with a 3.0 kW to 4.0 kW (4.0 hp to 5.4 hp) spindle at up to 40,000 rpm, HSK-E 25 only, and the DATRON ToolAssist with 60 or 143 stations as its tool system. The MLCube adds lower-power spindles from 1.8 kW (2.4 hp), a 60,000 rpm top speed, direct-shank tooling and integrated changers from 5 stations. The MLCube Pro is also heavier at approximately 3,200 kg (7,055 lb).

03 How tall a part can the MLCube machine?

The work envelope gives 200 mm (7.9 in) in Z, which DATRON defines as the portal passage: the clearance under the portal. Part and fixture together must pass under that. Z travel itself is 245 mm (9.6 in), and the tool has to retract clear of the work within it, so check the stack-up for anything other than plate and shallow parts.

04 How many tools can the MLCube carry?

The integrated changer is listed with 5, 12 or 15 stations, or optionally 10, 24 or 30. An integrated tool length sensor is optional. Alternatively the DATRON ToolAssist holds 60 or 143 stations and works with HSK-E 25, so choosing it also settles the tool interface.

05 What coolant system does the MLCube use?

Minimum-quantity cooling lubrication, applied through a 4-nozzle spray ring. The reservoir is one 10-liter tank or two of them. No flood coolant system appears in the table, which matters if your process or material depends on flooding the cut.
