AWEA LP-5021

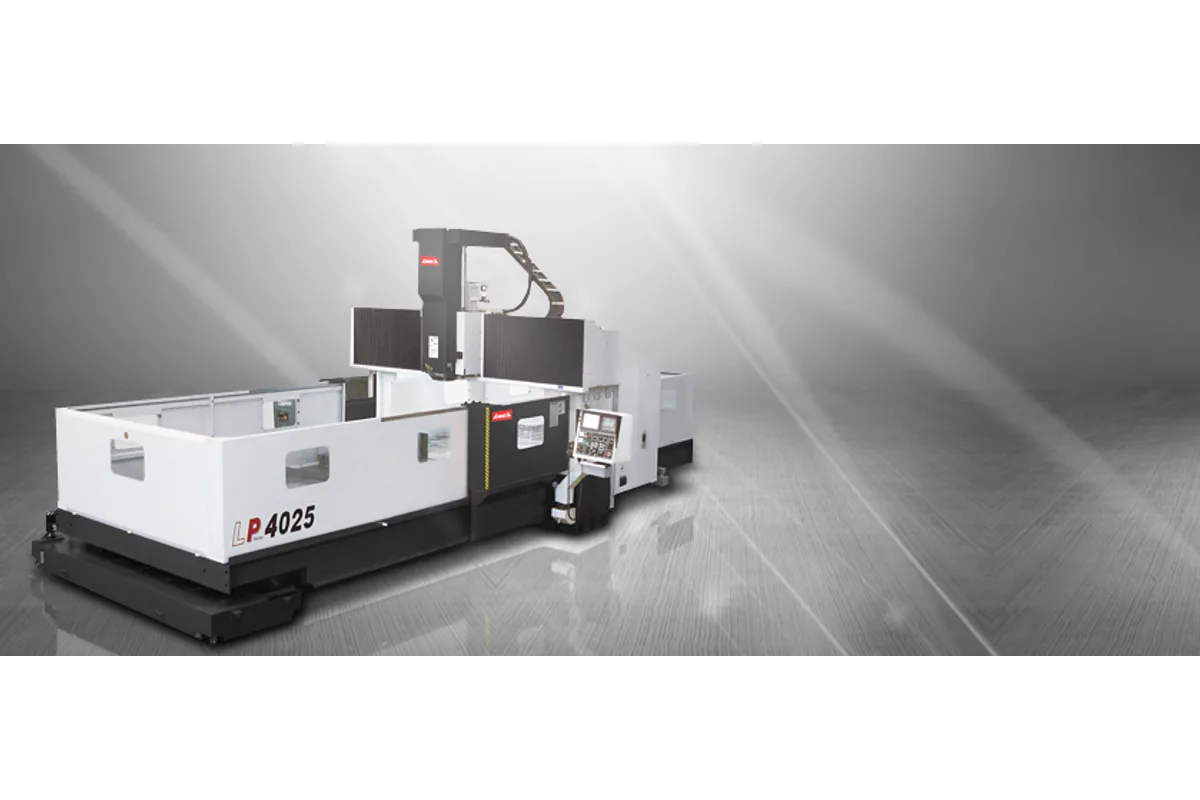

Image: awea.com, AWEA
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
How much does the AWEA LP-5021 cost?
Price estimate
We do not have a price for the AWEA LP-5021 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
A 5,020 x 2,010 mm (197.6 x 79.1 in) table rated for 15,000 kg (33,069 lb) is the centre of the AWEA LP-5021. It sits under a bridge with 2,300 mm (90.6 in) between the columns, and the travels are 5,000 mm (196.9 in) in X, 2,100 mm (82.7 in) in Y and, as standard, 760 mm (29.9 in) in Z.
Tall work is where the specification needs close reading. In standard form the spindle nose stands 240 ~ 1,000 mm (9.4 ~ 39.4 in) above the table. Order one of the optional Z strokes of 1,000, 1,200 or 1,400 mm and the table gives 200 ~ 1,200 mm, 200 ~ 1,400 mm and 200 ~ 1,600 mm. Tools can be up to 350 mm (13.8 in) long, and every millimetre of tool comes off the height left for the part. Decide the Z stroke from the tallest fixture stack you expect.
On load the model sits between its two neighbours of equal length. The LP-5016 carries 14,000 kg (30,864 lb) on a 5,000 x 1,500 mm table. The LP-5025 carries 18,000 kg (39,683 lb).
In motion it is a slow, steady machine: 10,000 mm/min (394 ipm) for X rapid, 15,000 mm/min (591 ipm) for Y and Z. VDI positioning is P ≤ 0.040 mm over full travel. The 32-tool magazine can be replaced by one of 60, 90 or 120 tools. On the control, AWEA lists adoptive feed control and spindle thermal compensation as options; the first adjusts the feed to the spindle load during roughing and the second corrects for heat during long cycles. Machine weight is 41,000 kg (90,388 lb).
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 5,000 mm (196.9 in) |
| Y Axis Travel | 2,100 mm (82.7 in) (2,500 mm Opt.) |
| Z Axis Travel | 760 mm (29.9 in) (1,000 / 1,200 / 1,400 mm Opt.) |
| Table Size | 5,020 x 2,010 mm (197.6 x 79.1 in) |
| Max Table Load | 15,000 kg (33,069 lb) |
| Distance Spindle Nose to Table | 240 ~ 1,000 mm (9.4 ~ 39.4 in) (200 ~ 1,200 mm / 200 ~ 1,400 mm / 200 ~ 1,600 mm Opt.) |
| Distance Between Columns | 2,300 mm (90.6 in) |
| Spindle Motor Power | 22 / 26 kW (30 / 35 HP) |
| Max Spindle Speed | 6,000 rpm (Std.) Z-axis : 1,000 / 1,200 / 1,400 mm ; Gear 4,000 / 5,000 rpm (Opt.) Built-in 6,000 / 8,000 rpm (Opt.) Direct Drive 8,000 / 10,000 rpm (Opt.) |
| Spindle Taper | BT50 (ISO50) / DIN69871-A (Opt.) |
| Rapid Traverse X | 10,000 mm/min (394 ipm) |
| Rapid Traverse Y | 15,000 mm/min (591 ipm) |
| Rapid Traverse Z | 15,000 mm/min (591 ipm) |
| Tool Capacity | 32 (60 / 90 / 120 Opt.) |
| Max Tool Diameter (full magazine) | Ø127 / Ø215 mm (Ø5.0 / Ø8.5 in) |
| Max Tool Length | 350 mm (13.8 in) |
| Max Tool Weight | 20 kg (44 lb) |
| Positioning Accuracy Jis B 6338 | ± 0.015 mm / Full Travel |
| Positioning Accuracy VDI 3441 | P ≤ 0.040 mm / Full Travel |
| Repeatability Jis B 6338 | ± 0.003 mm |
| Repeatability VDI 3441 | Ps ≤ 0.030 mm |
| Air Pressure Requirement | 5 ~ 8 (5) kg/cm² |
| Hydraulic Tank Capacity | 120 liter (10 HP) |
| Lubrication Tank Capacity | 6 liter |
| Coolant Tank Capacity | 650 liter (1.5 HP) |
| Machine Weight | 41,000 kg (90,388 lb) |
Specifications sourced from awea.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 15,000 kg (33,069 lb) on a 5,020 x 2,010 mm (197.6 x 79.1 in) table
- Optional Z strokes of 1,000, 1,200 or 1,400 mm, with up to 200 ~ 1,600 mm from spindle nose to table
- Magazine can be enlarged from 32 to 60, 90 or 120 tools
- Optional adoptive feed control and spindle thermal compensation on the control
- 650 liter coolant tank and a 10 HP hydraulic pump
Limitations
- X rapid of 10,000 mm/min (394 ipm) over a 5,000 mm (196.9 in) stroke
- Standard Z is 760 mm (29.9 in); the longer strokes are options
- Tool length limit of 350 mm (13.8 in), below the 400 mm (15.7 in) of the LP-5016
- P ≤ 0.040 mm positioning under VDI over full travel
Best For
Frequently Asked Questions
01
With the standard 760 mm (29.9 in) Z stroke the spindle nose is 240 ~ 1,000 mm (9.4 ~ 39.4 in) above the table. The optional Z strokes of 1,000, 1,200 and 1,400 mm are listed with 200 ~ 1,200 mm, 200 ~ 1,400 mm and 200 ~ 1,600 mm. Tool length, up to 350 mm (13.8 in), has to fit inside that distance together with the part and the fixture.
02
The standard magazine has 32 pockets. Magazines of 60, 90 and 120 tools are options. Each tool can weigh up to 20 kg (44 lb) and measure up to Ø127 mm (Ø5.0 in), or Ø215 mm (Ø8.5 in) if the pockets on both sides stay empty.
03
AWEA marks spindle thermal compensation as an option and lists adoptive feed control ( AFC ) among the options too. An automatic tool length measurement function, which can measure up to 12 tool lengths from one button, is also optional. Tool load monitoring, which watches each tool and detects breakage, is described without an option mark.
04
They rise with width. The LP-5016 is rated for 14,000 kg (30,864 lb), the LP-5021 for 15,000 kg (33,069 lb) and the LP-5025 for 18,000 kg (39,683 lb). Machine weights follow the same order: 36,000 kg (79,365 lb) for the LP-5016, 41,000 kg (90,388 lb) for the LP-5021 and 45,000 kg (99,206 lb) for the LP-5025.
