AWEA LG-5040

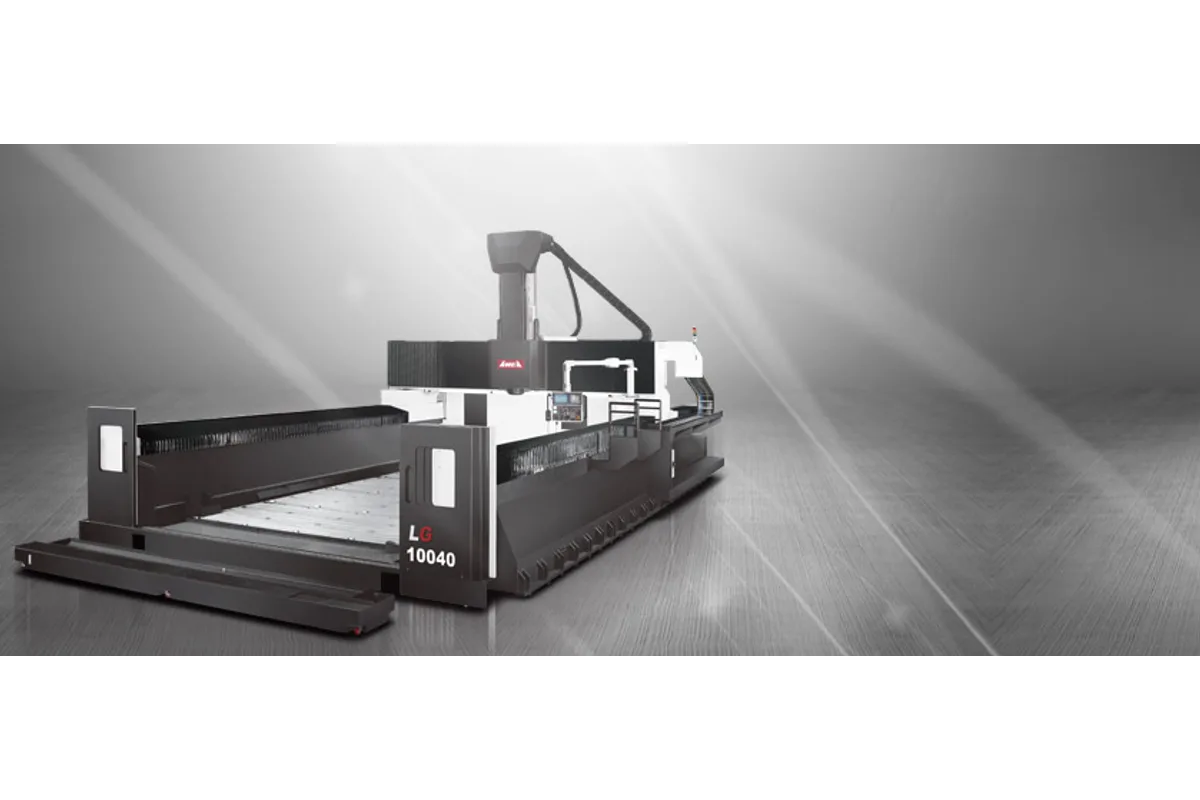

Image: awea.com, AWEA
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
How much does the AWEA LG-5040 cost?
Price estimate
We do not have a price for the AWEA LG-5040 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The AWEA LG-5040 opens the 4,000 mm Y group of the LG gantry series. X travel is 5,000 mm (196.9 in), Y is 4,000 mm (157.5 in), Z is 1,000 mm (39.4 in), and the fixed table is 5,000 x 3,800 mm (196.9 x 149.6 in): a wide, short table that suits plates, rings and die sets more than beams.
Set beside the LG-5030, the extra metre of Y changes more than the table width. The columns stand 4,800 mm apart (4,500 mm with the water eliminator) instead of the LG-5030's 3,800 mm. Coolant capacity is 1,600 liter against 1,300 liter on the LG-5030. The magazine row reads 32 with 60 as an option, where the LG-5030 table shows 32 only. Y and Z accuracy under VDI is P = 0.030 mm over full travel with Ps = 0.025 mm repeatability; the LG-5030 lists P = 0.025 mm and Ps = 0.020 mm.
X is unchanged between the two. The rapid is 10 m/min (394 ipm) on twin ball screws with optical linear scales, positioning is P = 0.030 mm and repeatability Ps = 0.022 mm. This is the only 4,000 mm Y model with the ball screw drive. The LG-6040 goes to rack and pinion and 20 m/min (787 ipm).
Y rapid is 15 m/min (591 ipm), quicker than X, which is unusual for a gantry and worth using when the program is laid out: stepping across the table costs less time than stepping along it. The standard spindle is the 4,000 rpm CAT50 gear unit with a 22 / 26 kW (30 / 35 HP) motor.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 5,000 mm (196.9 in) |
| Y Axis Travel | 4,000 mm (157.5 in) |
| Z Axis Travel | 1,000 mm (39.4 in) |
| Table Size | 5,000 x 3,800 mm (196.9 x 149.6 in) |
| Max Table Load | 2,500 kg/m² |
| Distance Spindle Nose to Table | 200 ~ 1,200 mm (7.9 ~ 47.2 in) |
| Distance Between Columns with Water Eliminator | 4,800 mm (4,500 mm) |
| Spindle Motor Power | 22 / 26 kW (30 / 35 HP) |
| Max Spindle Speed | Gear 4,000 rpm (Std.) ; Gear 5,000 / 6,000 rpm (Opt.) ; Built-in 6,000 / 8,000 rpm (Opt.) |
| Spindle Taper | CAT50 (7 / 24) |
| Rapid Traverse X | 10 m/min (394 ipm) |
| Rapid Traverse Y | 15 m/min (591 ipm) |
| Rapid Traverse Z | 10 m/min (394 ipm) |
| Cutting Feed Rate | 1 ~ 10 m/min (39 ~ 394 ipm) |
| Tool Capacity | 32 (60 Opt.) |
| Max Tool Diameter (full magazine) | Ø127 / 215 mm (Ø5.0 / 8.5 in) |
| Max Tool Length | 350 mm (13.8 in) |
| Max Tool Weight | 20 kg (44 lb) |
| Positioning Accuracy Jis B 6338 | ± 0.025 / Full Travel |
| Positioning Accuracy VDI 3441 | P = 0.030 mm |
| Positioning Accuracy Yz VDI 3441 | P = 0.030 mm / Full Travel |
| Repeatability Jis B 6338 | ± 0.003 mm |
| Repeatability VDI 3441 | Ps = 0.022 mm |
| Repeatability Yz VDI 3441 | Ps = 0.025 mm |
| Power Requirement | 80 kVA 220 ±10 % Vac 3 phase 50 / 60 Hz |
| Air Pressure Requirement | 5 ~ 8 (5) kg/cm² |
| Hydraulic Tank Capacity | 120 liter |
| Lubrication Tank Capacity | 6 liter |
| Coolant Tank Capacity | 1,600 liter |
Specifications sourced from awea.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 5,000 x 3,800 mm (196.9 x 149.6 in) fixed table, a metre wider than the LG-5030's
- 4,800 mm between the columns, 4,500 mm with the water eliminator
- 60-tool magazine listed as an option to the standard 32
- Ball screw X axis with optical linear scales: P = 0.030 mm positioning, Ps = 0.022 mm repeatability
- 1,600 liter coolant tank, larger than the 1,300 liter tank of the 3,000 mm Y models such as the LG-5030
Limitations
- X rapid is 10 m/min (394 ipm), half that of the LG-6040
- Y and Z positioning loosens to P = 0.030 mm, from P = 0.025 mm on the LG-5030
- Y and Z repeatability is Ps = 0.025 mm, not the Ps = 0.020 mm of the LG-5030
- Z travel stays at 1,000 mm (39.4 in) however wide the gantry
Best For
Frequently Asked Questions
01
A metre of width. Y travel is 4,000 mm (157.5 in) against 3,000 mm (118.1 in) on the LG-5030, and the table is 5,000 x 3,800 mm (196.9 x 149.6 in). The coolant tank is 1,600 liter and a 60-tool magazine is listed as an option. In exchange, Y and Z positioning is P = 0.030 mm where the LG-5030 holds P = 0.025 mm.
02
Ball screw. AWEA describes 2 sets of large size ball screws, servo motors and optical linear scales, driven by simultaneous servo control, for models with 4 m or 5 m of X travel. That gives the LG-5040 an X rapid of 10 m/min (394 ipm). The LG-6040 has the rack and pinion drive and is listed at 20 m/min (787 ipm).
03
The table lists 32 as standard and 60 as an option. Tools can be up to Ø127 mm (Ø5.0 in), or 215 mm (8.5 in) with adjacent pockets empty, up to 350 mm (13.8 in) long and 20 kg (44 lb). The floor type magazine is placed on the back of the machine.
04
No. Y rapid is 15 m/min (591 ipm), the same as on the narrower LG-5030. It only falls on the widest LG machines: the LG-6050, with 5,000 mm (196.9 in) of Y, is listed at 12 m/min (472 ipm).
