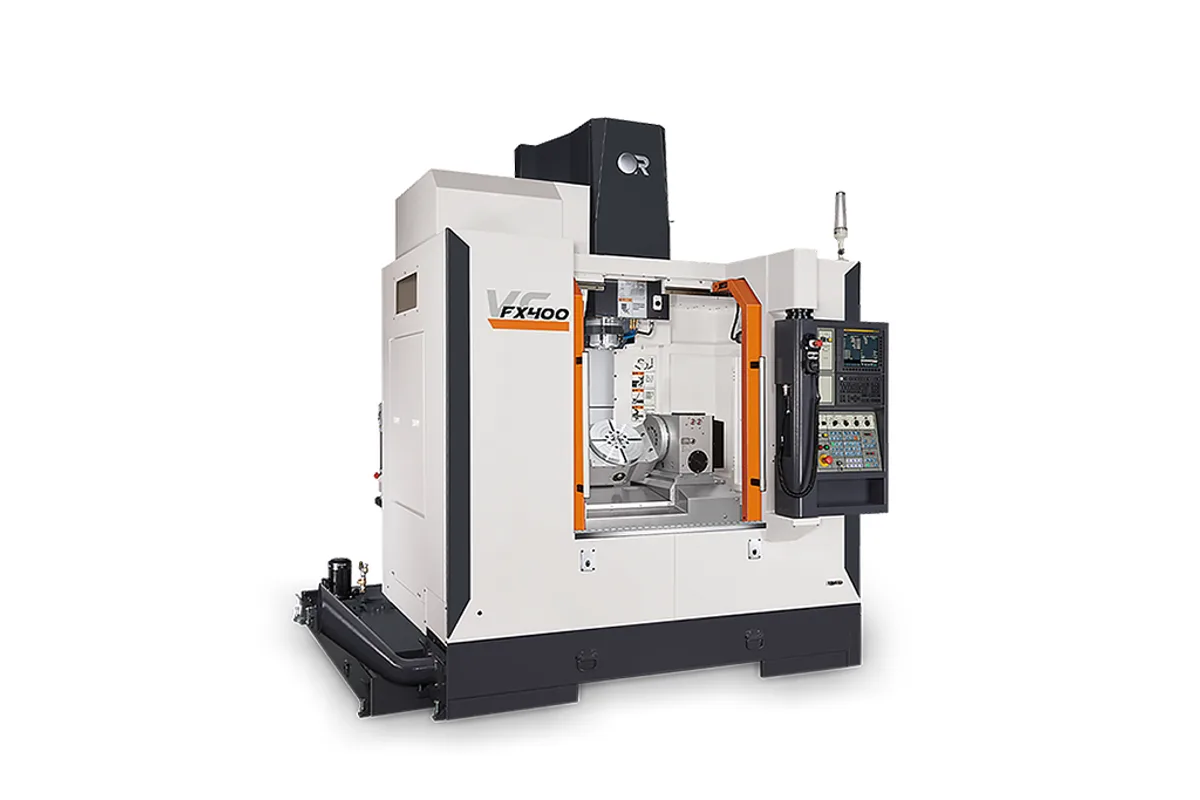

Victor Taichung Vcenter-FX400
Image: machine-tools.victortaichung.com, Victor Taichung
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Victor Taichung Vcenter-FX400 cost?
Price estimate
We do not have a price for the Victor Taichung Vcenter-FX400 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Victor Taichung Vcenter-FX400 is the maker's lower-specification 5-axis machine, a vertical machining center with a Ø320 mm (Ø12.59 in) trunnion tilting table. Travels are 600 mm (23.62 in), 500 mm (19.68 in) and 500 mm (19.68 in), the A axis tilts from -120 to 30 deg and the C axis rotates 0 ~ 360 deg.
Victor Taichung is explicit about what the standard machine does: a Fanuc 0iMF Plus control for 4+1 axis machining. The table is positioned, locked and the part is cut with three axes. Full 5-axis control is offered with a Siemens control as an option. For a great deal of five-sided work, positioning is all that is needed.

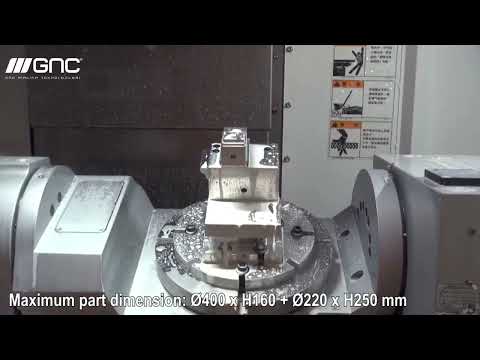

The largest part is given as Ø400 x H160 + Ø220 x H250 mm, that is, a wide low section with a narrower, taller one above it, the shape that clears the spindle nose when the table tilts. Load is 200 kg (440.92 lb).
The spindle is a 12000 rpm BBT-40 directly coupled to its motor, with 24 tools. Motor power is 11 / 15 kW (15 / 20 HP), or 7.5 / 11 / 15 kW (10 / 15 / 20 HP) in the CTS column. Rapid feeds are 32/32/32 m/min. Beside the Vcenter-AX380, which has the same tilt range, this machine has a smaller table, shorter X and Z travels and six fewer tools, and weighs 6,100 kg (13,448.18 lb).
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 600 mm (23.62 in) |
| Y Axis Travel | 500 mm (19.68 in) |
| Z Axis Travel | 500 mm (19.68 in) |
| A Axis Range | -120 ~ 30 deg |
| C Axis Range | 0 ~ 360 deg |
| Table Size | Ø320 mm (Ø12.59 in) |
| T-Slots | 12H7 mm |
| Max Table Load | 200 kg (440.92 lb) |
| Spindle Taper | BBT-40 |
| Spindle Motor Power | Non CTS: 11 / 15 kW (15 / 20 HP); CTS: 7.5 / 11 / 15 kW (10 / 15 / 20 HP) |
| Max Spindle Speed | 12,000 rpm |
| Tool Capacity | 24 |
| Max Tool Weight | 7 kg (15.43 lb) |
| Positioning Accuracy | 0.010 mm |
| Repeatability | 0.007 mm (±0.0035 mm) |
| Machine Weight | 6,100 kg (13,448.18 lb) |
Specifications sourced from machine-tools.victortaichung.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Trunnion table with A-axis tilt from -120 to 30 deg and full C rotation
- 12000 rpm BBT-40 spindle directly coupled to the motor
- Standard Fanuc control for 4+1 axis machining
- Published part envelope of Ø400 x H160 + Ø220 x H250 mm
- Rapid feeds of 32/32/32 m/min
Limitations
- Full 5-axis control is an option
- 24 tools as standard; a 30 tool magazine is optional
- Table is Ø320 mm (Ø12.59 in) with a 200 kg (440.92 lb) limit
- Motor is 11 / 15 kW (15 / 20 HP), below the AX series
Best For
Frequently Asked Questions
01
As standard it has a Fanuc 0iMF Plus control for 4+1 axis machining. A Siemens 840D SL control with full 5-axis control is on the option list for buyers who need simultaneous contouring.
02
Victor Taichung gives the maximum part dimension as Ø400 x H160 + Ø220 x H250 mm on a Ø320 mm (Ø12.59 in) table, with a load limit of 200 kg (440.92 lb).
03
600 mm (23.62 in) in X, 500 mm (19.68 in) in Y and 500 mm (19.68 in) in Z. The A axis covers -120 ~ 30 deg and the C axis 0 ~ 360 deg.
04
The Vcenter-FX400 has a Ø320 mm (Ø12.59 in) table, 24 tools and 600 mm (23.62 in) of X travel. The Vcenter-AX380 has a Ø380 mm (Ø14.96 in) table, 30 tools and 700 mm (27.55 in) of X travel. Both tilt from -120 to 30 deg.
