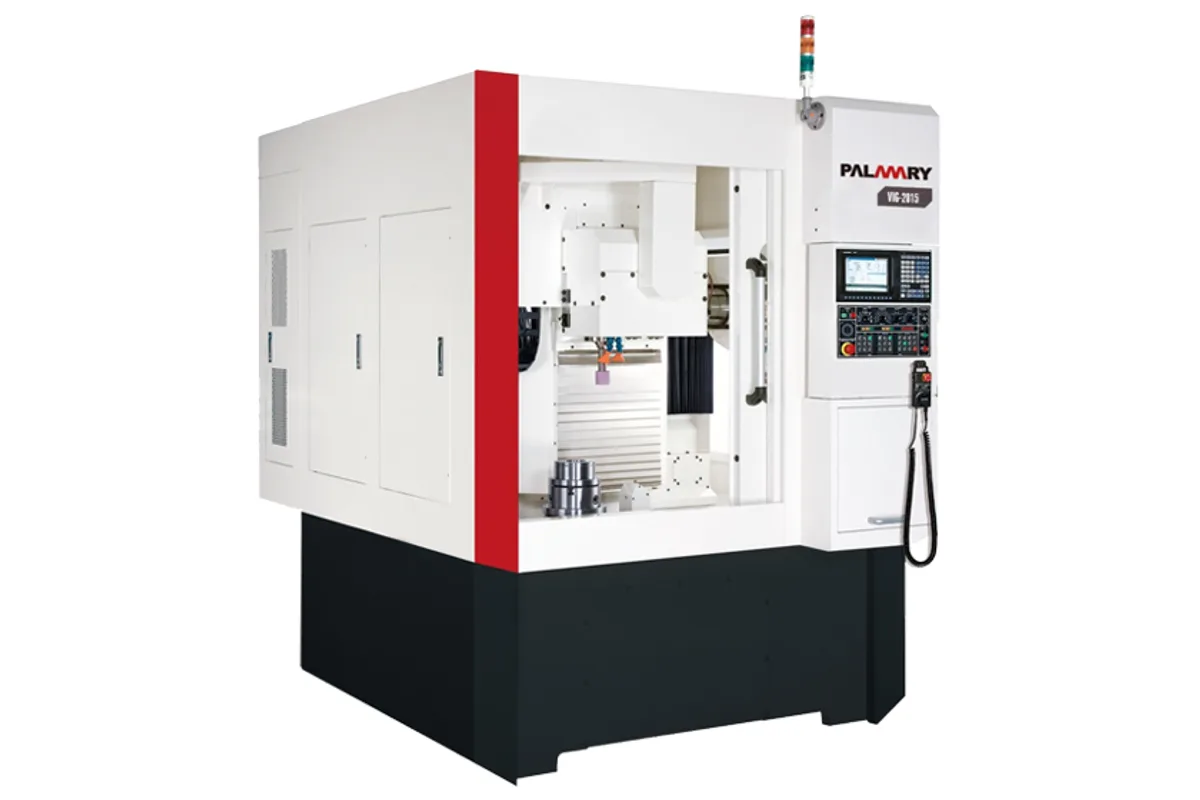

Palmary VIG-2015
Image: palmary.com, Palmary
Key Specifications
Max Spindle
internal grinding range
max grinding diameter
max grinding length
max workpiece swing
max workpiece length
How much does the Palmary VIG-2015 cost?
Price estimate
We do not have a price for the Palmary VIG-2015 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Palmary VIG-2015 is the smallest CNC vertical grinder Palmary makes. The part sits on a Ø200 mm (7.9 in) chuck with its axis vertical and is ground from above by a built-in internal wheel spindle. Workpieces may be up to 150 mm (5.9 in) long, swing Ø300 mm (11.8 in) and weigh 100 kg (220 lb).
Palmary's case for the vertical layout is short. With the part standing on the chuck there is no vibration or run-out from the weight of workpiece and chuck, irregular shapes are easy to chuck, and parts whose bore is not symmetric with their outside can be ground on bore and end face.
The internal grinding range is Ø14 to 200 mm, with a note that bore length should stay within three times its diameter. Wheels of Ø10 to 65 mm run at 10,000 to 45,000 rpm for a wheel speed of 45 m/s (8,858 ft/min). The spindle motor is 3.0 kW, and the table gives its torque as 1.1 Nm at S1. The work spindle is stronger, 3.5 kW (4.7 hp), at 40 to 800 rpm.
X travels 500 mm (19.7 in) and Z 400 mm (15.7 in) on linear guideways, at feeds up to 6 m/min, with fully closed loop scales on both. The base is a honeycomb tubular design. A FANUC CNC controller with a current-based gap control function is standard, operated through Palmary's own graphic dialogue screen. The machine weighs 5,500 kg (12,125 lb) and draws 32 kVA.
Full Specifications
| Parameter | Value |
|---|---|
| Internal Grinding Range | Ø14~200 mm |
| Max Grinding Diameter | Ø200 mm (7.9 in) |
| Max Grinding Length | 150 mm (5.9 in) |
| Max Workpiece Swing | Ø300 mm (11.8 in) |
| Max Workpiece Length | 150 mm (5.9 in) |
| Max Workpiece Load | 100 kg (220 lb) |
| Max Spindle Speed | 10,000-45,000 rpm |
| Wheel Diameter | Ø10~65 mm |
| Wheel Peripheral Speed | 45 m/s (8,858 ft/min) |
| Work Spindle Speed | 40-800 rpm |
| Chuck Size | Ø200 mm (7.9 in) |
| X Axis Travel | 500 mm (19.7 in) |
| X Axis Feed Speed | 0-6 m/min (0-236 ipm) |
| X Axis Min Setting Unit | 0.001 mm |
| X Axis Mpg Increments | 0.001, 0.01, 0.1 mm |
| Z Axis Travel | 400 mm (15.7 in) |
| Z Axis Feed Speed | 0-6 m/min (0-236 ipm) |
| Z Axis Min Setting Unit | 0.001 mm |
| Z Axis Mpg Increments | 0.001, 0.01, 0.1 mm |
| Slide Ways | Linear guideway |
| Workhead Motor | 3.5 kW (4.7 hp) |
| Wheel Spindle Motor | 3.0 kW; Torque : S1 = 1.1 Nm, S6 = 1.5 Nm |
| X Axis Motor | 1.6 kW (2.1 hp) |
| Z Axis Motor | 1.6 kW (2.1 hp) |
| B Axis Motor | 2.0 kW (2.7 hp) |
| Coolant Pump Motor | 0.75 kW (1.0 hp) |
| Power Requirement | 32 kVA |
| Air Supply | 0.7 MPa & 1,800 NL/min |
| Coolant Tank | 140 L (37.0 gal) |
| Spindle Oil Cooler Tank | 15 L (4.0 gal) |
| Machine Weight | 5,500 kg (12,125 lb) |
| CNC Control | FANUC CNC controller (included current gap control function) |
Specifications sourced from palmary.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Vertical layout: no run-out from the weight of workpiece and chuck, according to Palmary
- Internal grinding range of Ø14 to 200 mm with a 10,000 to 45,000 rpm built-in spindle
- Fully closed loop digital scales on X and Z as standard
- FANUC CNC controller with gap control function included
- 3.5 kW (4.7 hp) work spindle for parts up to 100 kg (220 lb)
Limitations
- Workpiece length and grinding length limited to 150 mm (5.9 in)
- Wheel spindle motor torque of 1.1 Nm at S1 restricts stock removal
- No automatic wheel change, unlike the larger VIG-50
- Needs compressed air at 0.7 MPa as well as 32 kVA of electrical supply
Best For
Frequently Asked Questions
01
Bores from Ø14 to 200 mm and outside diameters up to Ø200 mm (7.9 in), on parts up to 150 mm (5.9 in) long standing on a Ø200 mm (7.9 in) chuck. Palmary notes that end faces and parts with a bore that is not symmetric to the outside shape can also be ground.
02
Palmary gives three reasons: no vibration or run-out caused by the self-weight of workpiece and chuck, the ability to grind non-symmetric parts on bore and end face, and easy chucking of irregularly shaped workpieces.
03
X axis traverse 500 mm (19.7 in) and Z axis traverse 400 mm (15.7 in), each at 0 to 6 m/min with a 0.001 mm minimum setting unit. The slide ways are linear guideways, and the handwheel moves 0.001, 0.01 or 0.1 mm per graduation.
04
A FANUC CNC controller including a current gap control function is standard. Palmary lists a Mitsubishi CNC controller as an optional accessory. The operating screens are a graphic dialogue interface that Palmary says it developed itself.
