Palmary OCA-3265H

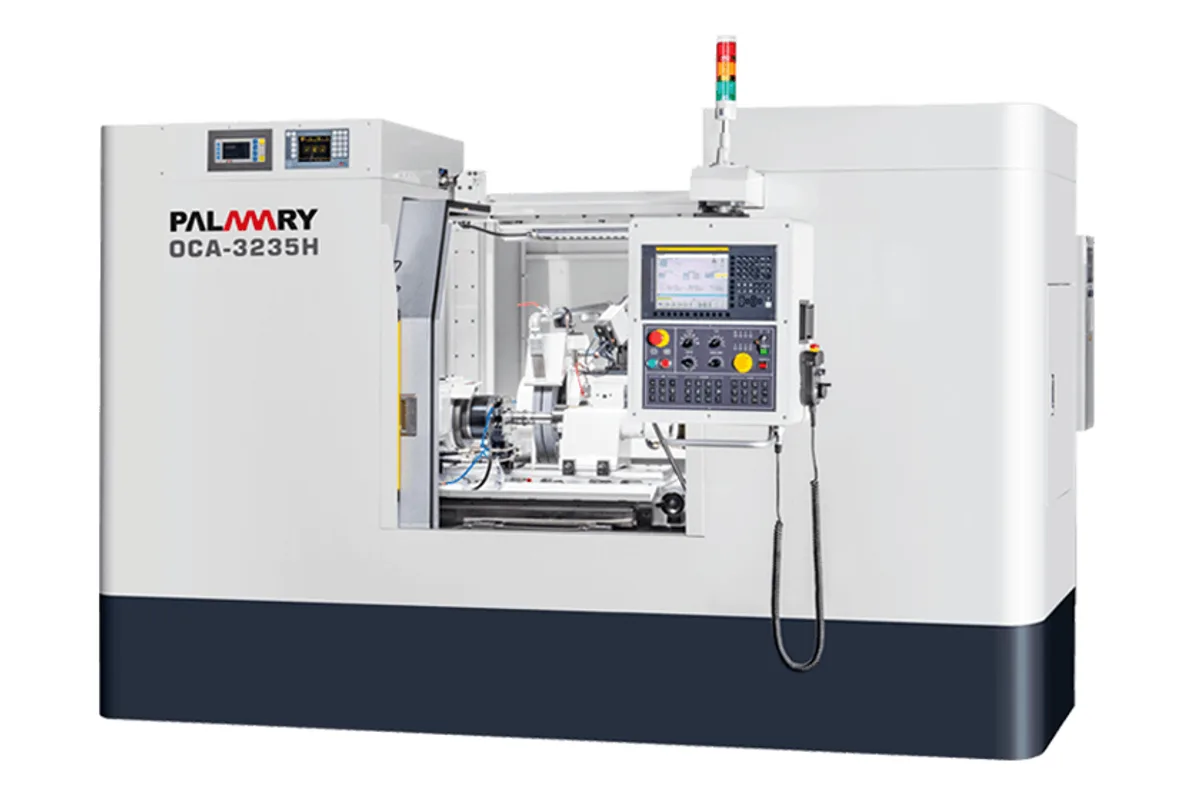

Image: palmary.com, Palmary
Key Specifications
swing over table
distance between centers
max grinding diameter
max load between centers
wheel size
wheel peripheral speed
How much does the Palmary OCA-3265H cost?
Price estimate
We do not have a price for the Palmary OCA-3265H that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Palmary OCA-3265H is the 650 mm (25.6 in) version of Palmary's wide-wheel CNC plunge cylindrical grinder. It swings Ø320 mm (12.6 in), grinds to Ø300 mm (11.8 in) and carries 150 kg (331 lb) between centers.
A longer plunge grinder is for shafts with more than one wide seat. With 1,200 mm (47.2 in) of table stroke the wheel can plunge at one position, traverse at 10 m/min (394 ipm) and plunge again, all within a single clamping. The table feed is a 1.4 kW (1.9 hp) AC servo and the wheelhead feed 2.5 kW (3.4 hp), with a 0.001 mm minimum setting unit on X.
Palmary's page makes two claims about the grinding end that the table does not repeat. The wheel drive is variable frequency and, Palmary says, can reach a cutting speed of up to 60 m/s; the table's linear velocity row gives 33 m/s (6,496 ft/min). And the wheel spindle is described as taking a wheel up to 125 mm wide, where the table gives 80 mm with 150 mm optional. The motor is 11 kW (14.8 hp).
No weight is printed for this model; the weight row is filled only for the shortest machine in the group. Slides are hydro-static, the tailstock is a taper fine adjustment type, and the control is a FANUC CNC that Palmary describes as conversational. An outside diameter measuring system is offered as an option. Total power is 24 kVA.
Full Specifications
| Parameter | Value |
|---|---|
| Swing Over Table | Ø320 mm (12.6 in) |
| Distance Between Centers | 650 mm (25.6 in) |
| Max Grinding Diameter | Ø300 mm (11.8 in) |
| Max Load Between Centers | 150 kg (331 lb) |
| Wheel Size | Ø610 x 80 (opt:150) x Ø203.2 mm |
| Wheel Peripheral Speed | 33 m/s (6,496 ft/min) |
| X Axis Rapid Traverse | 10 m/min (394 ipm) |
| X Axis Travel | 360 mm (14.2 in) |
| X Axis Min Setting Unit | 0.001 mm |
| Z Axis Rapid Traverse | 10 m/min (394 ipm) |
| Z Axis Travel | 1,200 mm (47.2 in) |
| Z Axis Min Input Increment | 0.001 mm |
| Table Swivel Angle | 0°~10° |
| Workhead Swivel Angle | -30°~+90° |
| Workhead Center Taper | M.T. No. 4 |
| Work Spindle Speed | 0-300 rpm |
| Max Load of Work Spindle | 35 kg (77 lb) (max. length: 150 mm) |
| Tailstock Center Taper | M.T. No. 4 |
| Tailstock Stroke | 25 mm (1.0 in) |
| Tailstock Fine Adjustment Range | ±0.03 mm (±0.0012 in) |
| Wheel Spindle Motor | 11 kW (14.8 hp) |
| Workhead Motor | 0.8 kW (1.1 hp) |
| Wheelhead Feed Motor | 2.5 kW (3.4 hp) |
| Table Feed Motor | 1.4 kW (1.9 hp) |
| Hydrostatic Pump Motor | 0.37 kW (0.5 hp) (4P) |
| Wheel Spindle Lubrication Pump Motor | 0.37 kW (0.5 hp) (4P) |
| Coolant Pump Motor | 0.18 kW (0.2 hp) (2P) |
| Ballscrew Lubrication | Auto lubricator (LUBE) |
| Internal Grinding Spindle Motor Optional | 0.75 kW (1.0 hp) (2P) |
| Power Requirement | 24 kVA |
| Wheel Spindle Lubrication Tank | 31 L (8.2 gal) |
| Lubrication Tank | 31 L (8.2 gal) |
| Hydraulic Tank | 31 L (8.2 gal) |
| Ballscrew Lubrication Tank | 0.7 L (0.2 gal) |
| Coolant Tank | 230 L (60.8 gal) |
| CNC Control | FANUC CNC controller |
Specifications sourced from palmary.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 1,200 mm (47.2 in) of table stroke for several plunge positions on a 650 mm (25.6 in) part
- 11 kW (14.8 hp) wheel motor with variable frequency speed control
- 2.5 kW (3.4 hp) wheelhead feed servo with 0.001 mm minimum setting unit
- Conversational FANUC CNC control, with an outside diameter measuring system as an option
Limitations
- Palmary prints no machine weight for this model
- Wheel width and wheel speed are stated differently in the table and in the text
- 150 kg (331 lb) between centers
- Table swivel of 0° to 10°, in one direction only
Best For
Frequently Asked Questions
01
650 mm (25.6 in) between centers, Ø320 mm (12.6 in) swing, Ø300 mm (11.8 in) maximum external grinding diameter. X stroke is 360 mm (14.2 in) and Z stroke 1,200 mm (47.2 in). Load between centers is 150 kg (331 lb).
02
The specification table gives a linear velocity of 33 m/s (6,496 ft/min). Palmary's description says the variable frequency wheel speed control can reach a maximum cutting speed of 60 m/s. Which applies depends on the wheel and guarding supplied, so have it confirmed.
03
Palmary's table does not say. The weight row gives 5,600 kg (12,346 lb) for the OCA-3235H and is blank for this model. Request the weight and floor plan with the quotation; the supply requirement is listed as 24 kVA.
04
A FANUC CNC controller, fully enclosed splash guard, grinding wheel and flange, flange extractor, fixed-type diamond tool holder, taper fine adjustment tailstock, linear scale for the X axis, carbide tipped work centers and the hydraulic and coolant tanks with pumps.
