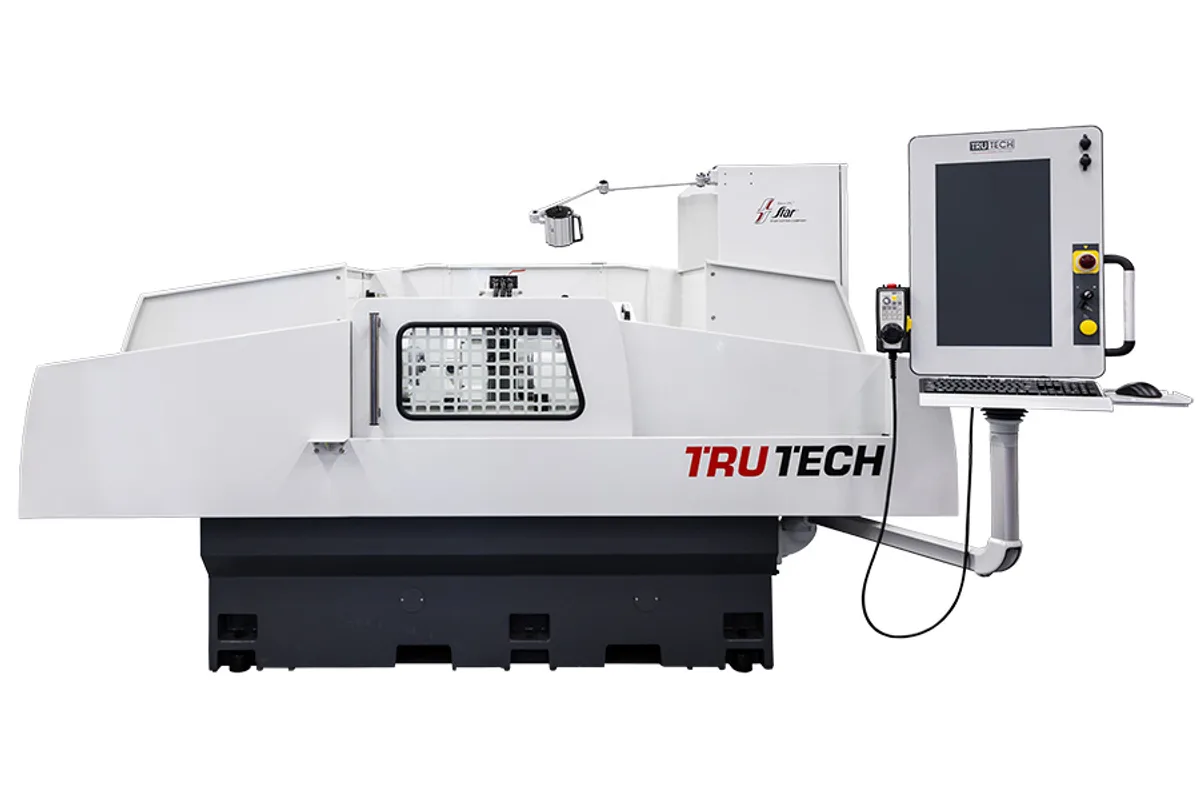

Star SU TRU TECH TT1020M
Image: star-su.com, Star SU
Key Specifications
swing over table
distance between centers
max grinding diameter
max load between centers
center distance spindle to slide table
quill travel
How much does the Star SU TRU TECH TT1020M cost?
Price estimate
We do not have a price for the Star SU TRU TECH TT1020M that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Star SU TRU TECH TT1020M is a precision OD grinder that works between centers: 10 in (254 mm) of swing over the table, 20 in (508 mm) between centers and a maximum grinding diameter of 9 in (229 mm). Unlike the centerless TRU TECH models it holds the workpiece on centers, so every diameter is ground true to one axis.
Load capacity between centers is 176 lbs (80 kg). The centers are MT3, with MT4 as an option, the quill travels 1 in (25 mm), and the distance from the spindle center to the slide table is 5 in (127 mm). A hydraulic tailstock is on the option list for repeated loading.
Star Cutter programs the machine with its icon-based Conversational Software and states that operators can program shapes and profiles in minutes. Profiles are produced with a standard 1A1 wheel, and the listed operations are profile grinding and plunge grinding. Training and maintenance modules are built in.
The standard machine has a semi-enclosed splash guard and in that form weighs 6,840 lbs (3,104 kg) net and 8,380 lbs (3,802 kg) gross. Telescoping safety splash doors are an option. So are an ID spindle attachment, probing for length and part orientation, an oil chiller with 5 µm filtration, several diamond and rotary dressing systems and SBS wheel balancing. The maker's table gives no wheel size, spindle power or accuracy figure for this model.
Full Specifications
| Parameter | Value |
|---|---|
| Swing Over Table | 10 in (254 mm) |
| Distance Between Centers | 20 in (508 mm) |
| Max Grinding Diameter | 9 in (229 mm) |
| Max Load Between Centers | 176 lbs (80 kg) |
| Center Distance Spindle to Slide Table | 5 in (127 mm) |
| Quill Travel | 1 in (25 mm) |
| Center Taper | MT3 (optional MT4) |
| Machine Weight | 6,840 lbs (3,104 kg) net, with semi-enclosed splash guard |
| Gross Weight | 8,380 lbs (3,802 kg) |
Specifications sourced from star-su.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 20 in (508 mm) between centers and a 9 in (229 mm) maximum grinding diameter
- Carries up to 176 lbs (80 kg) between centers
- Icon-based Conversational Software for programming shapes and profiles at the machine
- A standard 1A1 wheel produces the profiles, so formed wheels are not needed
Limitations
- The table states no spindle power, wheel size or accuracy; these have to be requested
- The splash guard is semi-enclosed as standard; telescoping safety splash doors are an option
- Listed for profile and plunge grinding, without the peel grinding listed for the TRU TECH T23XM
Best For
Frequently Asked Questions
01
Swing over the table is 10 in (254 mm), distance between centers is 20 in (508 mm) and maximum grinding diameter is 9 in (229 mm). The heaviest part that can be held between centers is 176 lbs (80 kg).
02
MT3 as standard, with MT4 as an option. Quill travel is 1 in (25 mm), and a hydraulic tailstock is available as an option for faster loading. The distance from the spindle center to the slide table is 5 in (127 mm).
03
With the icon-based Conversational Software. The maker states that operators can program shapes and profiles in minutes, and that training and maintenance modules are built in. Optional precision probing adjusts for part length and part orientation automatically.
04
Both grind between centers set 20 in apart. The TRU TECH T23XM table lists an 8 in (200 mm) maximum grind diameter, a 14 in (350 mm) wheel and a 7 hp (5.2 kW) spindle, and that machine is fully enclosed. The TT1020M has a 9 in (229 mm) maximum grinding diameter and a semi-enclosed splash guard, and its table gives no spindle or wheel figures.
