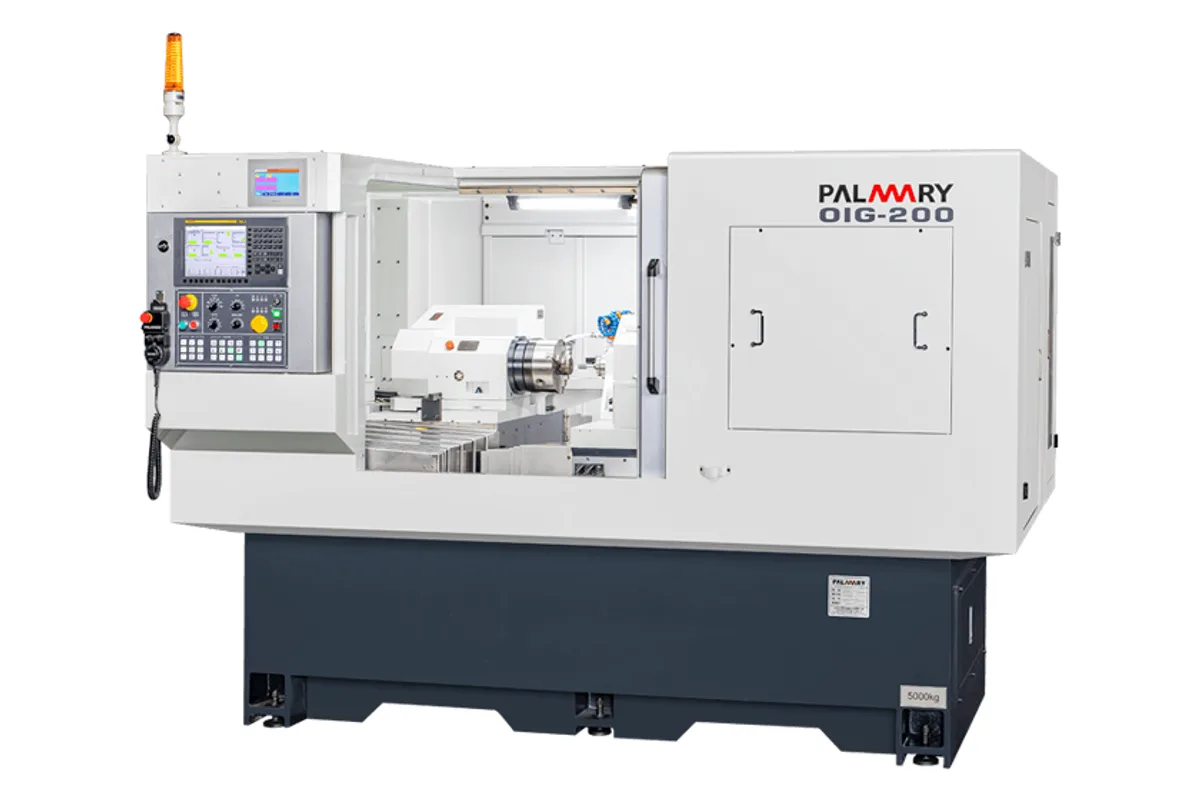

Palmary OIG-200
Image: palmary.com, Palmary
Key Specifications
Max Spindle
max chuck diameter
max internal grinding diameter
max workpiece length
wheel spindle diameter
x axis travel
How much does the Palmary OIG-200 cost?
Price estimate
We do not have a price for the Palmary OIG-200 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Palmary OIG-200 is a CNC internal grinder with one wheel spindle, for bores up to Ø150 mm (5.9 in) in parts up to 200 mm (7.9 in) long held in a chuck of up to Ø200 mm (7.9 in). It is the base model of the OIG-200 family.
The wheel spindle is a Ø90 mm (3.5 in) cartridge running at 10,000 to 50,000 rpm on a 1.5 kW (2.0 hp) motor, belt driven with automatic belt tension adjustment according to the accessory list. That speed range fits small to medium bores; a spare spindle is an option for shops that switch between sizes.
Both axes are generous for a chucker. X and Z each travel 480 mm (18.9 in) on roller type linear guideways, with 1.8 kW (2.4 hp) servo motors, and the feed axis carries an optical scale. Palmary says the machine can grind an internal hole, an end face and an outer diameter in one setting, which the long X travel makes room for.
What sets the OIG-200 apart from its longer siblings is the workhead. It swivels from +7° to -8°, so tapered bores are ground by angling the part, whereas the OIG-200L35 and OIG-200L50 are limited to +1° to -1°. Work spindle speed is listed as 0 to 500 or 0 to 800 rpm with a 0.75 kW (1.0 hp) motor, and the spindle carries 50 kg (110 lb). A FANUC CNC controller and full enclosure are standard. Weight is 4,700 kg (10,362 lb).
Full Specifications
| Parameter | Value |
|---|---|
| Max Chuck Diameter | Ø200 mm (7.9 in) |
| Max Internal Grinding Diameter | Ø150 mm (5.9 in) |
| Max Workpiece Length | 200 mm (7.9 in) |
| Wheel Spindle Diameter | Ø90 mm (3.5 in) |
| Max Spindle Speed | 10,000-50,000 rpm |
| X Axis Travel | 480 mm (18.9 in) |
| X Axis Min Setting Unit | 0.001 mm |
| Z Axis Rapid Traverse | 10 m/min (394 ipm) |
| Z Axis Travel | 480 mm (18.9 in) |
| Z Axis Min Setting Unit | 0.001 mm |
| Workhead Swivel Angle | +7°~-8° |
| Work Spindle Center Taper | MT 6 |
| Work Spindle Speed | 0-500 / 0-800 rpm |
| Max Load of Work Spindle | 50 kg (110 lb) |
| Wheel Spindle Motor | 1.5 kW (2.0 hp) |
| Workhead Motor | 0.75 kW (1.0 hp) |
| X Axis Motor | 1.8 kW (2.4 hp) |
| Z Axis Motor | 1.8 kW (2.4 hp) |
| Hydraulic Pump Motor | 0.75 kW (1.0 hp) |
| Coolant Pump Motor | 0.09 kW |
| Coolant Tank | 70 L (18.5 gal) |
| Machine Weight | 4,700 kg (10,362 lb) |
| CNC Control | FANUC CNC controller |
Specifications sourced from palmary.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Workhead swivels +7° to -8° for tapered bores
- 480 mm (18.9 in) of travel on both X and Z, on roller type linear guideways
- Bore, end face and outer diameter in one setting, according to Palmary
- Linear scale on the X axis and FANUC CNC controller as standard accessories
- Wheel spindle speed range of 10,000 to 50,000 rpm
Limitations
- Maximum workpiece length of 200 mm (7.9 in)
- Wheel motor of 1.5 kW (2.0 hp); the 2.25 kW option is listed for the OIG-200L35 and OIG-200L50
- Chucks are optional accessories
- One wheel spindle, so a second diameter range means a spindle or quill change
Best For
Frequently Asked Questions
01
Up to Ø150 mm (5.9 in) in internal diameter, in a workpiece up to 200 mm (7.9 in) long. The maximum chuck outer diameter is Ø200 mm (7.9 in) and the work spindle carries 50 kg (110 lb) with the holder included.
02
One internal wheel spindle with a Ø90 mm (3.5 in) outer diameter and a speed of 10,000 to 50,000 rpm, driven by a 1.5 kW (2.0 hp) motor. A spare spindle, a rotary dresser for CBN wheels and a wheelhead oil lubricator are optional.
03
The OIG-200L35 takes parts up to 350 mm (13.8 in) long, has a 2.25 kW (3.0 hp) workhead motor and weighs 5,000 kg (11,023 lb), but its workhead swivels only +1° to -1°. The OIG-200 takes 200 mm (7.9 in), swivels +7° to -8° and weighs 4,700 kg (10,362 lb).
04
Palmary says automatic loading and unloading equipment is available for mass production, to give fully automatic operation. Quick fixtures for gears and a hydraulic 3-jaw chuck are listed among the optional accessories.
