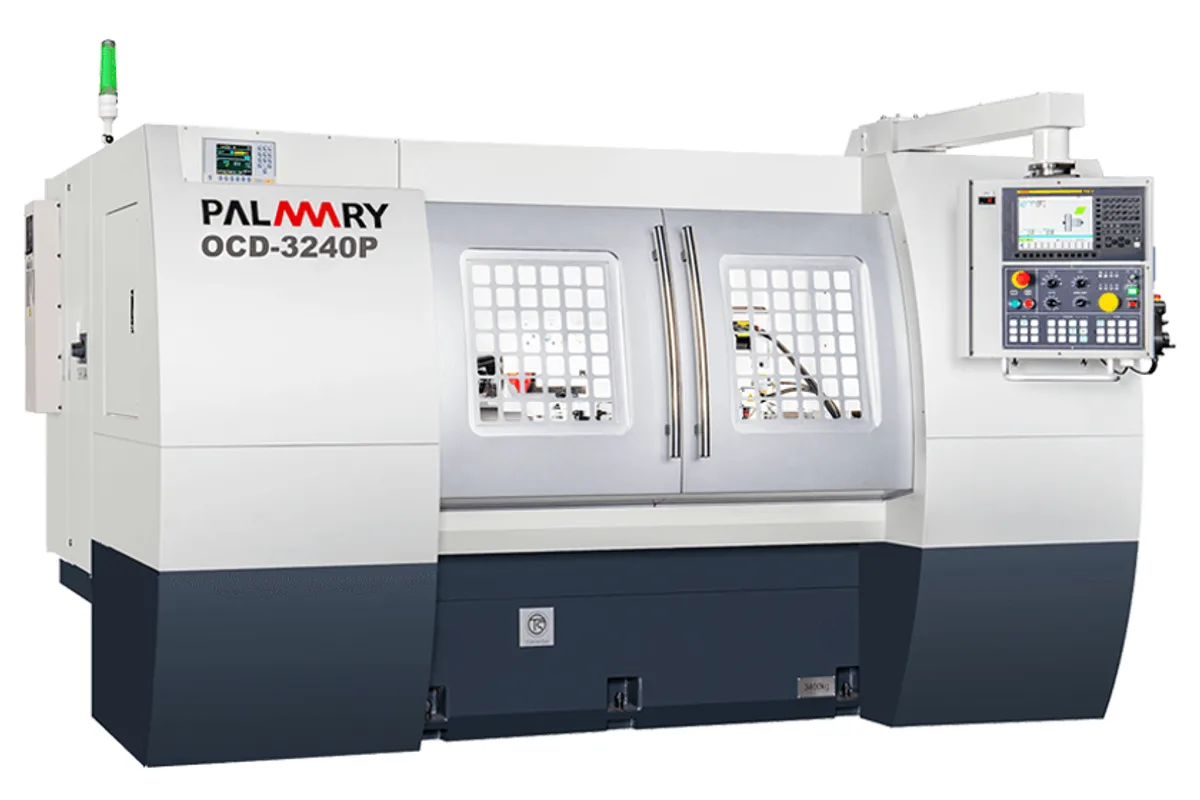

Palmary OCD-3240P
Image: palmary.com, Palmary
Key Specifications
swing over table
distance between centers
max grinding diameter
max load between centers
wheel size
wheel peripheral speed
How much does the Palmary OCD-3240P cost?
Price estimate
We do not have a price for the Palmary OCD-3240P that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Palmary OCD-3240P is the 400 mm (15.7 in) model of Palmary's CNC plunge grinders with angular wheelhead, and the one featured in the series video. It swings Ø320 mm (12.6 in) over the table and grinds diameters to Ø300 mm (11.8 in).
Set beside the standard OCD-3240 the differences are few but telling. The P machine takes a wheel of Ø455 to 510 mm, up to 80 mm wide, where the OCD-3240 takes Ø405 mm and up to 75 mm. Its table stroke is 818 mm (32.2 in) where the OCD-3240 has 665 mm (26.2 in). And it is heavier, 4,250 kg (9,369 lb) against 3,300 kg (7,275 lb) for the OCD-3240. More wheel, more stroke, more iron: the recipe for plunge work, where the whole wheel face cuts at once.
Grinding power is 5.5 kW (7.4 hp). That is the same as the standard machine, so a full 80 mm plunge on tough material will be feed-limited by the motor rather than by the structure. The workhead motor is 1.0 kW (1.3 hp) with a range of 10 to 300 rpm.
The table swivels 0° to 10° and the workhead from -30° to +90°. Centers are No. 4 Morse taper and carry 150 kg (331 lb). The X axis has 260 mm (10.2 in) of stroke and a linear scale. FANUC control and full enclosure are standard; power is 18 kVA.
Full Specifications
| Parameter | Value |
|---|---|
| Swing Over Table | Ø320 mm (12.6 in) |
| Distance Between Centers | 400 mm (15.7 in) |
| Max Grinding Diameter | Ø300 mm (11.8 in) |
| Max Load Between Centers | 150 kg (331 lb) |
| Wheel Size | Ø455~510 x 50~80 x Ø127 mm |
| Wheel Peripheral Speed | 33 m/s (6,496 ft/min) |
| X Axis Rapid Traverse | 10 m/min (394 ipm) |
| X Axis Travel | 260 mm (10.2 in) |
| X Axis Min Setting Unit | 0.001 (0.0001) mm |
| Z Axis Rapid Traverse | 10 m/min (394 ipm) |
| Z Axis Travel | 818 mm (32.2 in) |
| Z Axis Min Input Increment | 0.001 (0.0001) mm |
| Table Swivel Angle | 0°~10° |
| Workhead Swivel Angle | -30°~+90° |
| Workhead Center Taper | M.T. No. 4 |
| Work Spindle Speed | 10-300 rpm |
| Max Load of Work Spindle | 35 kg (77 lb) (max. length: 150 mm) |
| Tailstock Center Taper | M.T. No. 4 |
| Tailstock Stroke | 25 mm (1.0 in) |
| Tailstock Fine Adjustment Range | ±0.03 mm (±0.0012 in) |
| Wheel Spindle Motor | 5.5 kW (7.4 hp) (6P) |
| Workhead Motor | 1.0 kW (1.3 hp) (4P) Frequency |
| Wheelhead Feed Motor | 1.2 kW (1.6 hp) |
| Table Feed Motor | 1.8 kW (2.4 hp) |
| Hydrostatic Pump Motor | 0.37 kW (0.5 hp) (4P) |
| Wheel Spindle Lubrication Pump Motor | 0.37 kW (0.5 hp) (4P) |
| Coolant Pump Motor | 0.18 kW (0.2 hp) (2P) |
| Ballscrew Lubrication | Auto lubricator (LUBE) |
| Power Requirement | 18 kVA |
| Wheel Spindle Lubrication Tank | 31 L (8.2 gal) |
| Lubrication Tank | 31 L (8.2 gal) |
| Hydraulic Tank | 31 L (8.2 gal) |
| Ballscrew Lubrication Tank | 0.7 L (0.2 gal) |
| Coolant Tank | 120 L (31.7 gal) |
| Machine Weight | 4,250 kg (9,369 lb) |
| CNC Control | FANUC CNC controller |
Specifications sourced from palmary.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Wheel of Ø455 to 510 mm, up to 80 mm wide, for shoulder-and-diameter plunge grinding
- 818 mm (32.2 in) of table stroke, longer than on the standard OCD-3240
- 4,250 kg (9,369 lb) of machine weight behind a 400 mm (15.7 in) center distance
- FANUC CNC controller, X-axis linear scale and full enclosure are standard accessories
Limitations
- Wheel motor is 5.5 kW (7.4 hp), no more than on the standard model
- Table swivel is limited to 0° to 10°
- No internal grinding attachment in this model's option list
- Almost as heavy as the longer OCD-3280P at 4,300 kg (9,480 lb)
Best For
Frequently Asked Questions
01
Plunge grinding. Palmary lists it in its CNC plunge grinding series with angular wheelhead. Capacity is Ø300 mm (11.8 in) in diameter and 400 mm (15.7 in) between centers, with a wheel that can be up to Ø510 mm and 80 mm wide.
02
Center distance, swing and wheel motor match. The OCD-3240 has a Ø405 mm wheel, a 665 mm (26.2 in) table stroke and weighs 3,300 kg (7,275 lb). The OCD-3240P has a Ø455 to 510 mm wheel, an 818 mm (32.2 in) table stroke and weighs 4,250 kg (9,369 lb).
03
X axis: 260 mm (10.2 in) stroke, 10 m/min (394 ipm) rapid, 0.001 mm minimum setting unit, 1.2 kW (1.6 hp) AC servo. Z axis: 818 mm (32.2 in) stroke, 10 m/min (394 ipm) rapid, 1.8 kW (2.4 hp) AC servo. Ballscrews are lubricated automatically.
04
The work spindle is rated for 35 kg (77 lb) with the holder included, at a maximum length of 150 mm. Between centers the limit is 150 kg (331 lb). An adjustable 3-jaw scroll chuck and an adjustable 4-jaw chuck are optional accessories.
