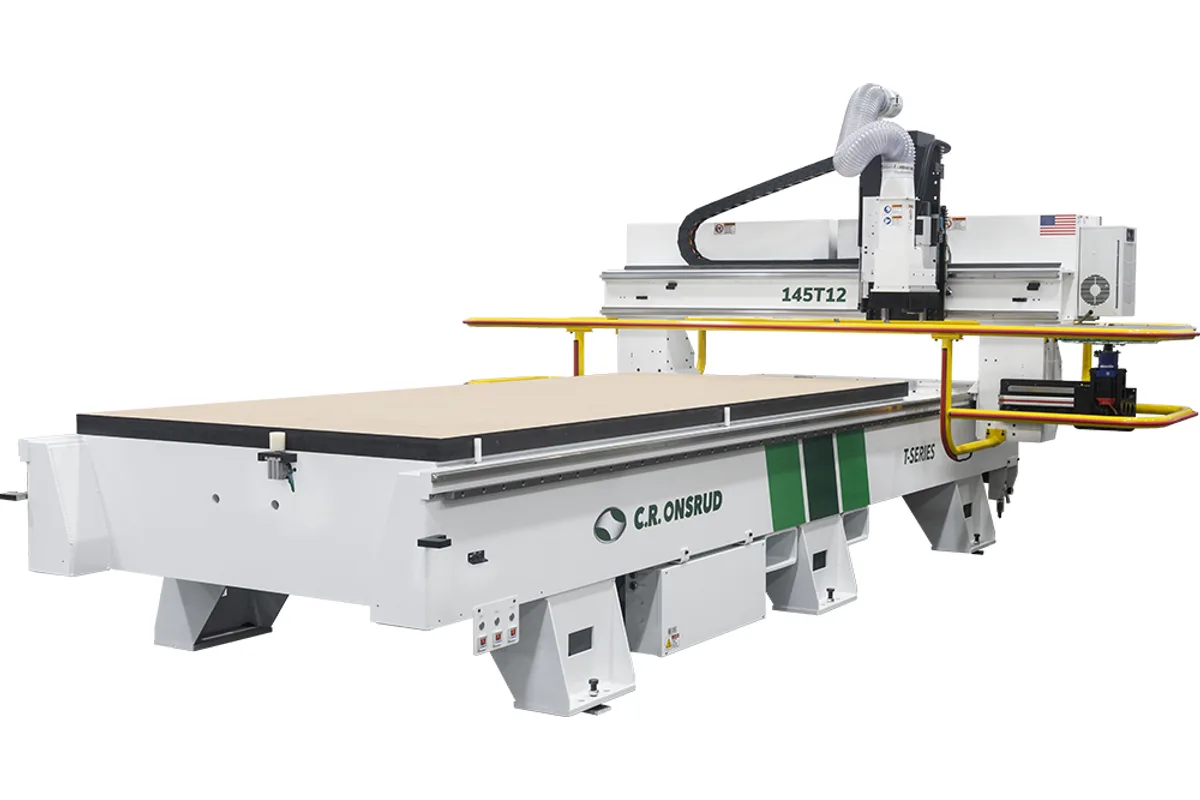

Onsrud 145T
Image: cronsrud.com, Onsrud
Key Specifications
Max Spindle
Tool Capacity
Spindle Power
table size x
table size y
machine length
How much does the Onsrud 145T cost?
Price estimate
We do not have a price for the Onsrud 145T that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Onsrud 145T is the single table size of the T-Series, a 3-axis moving-gantry router that Onsrud builds for panel processing with automation around it. The table is 145 in (3,683 mm) by 61 in (1,550 mm), the standard spindle is 12 hp (8.9 kW) at 24,000 rpm, and the Z-stroke is 11 in (279 mm).
On paper it resembles the 145M: same table, same standard spindle, same 3 vacuum zones. The difference is the gantry. Onsrud describes a deep bridge that handles heavy loads and can support the weight of large drill blocks, and the frame is correspondingly bigger at 247 in (6,274 mm) long, 152 in (3,861 mm) wide and 99 in (2,515 mm) high.
That bridge is why the T-Series lists an 18 hp (13.4 kW) spindle upgrade, a second spindle and a second tool changer. Cabinet and casework lines that drill rows of shelf-pin holes and then rout the profile are the obvious fit: the drill block does the boring in one plunge while the 12-tool changer serves the router spindle.
The standard control is FANUC, with Onsrud's touchscreen interface as the alternative. Infeed and outfeed systems are sold as additions, so the base machine can start as a hand-loaded router.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size X | 145 in (3,683 mm) |
| Table Size Y | 61 in (1,550 mm) |
| Machine Length | 247 in (6,274 mm) |
| Machine Width | 152 in (3,861 mm) |
| Machine Height | 99 in (2,515 mm) |
| Vacuum Zones Standard | 3 |
| Spindle Motor Power | 12 hp (8.9 kW) |
| Max Spindle Speed | 24,000 rpm |
| Tool Capacity | 12 (larger capacity tool changers optional) |
| Z Stroke | 11 in (279 mm) |
| Spindle Power Optional | 18 hp (13.4 kW) |
| Spindles Optional | 2 |
| Second Tool Changer | Optional |
Specifications sourced from cronsrud.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Deep bridge built to carry large drill blocks
- 18 hp (13.4 kW) spindle available as an upgrade over the standard 12 hp (8.9 kW)
- Second spindle and second tool changer are both listed options
- Table of 145 in (3,683 mm) by 61 in (1,550 mm) with 3 vacuum zones
Limitations
- Only one table size is listed for the series
- Frame is 152 in (3,861 mm) wide for a 61 in (1,550 mm) table
- Z-stroke of 11 in (279 mm) with no taller option shown
- The standard spindle is 12 hp (8.9 kW); the larger motor costs extra
Best For
Frequently Asked Questions
01
Both have a 145 in (3,683 mm) by 61 in (1,550 mm) table and a 12 hp (8.9 kW) standard spindle. The 145T has a deep bridge for large drill blocks, an 18 hp (13.4 kW) upgrade and a 152 in (3,861 mm) wide frame; the 145M is 112 in (2,845 mm) wide.
02
The standard spindle is 12 hp (8.9 kW) with a top speed of 24,000 rpm. Onsrud lists an 18 hp (13.4 kW) spindle and a second spindle as upgrades, along with a second tool changer.
03
12 as standard. Larger capacity tool changers are optional, and a second tool changer is on the upgrade list, which keeps tool-change travel short when two spindles are fitted.
04
The machine is 247 in (6,274 mm) long, 152 in (3,861 mm) wide and 99 in (2,515 mm) high. Infeed and outfeed tables add to the length, so lay out the whole line before fixing its position.
