Onsrud 145M
Key Specifications
Max Spindle
Tool Capacity
Spindle Power
table size x
table size y
machine length
How much does the Onsrud 145M cost?
Price estimate
We do not have a price for the Onsrud 145M that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Onsrud 145M is the longest of the standard-width M-Series routers. Table X is 145 in (3,683 mm) and Y is 61 in (1,550 mm), which holds a twelve-foot sheet with clamping margin, and the spindle is the series' 12 hp (8.9 kW), 24,000 rpm unit.
Length is the whole story of this model. It has the same Y, the same 3 vacuum zones and the same 112 in (2,845 mm) machine width as the 121M. What changes is the bed, and with it the machine length of 230 in (5,868 mm).
Buyers comparing it with the 4100M should note that the wider M-Series tables are a different shape of machine. The 4100M offers 83 in (2,109 mm) of Y on a 140 in (3,556 mm) wide frame. The 145M stays narrow, which suits shops that feed long, standard-width panels and want to keep the aisle clear.
Tool capacity is 12 as standard and Z-stroke is 11 in (279 mm). A second and third spindle are listed as upgrades. On a table this long, parking one spindle and using the full bed, which Onsrud describes for larger parts, is a practical way to mix nested small parts with single long ones.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size X | 145 in (3,683 mm) |
| Table Size Y | 61 in (1,550 mm) |
| Machine Length | 230 in (5,868 mm) |
| Machine Width | 112 in (2,845 mm) |
| Machine Height | 91 in (2,312 mm) |
| Vacuum Zones Standard | 3 |
| Spindle Motor Power | 12 hp (8.9 kW) |
| Max Spindle Speed | 24,000 rpm |
| Tool Capacity | 12; 10-position standard with a 4' x 8' table size (larger capacity tool changers optional) |
| Z Stroke | 11 in (279 mm) |
| Spindles Optional | Up to 3 |
| Tool Changer Optional | 10-Pos / Hide-A-Way |
Specifications sourced from cronsrud.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Table X of 145 in (3,683 mm) on a frame only 112 in (2,845 mm) wide
- 3 vacuum zones along the table as standard
- 12 hp (8.9 kW), 24,000 rpm spindle with 12 tools as the standard capacity
- Up to 3 spindles available as an upgrade for parallel cutting
Limitations
- Y is limited to 61 in (1,550 mm); wider sheets need the 3100M family
- No spindle power upgrade is listed
- At 230 in (5,868 mm) it is the longest of the narrow M-Series machines
Best For
Frequently Asked Questions
01
145 in (3,683 mm) in X by 61 in (1,550 mm) in Y, with 3 vacuum zones as standard. The machine is 230 in (5,868 mm) long, 112 in (2,845 mm) wide and 91 in (2,312 mm) high.
02
No. Table Y is 61 in (1,550 mm). Onsrud's wider M-Series tables, such as the 3100M with 83 in (2,109 mm) of Y, are the ones built for wider sheet formats.
03
The series standard is a 12-tool capacity. Onsrud notes that larger capacity tool changers are optional and lists a 10-position Hide-A-Way changer among the upgrades.
04
Onsrud lists panels of wood, plastic, foam, composites, aluminum and other nonferrous materials for the M-Series. With 12 hp (8.9 kW) at the spindle the machine is aimed at sheet and plate work, not deep cuts in thick block.

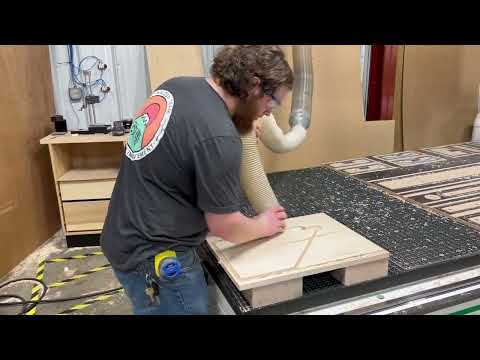

Videos
