Nexturn SA51XII

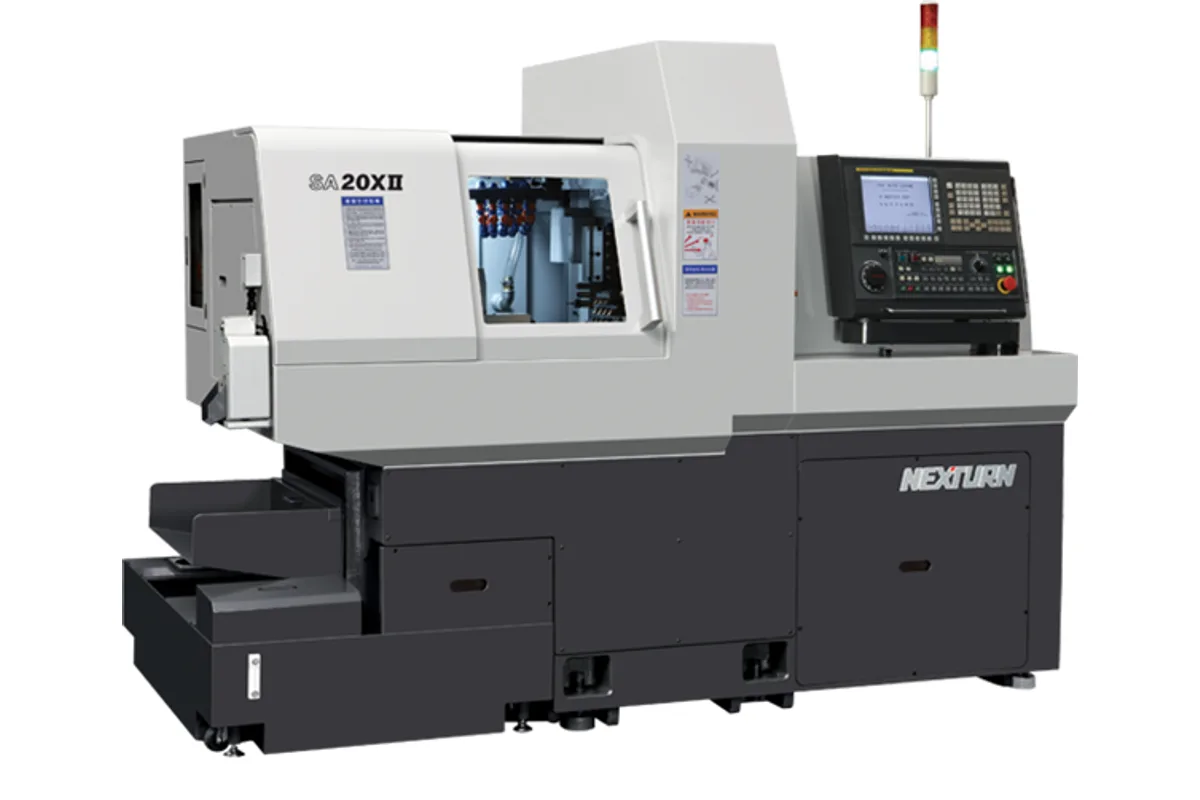

Image: nexturn.co.kr, Nexturn
Key Specifications
Max Spindle
Tool Capacity
Rapid Traverse
Spindle Power
Max Turn Length
bar capacity
How much does the Nexturn SA51XII cost?
Price estimate
We do not have a price for the Nexturn SA51XII that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
At 51 mm (2.0 in), the Nexturn SA51XII has the largest bar capacity of any machine in the SA range. Turning length is 150 mm (5.9 in), both spindles are limited to 6,000 rpm, and the table lists 22 tools on eight axes with a FANUC 0iTF control.
This is the X machine with real drilling capacity. The main spindle is listed for 20 mm (0.8 in) drills and M16 taps, and the cross drill and mill unit has a 2.2 kW (3.0 hp) motor with a 16 mm (0.6 in) and M12 limit. On the SA45XII the cross unit is 1.0 kW (1.3 hp) and stops at 13 mm (0.5 in). A cross disc mill can be 50 mm (2.0 in) in diameter. Back-end face tools stay at 13 mm and M10 on a 1.0 kW (1.3 hp) drive.
Tool positions are the fewest in the X table. There are six OD tools on □20 × 125 mm (0.8 × 4.9 in) shanks, three cross tools and seven ID tools, three of which are live. The back-end station is listed with six tools, Live 3 and Fixed 3, where the SA45XII shows eight. No front-end face tools are listed for the sub spindle.
Nexturn gives the main spindle motor as a single figure, 13.2 kW (17.7 hp), where every other model in the brochure shows a pair of ratings. A sub spindle motor rating is not among the figures listed here, so ask Nexturn for it. Like the SA45XII, this model has built-in spindle motors, a hydraulic disc brake and hydraulic cylinder chucking, and a stated bar remnant of less than 70 mm.
It is a big machine for a Swiss type: 2,600 × 1,750 × 1,900 mm (102.4 × 68.9 × 74.8 in) and 4,200 kg (9,259 lb).
Full Specifications
| Parameter | Value |
|---|---|
| Bar Capacity | 51 mm (2.0 in) |
| Max Turning Length | 150 mm (5.9 in) |
| Main Spindle Drilling Tapping | 20 mm (0.8 in) / M16 |
| Sub Spindle Chucking Diameter | 51 mm (2.0 in) |
| Back End Face Drilling Tapping | 13 mm (0.5 in) / M10 |
| Cross Drilling Tapping | 16 mm (0.6 in) / M12 |
| Cross Disc Mill Diameter | 50 mm (2.0 in) |
| Max Spindle Speed | 6,000 rpm |
| Sub Spindle Speed | 6,000 rpm |
| Cross Spindle Speed | 6,000 rpm |
| Tool Capacity | 22 |
| OD Cross ID Tools | 6 / 3 / 7 (Live 3) |
| Back End Face Tools | 6 (Live 3, Fixed 3) |
| Turning Tool Shank | □20 × 125 mm (0.8 × 4.9 in) |
| Rapid Traverse Rate | 24 m/min |
| Controlled Axes | 8 |
| Main Spindle Positioning | Cs + 1/1,000° |
| Sub Spindle Positioning | Cs + 1/1,000° |
| Spindle Motor Power | 13.2 kW (17.7 hp) |
| Cross Drill Mill Motor | 2.2 kW (3.0 hp) |
| Back End Face Tool Motor | 1.0 kW (1.3 hp) |
| Coolant Pump Motor | 1.5 kW (2.0 hp) |
| Lubrication Pump Motor | 0.04 kW (0.05 hp) |
| Coolant Tank | 300 L |
| Center Height | 1,100 mm (43.3 in) |
| Machine Dimensions | 2,600 × 1,750 × 1,900 mm (102.4 × 68.9 × 74.8 in) |
| Machine Weight | 4,200 kg (9,259 lb) |
| CNC Control | FANUC 0iTF |
| Axis Designation | X1, Z1, Y1, X2, Z2, Y2, C1, C2 |
| Min Input Increment | 0.001 mm |
| Cutting Feed Rate | 1~6,000 mm/min |
| Tool Offsets | 64 sets |
| Program Memory | 1 Mbyte |
| Registerable Programs | 800 sets |
Specifications sourced from nexturn.co.kr — verified 2026-10-05
Strengths & Limitations
Strengths
- 51 mm (2.0 in) bar capacity, the largest in Nexturn's SA range
- 20 mm (0.8 in) on-centre drilling and M16 tapping on the main spindle
- 2.2 kW (3.0 hp) cross unit drilling to 16 mm (0.6 in) and tapping M12
- Built-in spindle motors with hydraulic disc brake and hydraulic cylinder chucking
- 150 mm (5.9 in) of turning length, longer than the 120 mm (4.7 in) of the SA45XII
Limitations
- 22 tools, the lowest count in the X table
- Three cross tools and six back-end tools, fewer than the SA45XII has
- 6,000 rpm spindle limit and 24 m/min rapid traverse
- No sub spindle motor rating is listed here; it has to be confirmed with the supplier
- Widest machine of the X type at 1,750 mm
Best For
Frequently Asked Questions
01
51 mm (2.0 in), and the sub spindle chucks the same diameter. Maximum turning length is 150 mm (5.9 in). Nexturn states a bar remnant of less than 70 mm for this model and fits a hydraulic cylinder chucking system for cutting at maximum diameter.
02
The SA51XII takes larger bar and drills bigger holes: 20 mm (0.8 in) on centre and 16 mm (0.6 in) across, with a 2.2 kW (3.0 hp) cross unit. The SA45XII has more tool positions, 24 against 22, and is narrower and lighter at 4,000 kg (8,818 lb). Both are limited to 6,000 rpm.
03
The main spindle motor is listed at 13.2 kW (17.7 hp), as one figure. A sub spindle rating is not among the listed figures and should be requested from Nexturn. Cross tools have 2.2 kW (3.0 hp), back-end tools 1.0 kW (1.3 hp) and the coolant pump 1.5 kW (2.0 hp).
04
The machine alone is 2,600 × 1,750 × 1,900 mm (102.4 × 68.9 × 74.8 in) and weighs 4,200 kg (9,259 lb). Centre height is 1,100 mm (43.3 in) and the coolant tank holds 300 L. A bar feeder, which is optional, adds to the length.
