Momentum MVL-15
Image: selectmachiningtech.com, Momentum
Key Specifications
Spindle Taper
Tool Capacity
Table Size
Spindle Power
model variants
max swing diameter
How much does the Momentum MVL-15 cost?
Price estimate
We do not have a price for the Momentum MVL-15 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview

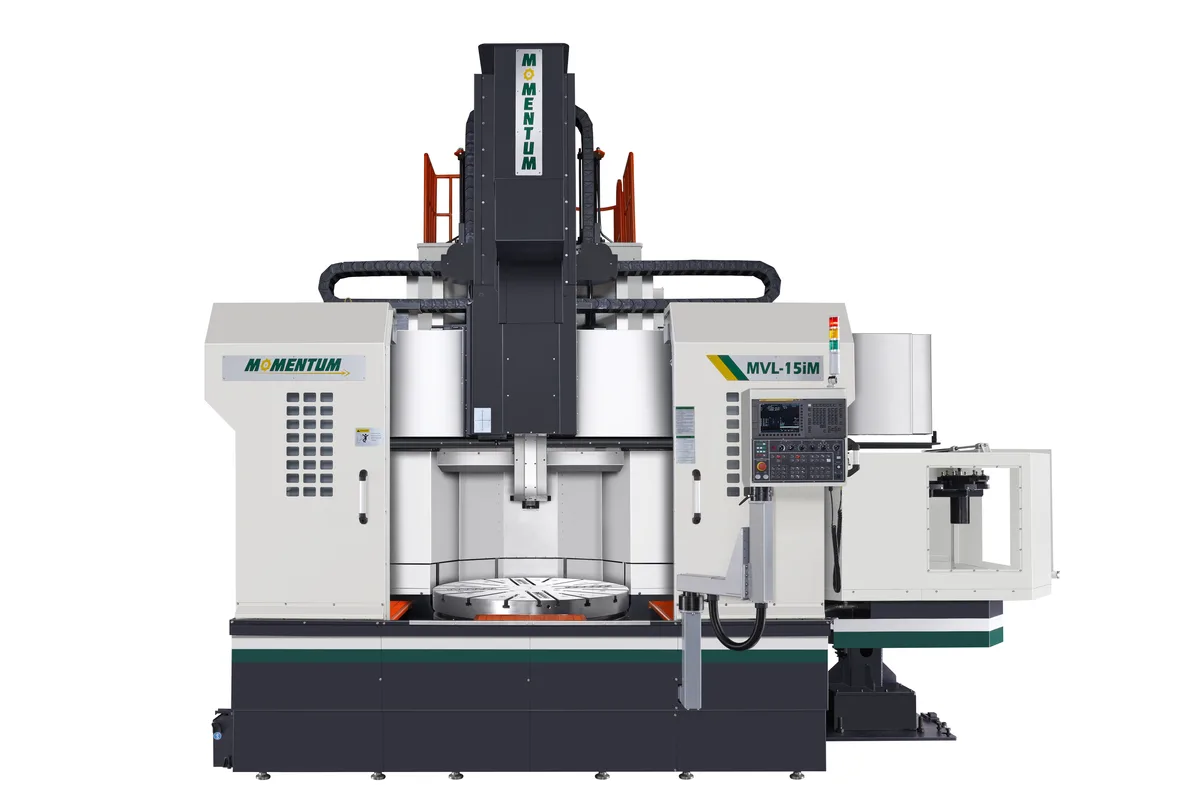

The Momentum MVL-15 is the tall member of the Ø1,600 mm (62.99 in) pair in the MVL range: a vertical turning lathe with a Ø1,450 mm (57.08 in) table and 1,325 mm (52.16 in) of turning height with the B79 holder. Table load is 8,000 kg (17,637 lb) and maximum table torque 19,000 Nm (14,014 lb-ft).
Its swing, load, torque and weight match the MVL-12HD figure for figure. The differences are the table and the vertical room. The MVL-12HD has a Ø1,250 mm (49.21 in) table and 1,145 mm (45.12 in) of turning height. On this machine the table is nearer the full swing, so big rings sit on the table instead of on jaw extensions, and tall housings and casings clear the ram. The distance from the table to the clamp pitch line is 1,500 mm (59.00 in).
Table speeds are listed as 0-103 rpm in low gear and 80-312 rpm in high gear, with the 55 / 45 kW (73.7 / 60.3 hp) main table motor. The top speed is a little under the 345 rpm of the MVL-12HD, a reasonable trade for the larger table.
Height is reached in two stages. The cross rail travels 500 mm (19.68 in) in 2 steps to 3 positions, and the 254 x 254 mm (10 x 10 in) ram adds a 1,000 mm (39.37 in) stroke. For a tall part the rail goes up and the ram stays short and stiff; for a low disc the rail comes down. X travel is listed from -820 to +965 mm.
The 2-axis MVL-15-SR has a 16-tool changer. The MVL-15iM-SR and MVL-15M-SR hold 15 tools plus 1 cover and add a Dual Contact CAT-50 milling spindle of 22 / 18.5 kW (29.5 / 25 hp); the -M is listed at 0-3,000 rpm and 820 Nm (604 ft-lb), the -iM at 620 Nm (455 ft-lb). Coolant capacity is 592 L (157 gal).
Full Specifications
| Parameter | Value |
|---|---|
| Model Variants | MVL-15-SR (2-axis), MVL-15iM-SR (-iM), MVL-15M-SR (-M) |
| Max Swing Diameter | Ø1,600 mm (62.99 in) |
| Max Turning Diameter | Ø1,600 mm (62.99 in) |
| Table Size | Ø1,450 mm (57.08 in) |
| Max Turning Height | 1,325 mm (52.16 in) (B79 holder) |
| Height Table to Clamp Pitch Line | 1,500 mm (59.00 in) |
| Max Table Load | 8,000 kg (17,637 lb) |
| CNC Control | FANUC 0i-TF Plus |
| Spindle Motor Power | 55 / 45 kW (73.7 / 60.3 hp) main table motor |
| Table Speed | 0-103 rpm (low gear) / 80-312 rpm (high gear) |
| Max Table Torque | 19,000 Nm (14,014 lb-ft) |
| X Axis Travel | -820 to +965 mm |
| Z Axis Travel | 1,000 mm (39.37 in) ram stroke |
| Cross Rail | 500 mm (19.68 in) travel, 2 steps, 3 positions |
| Rapid Traverse Xz | 10 m/min (393.7 in/min) |
| Cutting Feed Rate | 1-2,000 mm/min (0.039-78.74 in/min) |
| Tool Capacity | 16 (2-axis) / 15 + 1 cover (-iM and -M) |
| Ram Cross Section | 254 x 254 mm (10 x 10 in) |
| Tooling Attachment Clamp Force | 8 ton, 77.5 kN (17,422 lbf), 24-tooth curvic coupling |
| Axis Servo Motors | 7 kW (9.4 hp) with 3:1 reduction (X and Z) |
| Milling Spindle Power | 22 / 18.5 kW (29.5 / 25 hp), -iM and -M only |
| Milling Spindle Speed | 0-3,000 rpm, -M |
| Milling Spindle Torque | 820 Nm (604 ft-lb) -M / 620 Nm (455 ft-lb) -iM |
| Spindle Taper | Dual Contact CAT-50 (-M and -iM) |
| C Axis Range | Cf axis, 7 kW (9.4 hp) motor with 360:1 reduction (-M); Cs positioning via main motor (-iM) |
| Coolant Tank | 592 L (157 gal) |
| Power Requirement | 3-phase 460 V ±10%, 60 Hz ±1%; 175 A main breaker, 139 kVA |
| Machine Weight | 28,850 kg (63,603 lb) |
Specifications sourced from selectmachiningtech.com — verified 2026-09-25
Strengths & Limitations
Strengths
- 1,325 mm (52.16 in) of turning height, the taller of the two Ø1,600 mm (62.99 in) models
- Ø1,450 mm (57.08 in) table, close to the full Ø1,600 mm (62.99 in) swing
- Table torque of 19,000 Nm (14,014 lb-ft) and an 8,000 kg (17,637 lb) load rating
- Cross rail with 500 mm (19.68 in) of travel in 3 positions keeps the ram short on low parts
- On the -M version the milling spindle runs 0-3,000 rpm with 820 Nm (604 ft-lb)
Limitations
- Table speed peaks at 312 rpm in high gear
- Load rating stays at 8,000 kg (17,637 lb) despite the bigger table; the MVL-16 takes 10,000 kg (22,046 lb)
- X travel of -820 to +965 mm is the same as on the MVL-12HD, so the larger table brings no extra cross travel
- The -iM version has 620 Nm (455 ft-lb) of milling torque and positions the table through the main motor as a Cs axis, without a separate Cf drive
- At 28,850 kg (63,603 lb) with a 175 A main breaker requirement, installation needs planning
Best For
Frequently Asked Questions
01
Maximum turning height is 1,325 mm (52.16 in) with the B79 holder, and the height from the table to the clamp pitch line is 1,500 mm (59.00 in). The cross rail can be set in 3 positions over 500 mm (19.68 in) of travel, and the ram has a 1,000 mm (39.37 in) stroke, so the rail is raised for tall parts and lowered for short ones.
02
Largely, with more height as well. The MVL-15 has a Ø1,450 mm (57.08 in) table and 1,325 mm (52.16 in) of turning height. The MVL-12HD has a Ø1,250 mm (49.21 in) table, 1,145 mm (45.12 in) of turning height and a slightly faster table at up to 345 rpm. Swing, table load, table torque and machine weight are listed the same for both.
03
The table row lists 0-103 rpm in low gear and 80-312 rpm in high gear. The main table motor is rated 55 / 45 kW (73.7 / 60.3 hp) and maximum table torque is 19,000 Nm (14,014 lb-ft). Low gear is where the torque is used for roughing large diameters; high gear serves finishing and smaller diameters.
04
Either the MVL-15iM-SR or the MVL-15M-SR; the MVL-15-SR is turning only. Both milling versions use a Dual Contact CAT-50 spindle of 22 / 18.5 kW (29.5 / 25 hp). The -M has 820 Nm (604 ft-lb), a 0-3,000 rpm range and a Cf axis with its own 7 kW (9.4 hp) motor and 360:1 reduction. The -iM has 620 Nm (455 ft-lb) and Cs positioning via the main motor.
