Goodway GLS-2800

Q: How much does the Goodway GLS-2800 cost?

The price estimate for the Goodway GLS-2800 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/goodway-gls-2800#price; the request is passed to Goodway or an authorised dealer.

Specs verified 2026-10-04 · goodwaycnc.com Updated 2026-10-04

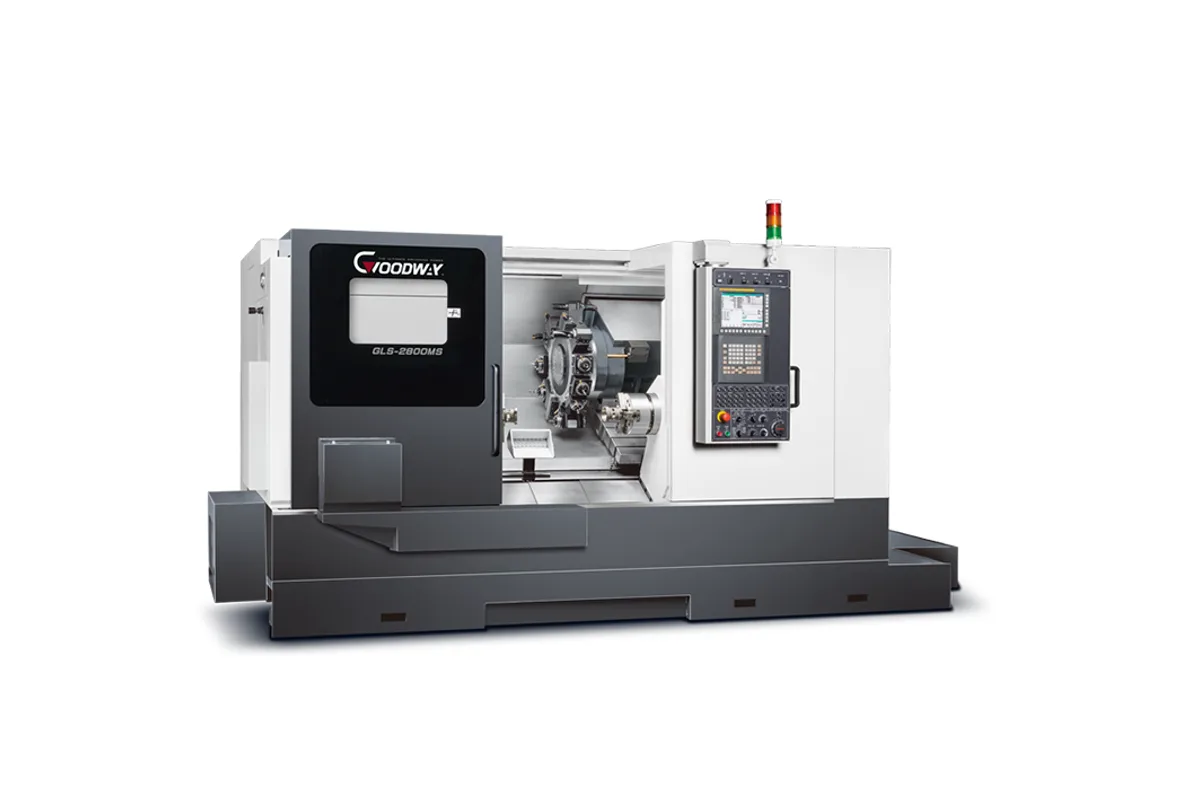

Goodway GLS-2800 / GLS-3300 series high speed turning centers (GLS-2800)

Image: goodwaycnc.com, Goodway

Key Specifications

Max Spindle

3,500 rpm

Max Turn Length

720 mm (28.3 in) / 1,220 mm (48.0 in)

max swing diameter

Ø760 mm (29.9 in)

max turning diameter

Ø440 mm (17.3 in)

bar capacity

Ø75 mm (3.0 in)

spindle power high speed

11 kW (14.8 hp) (cont.)

How much does the Goodway GLS-2800 cost?

Price estimate

Uncertain

We do not have a price for the Goodway GLS-2800 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Goodway GLS-2800 is a Ø75 mm (3.0 in) bar capacity turning center on linear guideways, with a 3,500 rpm spindle and a choice of 720 mm (28.3 in) or 1,220 mm (48.0 in) of turning length. It is the smaller of two models on this bed; the GLS-3300 has the bigger bore and motor.

Goodway's table gives the spindle motor two windings. On the high-speed winding it is rated 11 kW (14.8 hp) continuous, on the low-speed winding 7.5 kW (10.1 hp) continuous, and both reach 15 kW (20.1 hp) on the 30 min. rating. In practice that means full short-term power is available at the low end for roughing as well as at speed.

The envelope is Ø440 mm (17.3 in) of turning diameter under a Ø760 mm (29.9 in) swing, 250 mm (9.8 in) of X travel and 750 mm (29.5 in) or 1,250 mm (49.2 in) of Z travel. A 30° slant bed carries the 12 or 10-station servo turret.

Live tooling on this series is faster than on Goodway's smaller GLS models: 6,000 rpm, on either a 12-station turret with ER32 collets or a 16-station turret with ER25. The optional Y-axis moves 100 mm (3.9 in), ±50 mm, and limits turning diameter to Ø400 mm (15.7 in). The optional sub-spindle passes Ø51 mm (2.0 in) bar, runs to 4,000 rpm (5,000 rpm optional) and is rated 7.5 kW (10.1 hp) continuous, 11 kW (14.8 hp) for 30 min. Goodway lists the tailstock as an option with 600 mm (23.6 in) of base travel.

Full Specifications

Parameter	Value
Max Swing Diameter	Ø760 mm (29.9 in)
Max Turning Diameter	Ø440 mm (17.3 in)
Max Turning Length	720 mm (28.3 in) / 1,220 mm (48.0 in)
Bar Capacity	Ø75 mm (3.0 in)
Spindle Power High Speed	11 kW (14.8 hp) (cont.)
Spindle Power Low Speed	7.5 kW (10.1 hp) (cont.)
Spindle Power High Speed 30 Min	15 kW (20.1 hp) (30 min.)
Spindle Power Low Speed 30 Min	15 kW (20.1 hp) (30 min.)
Max Spindle Speed	3,500 rpm
X Axis Travel	250 mm (9.8 in)
Z Axis Travel	750 mm (29.5 in) / 1,250 mm (49.2 in)
Turret Stations	12 / 10
Live Tooling 12 Station Turret Stations	12 (opt.)
Live Tooling 12 Station Shank Size	ER32 (opt.)
Live Tooling 12 Station Speed	6,000 rpm (opt.)
Live Tooling 16 Station Turret Stations	16 (opt.)
Live Tooling 16 Station Shank Size	ER25 (opt.)
Live Tooling 16 Station Speed	6,000 rpm (opt.)
Max Turning Diameter with Y Axis	Ø400 mm (15.7 in) (opt.)
Y Axis Travel	100 mm (3.9 in) (±50 mm (±2.0 in)) (opt.)
Tailstock Quill Center Taper	MT#4 (live center) (opt.)
Tailstock Quill Diameter	Ø70 mm (2.8 in) (opt.)
Tailstock Quill Travel	150 mm (5.9 in) (opt.)
Tailstock Base Travel	600 mm (23.6 in) (opt.)
Sub Spindle Bar Capacity	Ø51 mm (2.0 in) (opt.)
Sub Spindle Speed Max	4,000 rpm (opt. 5,000 rpm) (opt.)
Sub Spindle Power	7.5 kW (10.1 hp) (cont.) (opt.)
Sub Spindle Power 30 Min	11 kW (14.8 hp) (30 min.) (opt.)

Specifications sourced from goodwaycnc.com — verified 2026-10-04

Strengths & Limitations

Strengths

Dual-winding spindle motor: 15 kW (20.1 hp) on the 30 min. rating in both high-speed and low-speed ranges
6,000 rpm live tooling on a 12-station (ER32) or 16-station (ER25) turret
Turning length of 720 mm (28.3 in) or 1,220 mm (48.0 in)
Optional sub-spindle with Ø51 mm (2.0 in) bar capacity and an 11 kW (14.8 hp) 30 min. rating

Limitations

Low-speed winding is 7.5 kW (10.1 hp) continuous
The tailstock is listed as an option
Turning diameter drops to Ø400 mm (15.7 in) with the Y-axis
Bar capacity is Ø75 mm (3.0 in); the GLS-3300 passes Ø90 mm (3.5 in)

Best For

Bar and shaft work up to Ø75 mm (3.0 in) stock Mill-turn parts that need 6,000 rpm driven tools Shafts up to 1,220 mm (48.0 in) on the L bed Done-in-one parts using the optional sub-spindle and Y-axis

Frequently Asked Questions

01 What are the spindle ratings of the GLS-2800?

Maximum speed is 3,500 rpm. The motor has two windings: high-speed, rated 11 kW (14.8 hp) continuous, and low-speed, rated 7.5 kW (10.1 hp) continuous. Each is rated 15 kW (20.1 hp) for 30 min. Bar capacity is Ø75 mm (3.0 in).

02 Which live tooling turrets fit the GLS-2800?

Two optional turrets are listed. The 12-station turret takes ER32 collets and the 16-station turret takes ER25. Both run live tools at 6,000 rpm. The standard turret, without driven tools, has 12 or 10 stations.

03 How does the GLS-2800 compare with the GLS-3300?

The GLS-3300 passes Ø90 mm (3.5 in) bar, runs to 3,000 rpm and has an 18.5 kW (24.8 hp) 30 min. motor rating. The GLS-2800 passes Ø75 mm (3.0 in), runs to 3,500 rpm and is rated 15 kW (20.1 hp) for 30 min. Travels, swing and options are the same.

04 What Y-axis travel does the GLS-2800 have?

The optional Y-axis has 100 mm (3.9 in) of travel, ±50 mm from center. With it fitted, maximum turning diameter is Ø400 mm (15.7 in) instead of Ø440 mm (17.3 in). It is part of the Y and YS variations.
