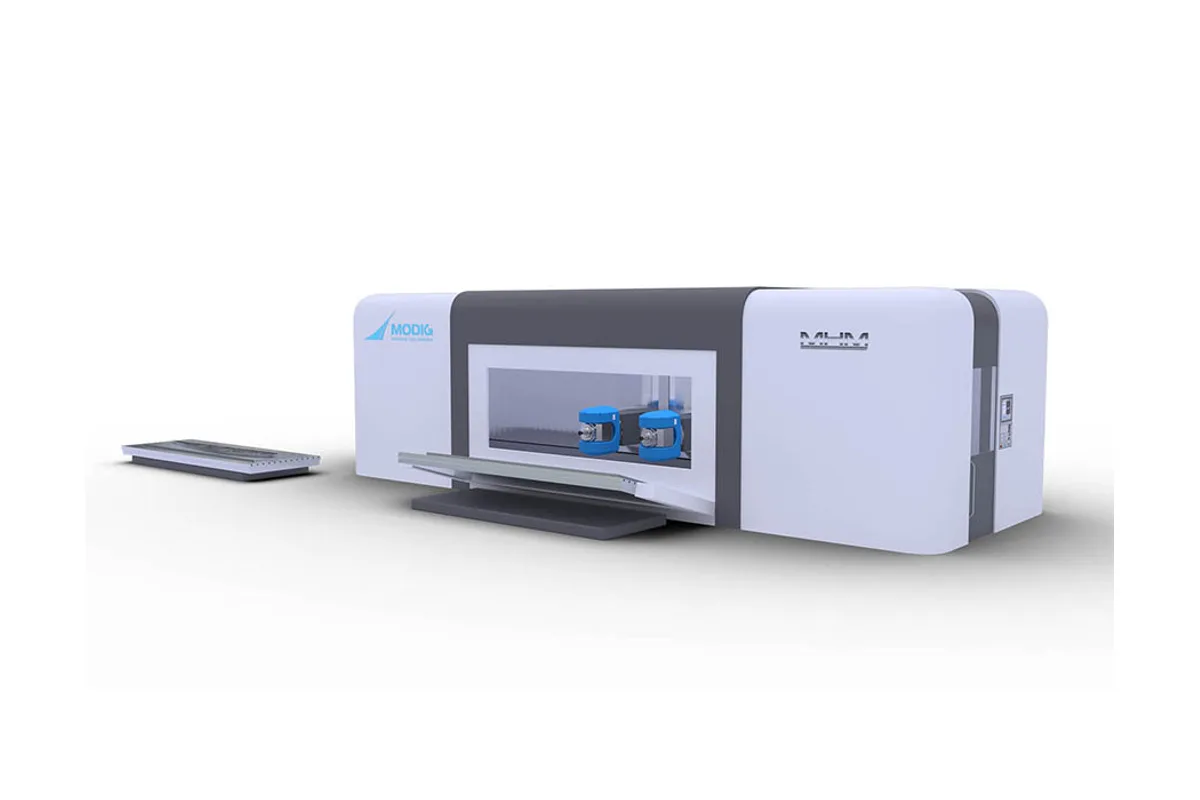

Modig MHM
Image: modig.se, Modig
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Spindle Power
orientation
spindle count
How much does the Modig MHM cost?
Price estimate
We do not have a price for the Modig MHM that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Modig MHM is a horizontal machining center for large aluminum and composite parts, built around pallets from 4,000 x 1,000 mm (157.5 x 39.5 in) to 8,000 x 2,500 mm (315 x 98.5 in) and available with 1 or 2 spindles. X travel is 4,200, 6,200 or 8,200 mm (165.3, 244 or 323 in) and Y travel is 1,000, 1,500, 2,000 or 2,500 mm (39.5, 59, 79 or 98.5 in). Z travel is 700 mm (27.5 in) on every size.
Each X travel is slightly longer than the matching pallet length of 4,000, 6,000 or 8,000 mm (157.5, 236 or 315 in), and the four Y travels equal the four pallet widths, so the spindle covers the whole pallet face. Pallets are loaded by a sliding or a tilting system. The table says nothing more about either, so ask Modig how each one handles the pallet size you need.
The spindle figures point to fast, light cuts: up to 30,000 rpm and up to 150 kW (201 hp) S1, with torque of up to 88 Nm (65 ft-lbs) S1. High power with low torque means the power arrives at high speed, which is how aluminum is cut, and it agrees with the listed materials. Interfaces are HSK-A63, HSK-A63/80 or HSK-A100, and the magazine holds 120 tools. The table does not say how those tools are shared when 2 spindles are fitted.
Linear axes feed at 60 m/min (2,400 in/min) and accelerate at 7 m/s² (23 ft/s²). A covers +/- 110 degrees and C +/- 360 degrees, both at 420 degrees/sec with 2,500 degrees/s² of acceleration. The control is listed as Fanuc 500i-A or Siemens One. Next to the FlexiMill, which is listed at up to 125 kW (168 hp) S1 with HSK-63A only, the MHM has the larger power figure and three interface choices but a fixed 120 tools against up to 300.
Full Specifications
| Parameter | Value |
|---|---|
| Orientation | Horizontal |
| Spindle Count | 1 or 2 |
| X Axis Travel | 4,200 / 6,200 / 8,200 mm (165.3 / 244 / 323 in) |
| Y Axis Travel | 1,000 / 1,500 / 2,000 / 2,500 mm (39.5 / 59 / 79 / 98.5 in) |
| Z Axis Travel | 700 mm (27.5 in) |
| A Axis Range | +/- 110 degrees |
| C Axis Range | +/- 360 degrees |
| Pallet Size | 4,000 / 6,000 / 8,000 x 1,000 / 1,500 / 2,000 / 2,500 mm (157.5 / 236 / 315 x 39.5 / 59 / 79 / 98.5 in) |
| Max Spindle Speed | up to 30,000 rpm |
| Spindle Motor Power | up to 150 kW (201 hp) S1 |
| Spindle Torque | up to 88 Nm (65 ft-lbs) S1 |
| Tool Capacity | 120 |
| Spindle Taper | HSK-A63 / HSK-A63/80 / HSK-A100 |
| Feed Rate Xyz | 60 m/min (2,400 in/min) |
| Feed Rate A C | 420 degrees/sec |
| Acceleration Xyz | 7 m/s² (23 ft/s²) |
| Acceleration A C | 2,500 degrees/s² |
| CNC Control | Fanuc 500i-A or Siemens One |
| Pallet Loading | Sliding or tilting pallet loading system |
| Materials | Aluminum and composite |
Specifications sourced from modig.se — verified 2026-10-03
Strengths & Limitations
Strengths
- Pallets from 4,000 x 1,000 mm (157.5 x 39.5 in) up to 8,000 x 2,500 mm (315 x 98.5 in), with sliding or tilting pallet loading
- Available with 1 or 2 spindles; speed is up to 30,000 rpm and power up to 150 kW (201 hp) S1
- A and C axes feed at 420 degrees/sec with 2,500 degrees/s² of acceleration
- Three interface choices: HSK-A63, HSK-A63/80 or HSK-A100
- Y travel in four steps from 1,000 mm (39.5 in) to 2,500 mm (98.5 in), matching the pallet widths
- Control is a choice of Fanuc 500i-A or Siemens One
Limitations
- Spindle torque is up to 88 Nm (65 ft-lbs) S1, so heavy low-speed cuts are outside what the table supports
- Z travel is 700 mm (27.5 in) on every size, which limits part depth however large the pallet
- Aluminum and composite are the only materials listed
- Tool capacity is a single figure, 120, with no larger magazine listed
- No tool change time, pallet load or part weight appears in the table
Best For
Frequently Asked Questions
01
Pallet length is 4,000, 6,000 or 8,000 mm (157.5, 236 or 315 in) and pallet width is 1,000, 1,500, 2,000 or 2,500 mm (39.5, 59, 79 or 98.5 in). X travel is 4,200, 6,200 or 8,200 mm (165.3, 244 or 323 in), Y travel matches the four pallet widths, and Z travel is 700 mm (27.5 in). Pallets are loaded by a sliding or a tilting system.
02
One or two spindles can be fitted. Speed is up to 30,000 rpm, power up to 150 kW (201 hp) S1 and torque up to 88 Nm (65 ft-lbs) S1. The interface is HSK-A63, HSK-A63/80 or HSK-A100. The table does not say which interface goes with the top speed or power, so ask for the rating of the specific spindle quoted.
03
The table does not support it. Modig lists aluminum and composite as the materials, and spindle torque is up to 88 Nm (65 ft-lbs) S1, which is a high-speed spindle rating. Within Modig's range the IM-8 is a model listed with a 550 Nm (406 ft-lbs) torque option.
04
The control row lists Fanuc 500i-A or Siemens One. No control features or software options are listed beyond the name, so what is included with each choice has to come from Modig's quotation.
05
X, Y and Z feed at 60 m/min (2,400 in/min) with 7 m/s² (23 ft/s²) of acceleration. The A and C axes feed at 420 degrees/sec and accelerate at 2,500 degrees/s². A has a range of +/- 110 degrees and C of +/- 360 degrees.
06
The magazine holds 120 tools. For comparison the FlexiMill is listed with up to 300 and the HHV2 with 12 or 24. The MHM table gives no tool change time and no limits for tool length, diameter or weight.
