Modig Horizontal Machining Centers (HMC)

Modig Mill-Ex

Q: How much does the Modig Mill-Ex cost?

The price estimate for the Modig Mill-Ex is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/modig-mill-ex#price; the request is passed to Modig or an authorised dealer.

Specs verified 2026-10-03 · modig.se Updated 2026-10-03

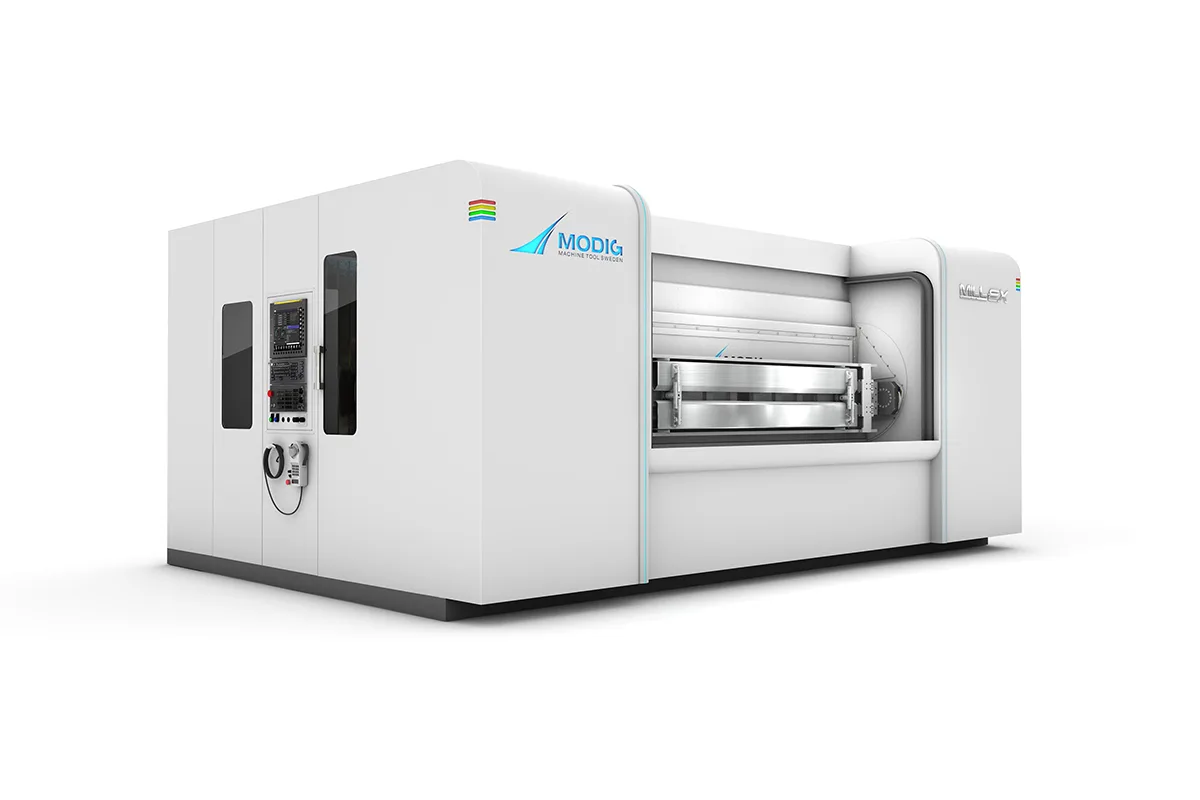

Modig Mill-Ex two-spindle horizontal machining center

Image: modig.se, Modig

Key Specifications

Max Spindle

up to 30,000 rpm

Spindle Taper

HSK-A63

Tool Capacity

20 tools for each spindle

Spindle Power

up to 42 kW (56 hp) S1

orientation

Horizontal

spindle count

How much does the Modig Mill-Ex cost?

Price estimate

Uncertain

We do not have a price for the Modig Mill-Ex that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Modig Mill-Ex is a horizontal twin-spindle machining center for long aluminum and composite parts held in rotary fixtures. It takes parts up to 2,500 mm (100 in) long, within a maximum interference diameter of 520 mm (20 in) and a weight of 500 kg (1,102 lbs). X travel is 2,570 mm (101 in) and Z travel is 360 mm (14 in).

The second spindle is the reason to look at this model. The spindle rows give up to 30,000 rpm and up to 42 kW (56 hp) S1 on HSK-A63, and tool storage is 20 tools for each spindle, so neither spindle waits on a shared magazine. Tool change is listed as 5 sec; the table does not say whether that is chip to chip. How the two spindles divide a part, whether they cut at the same time or work different zones, is not in the table and is the first thing to ask Modig.

The part turns in rotary fixtures at 0-60 rpm. Three rotary axes are listed: A1 and A2 at +/-190 degrees and A3 at 180 degrees. With the part rotating, horizontal spindles can get around the faces of a long section without re-clamping, as long as it stays inside the 520 mm (20 in) interference diameter.

Feed is listed as 0-80 / 0-80 / 0-70 m/min (0-3,150 / 0-3,150 / 0-2,755 in/min) across three linear axes, with 15 m/s² (49 ft/s²) of acceleration. On parts with many short features the acceleration counts for more than the top feed, because the axes rarely reach full speed between cuts. The HHV2 is listed with the same 42 kW (56 hp) S1 and HSK-A63 and with 12 or 24 tools; the Mill-Ex has 2 spindles with 20 tools each.

Full Specifications

Parameter	Value
Orientation	Horizontal
Spindle Count	2
X Axis Travel	2,570 mm (101 in)
Z Axis Travel	360 mm (14 in)
A Axis Range	A1/A2: +/-190 degrees; A3: 180 degrees
Max Part Length	2,500 mm (100 in)
Max Interference Diameter	520 mm (20 in)
Max Part Weight	500 kg (1,102 lbs)
Rotary Fixture Speed	0-60 rpm
Max Spindle Speed	up to 30,000 rpm
Spindle Motor Power	up to 42 kW (56 hp) S1
Tool Capacity	20 tools for each spindle
Spindle Taper	HSK-A63
Tool Change Time	5 sec
Feed Rate Xyz	0-80 / 0-80 / 0-70 m/min (0-3,150 / 0-3,150 / 0-2,755 in/min)
Acceleration	15 m/s² (49 ft/s²)
Materials	Aluminum and composite

Specifications sourced from modig.se — verified 2026-10-03

Strengths & Limitations

Strengths

Two spindles with 20 tools for each spindle, so a tool change on one does not depend on the other
15 m/s² (49 ft/s²) acceleration with feeds of 0-80 / 0-80 / 0-70 m/min (0-3,150 / 0-3,150 / 0-2,755 in/min)
Tool change is listed at 5 sec
Parts up to 2,500 mm (100 in) long and 500 kg (1,102 lbs) in rotary fixtures turning at 0-60 rpm
Spindle speed up to 30,000 rpm with up to 42 kW (56 hp) S1 on HSK-A63
Three rotary axes: A1 and A2 at +/-190 degrees, A3 at 180 degrees

Limitations

Z travel is 360 mm (14 in) and the interference diameter 520 mm (20 in), so only slender parts fit
20 tools for each spindle is a small magazine for parts with many different features
Part weight is limited to 500 kg (1,102 lbs)
Aluminum and composite only; no spindle torque is listed
No Y travel is given, although the feed row lists three linear axes

Best For

Long aluminum sections up to 2,500 mm (100 in) machined on several sides in one clamping Volume production where 2 spindles and a 5 sec tool change shorten the cycle Composite parts within a 520 mm (20 in) interference diameter Feature-dense parts that reward 15 m/s² (49 ft/s²) of acceleration Workpieces up to 500 kg (1,102 lbs) held in rotary fixtures

Frequently Asked Questions

01 What size part fits the Modig Mill-Ex?

Up to 2,500 mm (100 in) long and 500 kg (1,102 lbs), within a maximum interference diameter of 520 mm (20 in). X travel is 2,570 mm (101 in), a little more than the part length, and Z travel is 360 mm (14 in).

02 How are the two spindles on the Mill-Ex equipped?

The table lists 2 spindles with 20 tools for each spindle, an HSK-A63 interface, speed up to 30,000 rpm and power up to 42 kW (56 hp) S1. Tool change is 5 sec. It does not say whether both spindles cut the same part at once or how the work is divided, so ask Modig for the process on your part.

03 How fast is the Mill-Ex?

Feed is listed as 0-80 / 0-80 / 0-70 m/min (0-3,150 / 0-3,150 / 0-2,755 in/min) for X, Y and Z, and acceleration is 15 m/s² (49 ft/s²). The rotary fixtures turn at 0-60 rpm, and a tool change is listed at 5 sec.

04 Which rotary axes does the Mill-Ex have?

Three are listed. A1 and A2 have a range of +/-190 degrees and A3 has 180 degrees. The rotary fixtures that hold the part turn at 0-60 rpm. The table does not describe which axis sits where, so the layout should be confirmed from Modig's drawings.

05 How does the Mill-Ex compare with the Modig HHV2?

On the shared rows the spindle rating is the same: the HHV2 lists 42 kW (56 hp) S1, 0-30,000 rpm and HSK-A63, and the Mill-Ex lists up to 42 kW (56 hp) S1, up to 30,000 rpm and HSK-A63. The Mill-Ex has 2 spindles with 20 tools each. The HHV2 lists 12 or 24 tools.

06 What materials is the Mill-Ex for?

Aluminum and composite. The spindle figures agree with that: up to 30,000 rpm and up to 42 kW (56 hp) S1, with no torque value in the table. It is not listed for steel or titanium.
