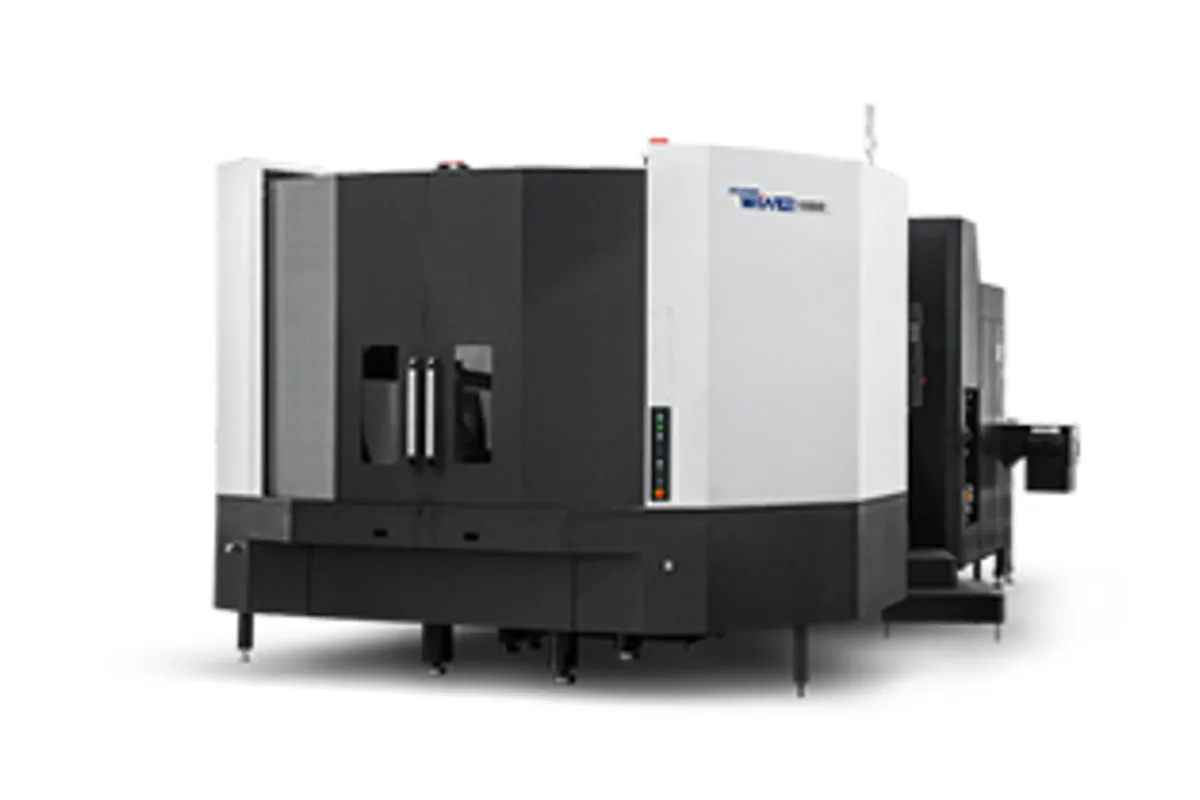

Hyundai WIA HS10000
Image: wiamachine.com, Hyundai WIA
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity
How much does the Hyundai WIA HS10000 cost?
Estimated price range
Our best estimate for a horizontal machining centers (hmc) in this class — not a quote from Hyundai WIA. Configuration moves it a long way.
Overview
The Hyundai WIA HS10000 is a large twin-pallet horizontal machining center: 1,700 mm (66.9 in) of X, 1,400 mm (55.1 in) of Y and 1,550 mm (61 in) of Z travel, two pallets listed as 1,000×1,000, and a BBT50 built-in spindle. Standard table load is 3,000 kg (6,614 lb), with 5,000 kg (11,023 lb) optional.
WIA lists three spindles. The standard one runs to 10,000 rpm with 45 / 25 kW (60.3 / 33.5 hp) and 623 / 305 N·m (459.5 / 225 ft-lbf). The options are 14,000 rpm and 6,000 rpm, and the power and torque rows give their optional figures in the same order: 37 / 30 kW (49.6 / 40.2 hp) with 398 / 191 N·m (293.6 / 140.9 ft-lbf), then 55 / 30 kW (73.8 / 40.2 hp) with 807/353. Read that way, the fast spindle gives up torque for speed and the 6,000 rpm spindle is the heavy-cutting choice. The table does not pair them in so many words, so have the quotation state speed, power and torque together.
For its size the machine moves quickly. Rapids are 50 m/min (1,968 ipm) on all three axes. The KH1000, on the same pallet size, lists 20 / 20 / 20 m/min (787 / 787 / 787 ipm) and 8,000 rpm, with more X travel at 2,100 mm (82.7 in) and 807 / 686 N·m (595.2 / 506 ft-lbf) at the spindle. The HS10000 is the choice when non-cutting time matters; the KH1000 leans toward the heavier cut.
The magazine holds 60 tools as standard, with 90, 120 and 150 optional. On parts this large a single setup can call for many long boring bars and face mills, which is the case for the bigger magazines.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 1,700 mm (66.9 in) |
| Y-Axis Travel | 1,400 mm (55.1 in) |
| Z-Axis Travel | 1,550 mm (61 in) |
| Spindle Taper | BBT50 |
| Pallet Size | 2-1,000×1,000 |
| Tool Capacity | 60 tools (90, 120, 150 optional) |
| Rapid Traverse Rate | X/Y/Z: 50 / 50 / 50 m/min (1,968 / 1,968 / 1,968 ipm) |
| Max Table Load | 3,000 kg (6,614 lb) (5,000 kg (11,023 lb) optional) |
| Max Spindle Speed | 10,000 rpm (14,000 rpm, 6,000 rpm optional) |
| Spindle Motor Power | 45 / 25 kW (60.3 / 33.5 hp) (37 / 30 kW (49.6 / 40.2 hp), 55 / 30 kW (73.8 / 40.2 hp) optional) |
| Spindle Torque | 623 / 305 N·m (459.5 / 225 ft-lbf) (398 / 191 N·m (293.6 / 140.9 ft-lbf), 807/353) optional) |
| Spindle Drive | BUILT-IN |
Specifications sourced from wiamachine.com — verified 2026-10-03
Strengths & Limitations
Strengths
- Travels of 1,700 mm (66.9 in), 1,400 mm (55.1 in) and 1,550 mm (61 in) in X, Y and Z
- 50 m/min (1,968 ipm) rapids on all three axes, against 20 m/min (787 ipm) on the KH1000
- Standard 10,000 rpm BBT50 built-in spindle with 45 / 25 kW (60.3 / 33.5 hp) and 623 / 305 N·m (459.5 / 225 ft-lbf)
- Optional 14,000 rpm and 6,000 rpm spindles
- 60 tools standard, with 90, 120 and 150 optional
- Table load can be raised from 3,000 kg (6,614 lb) to an optional 5,000 kg (11,023 lb)
Limitations
- The 5,000 kg (11,023 lb) table load is an option; standard is 3,000 kg (6,614 lb)
- X travel of 1,700 mm (66.9 in) is shorter than the 2,100 mm (82.7 in) of the KH1000
- Standard torque of 623 / 305 N·m (459.5 / 225 ft-lbf) is the same rating the smaller HS6300/8000 II lists
- The table does not state outright which optional power and torque figures go with which optional speed
Best For
Frequently Asked Questions
01
The standard spindle is 10,000 rpm with 45 / 25 kW (60.3 / 33.5 hp) and 623 / 305 N·m (459.5 / 225 ft-lbf). WIA lists 14,000 rpm and 6,000 rpm as options, with optional power of 37 / 30 kW (49.6 / 40.2 hp) and 55 / 30 kW (73.8 / 40.2 hp). All are BBT50 built-in spindles. Ask WIA to confirm which power and torque belong to which speed.
02
3,000 kg (6,614 lb) as standard and 5,000 kg (11,023 lb) as an option. The machine has two pallets, listed as 1,000×1,000. Fixture weight counts toward the limit, so decide on the option before the fixtures are designed.
03
Both use pallets listed as 1,000×1,000 and a BBT50 spindle. The HS10000 has 50 m/min (1,968 ipm) rapids and a 10,000 rpm standard spindle. The KH1000 lists 20 / 20 / 20 m/min (787 / 787 / 787 ipm), 8,000 rpm, 807 / 686 N·m (595.2 / 506 ft-lbf) and a longer X travel of 2,100 mm (82.7 in).
04
60 tools as standard. WIA lists 90, 120 and 150 as optional magazine sizes. Travels of 1,700 mm (66.9 in), 1,400 mm (55.1 in) and 1,550 mm (61 in) mean large parts with many features, so the tool count is worth sizing against the longest job.
More from Hyundai WIA
Other Horizontal Machining Centers (HMC)
DN Solutions NHP 5000 S
Heller H 6000
OKK HM6000S

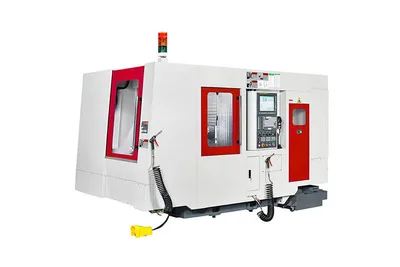

Litz LH-300
