Yamazaki Mazak Mill-Turn / Multi-Tasking Machines

Mazak INTEGREX e-V

Q: How much does the Mazak INTEGREX e-V cost?

Our best estimate for the Mazak INTEGREX e-V is $800,000 - $2,000,000+. This is an estimate for a mill-turn / multi-tasking machines in this class, not a quote from Yamazaki Mazak; configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/mazak-integrex-e-v#price; the request is passed to Yamazaki Mazak or an authorised dealer.

Est. $800,000 - $2,000,000+ Specs verified 2026-10-02 · mazak.com Updated 2026-10-02

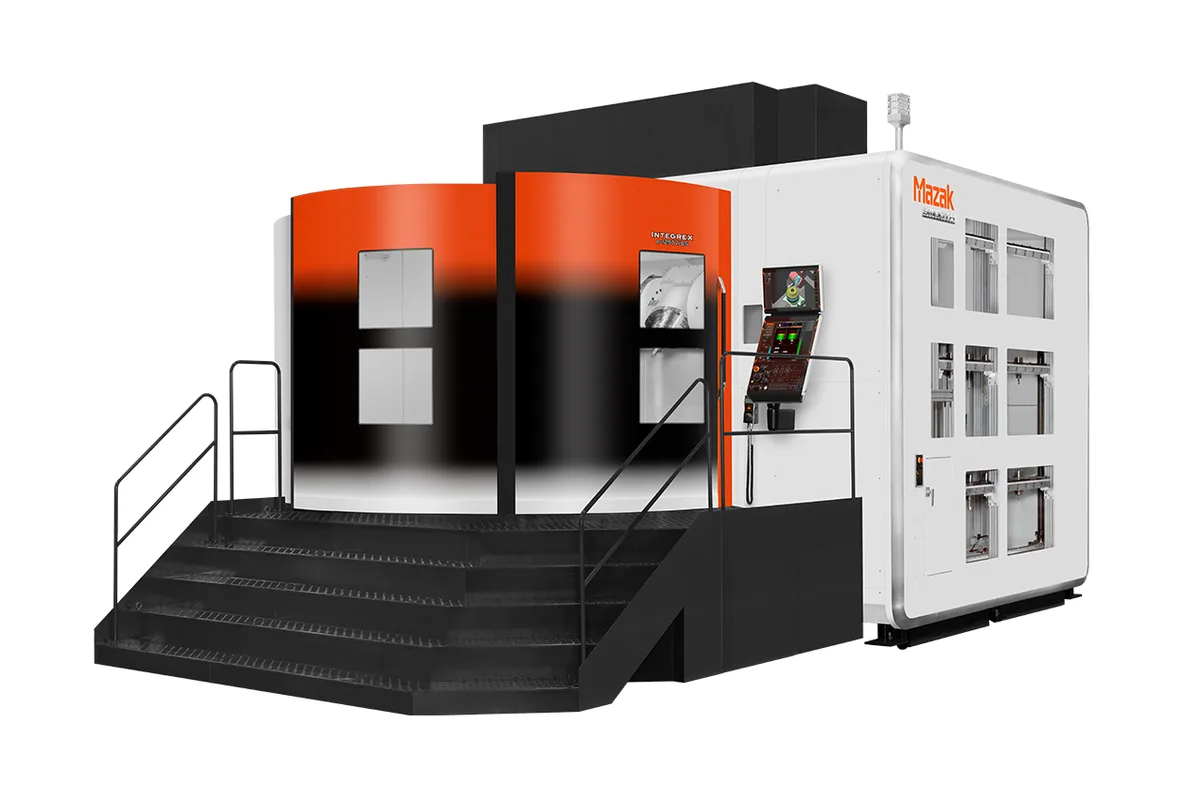

Image: mazak.com, Yamazaki Mazak

Key Specifications

X Travel

74 in (1,880 mm) to 120 in (3,048 mm)

Y Travel

49 in (1,245 mm) to 73 in (1,854 mm)

Z Travel

53 in (1,346 mm) to 71 in (1,803 mm)

Spindle Taper

CAT50 / CAT No.50

Tool Capacity

40 tools to 42 tools

models in series

6 models: INTEGREX e-1250V/8, INTEGREX e-1250V/8S, INTEGREX e-1600V/10, INTEGREX e-1600V/10S, INTEGREX e-1850V/12, INTEGREX e-1850V/25S

How much does the Mazak INTEGREX e-V cost?

Estimated price range

Est.$800,000 - $2,000,000+

Our best estimate for a mill-turn / multi-tasking machine in this class — not a quote from Yamazaki Mazak. Configuration moves it a long way.

Overview

The Mazak INTEGREX e-V series is a line of double-column vertical multi-tasking machines that turn on the table and mill with a B-axis spindle under 5-axis control. Mazak lists six models in three sizes: the INTEGREX e-1250V/8, e-1600V/10 and e-1850V/12 with a 2-pallet changer, and the e-1250V/8S, e-1600V/10S and e-1850V/25S as single-pallet machines.

The series has two kinds of turning table, and that is the first thing to settle. The e-1250V and e-1600V models use a direct drive motor, which gives quick positioning as well as turning torque. The two e-1850V models use a high power motor with two gear ranges, intended for large-diameter, heavy workpieces from roughing through finishing. On both types the C-axis indexes in 0.0001° increments.

Across the series, maximum turning diameter runs from Ø57 in (1,448 mm) to Ø138 in (3,505 mm) and table load from 5,952 lb (2,700 kg) to 33,069 lb (15,000 kg). Table speed spans 75 rpm to 500 rpm, and table torque at continuous rating 3,434 Nm (2,533 ft-lb) to 19,108 Nm (14,093 ft-lb). The INTEGREX e-1250V/8 is the small end: Ø57 in (1,448 mm), 5,952 lb (2,700 kg), and travels of 74 in (1,880 mm) in X, 49 in (1,245 mm) in Y and 53 in (1,346 mm) in Z. Travels reach 120 in (3,048 mm), 73 in (1,854 mm) and 71 in (1,803 mm) at the top.

The standard milling spindle is common to all six: 10,000 rpm, 30 kW (40 HP) continuous and 191 Nm (141 ft-lb) continuous, with 37 kW (50 HP) and 260 Nm (192 ft-lb) at 40% ED. Mazak offers three milling spindles in all, each with a built-in motor. The B-axis covers 150°. Because X travel extends beyond the milling spindle, the top face of a part can be milled with linear X and Y moves alone.

The control is the MAZATROL SmoothAi. For automation Mazak offers a one-level PALLETECH Manufacturing Cell, and a two-level PALLETECH High Rise System that is compatible with the INTEGREX e-1250V/8 only.

Full Specifications

Parameter	Value
Models in Series	6 models: INTEGREX e-1250V/8, INTEGREX e-1250V/8S, INTEGREX e-1600V/10, INTEGREX e-1600V/10S, INTEGREX e-1850V/12, INTEGREX e-1850V/25S
Max Turning Diameter	Ø57 in (1,448 mm) to Ø138 in (3,505 mm)
Max Table Load	5,952 lb (2,700 kg) to 33,069 lb (15,000 kg)
Table Max Spindle Speed	75 rpm to 500 rpm
Table Max Torque Cont Rating	3,434 Nm (2,533 ft-lb) (cont. rating) to 19,108 Nm (14,093 ft-lb) (cont. rating)
Table Spindle Motor Cont Rating	37 kW (50 HP) (cont. rating) to 40 kW (53 HP) (cont. rating)
Table Rapid Traverse Rate C Axis	1 rpm to 25 rpm
Table Min Indexing Angle Increment C Axis	0.0001°
Milling Spindle Speed	10,000 rpm
Milling Spindle Torque	191 Nm (141 ft-lb) continuous
Milling Spindle Power Intermittent	37 kW (50 HP) (40% ED)
Milling Spindle Power	30 kW (40 HP) continuous
Milling Spindle Rapid Traverse Rate B Axis	30 rpm
Milling Spindle Min Indexing Angle Increment B Axis	0.0001°
Spindle Taper	CAT50 / CAT No.50
Tool Capacity	40 tools to 42 tools
Max Tool Diameter (full magazine)	Ø5 in (127 mm)
Max Tool Diameter (adjacent pockets empty)	Ø10 in (254 mm)
Max Tool Length	26 in (660 mm)
Max Tool Weight	66 lb (30 kg)
X-Axis Travel	74 in (1,880 mm) to 120 in (3,048 mm)
Y-Axis Travel	49 in (1,245 mm) to 73 in (1,854 mm)
Z-Axis Travel	53 in (1,346 mm) to 71 in (1,803 mm)
B Axis Range	150°
C Axis Range	360°
Rapid Traverse X	787 ipm (20 m/min) to 1,654 ipm (42 m/min)
Rapid Traverse Y	1,575 ipm (40 m/min) to 1,654 ipm (42 m/min)
Rapid Traverse Z	1,575 ipm (40 m/min) to 1,654 ipm (42 m/min)
Machine Height	173 in (4,394 mm) to 227 in (5,766 mm)
Machine Weight	99,206 lb (44,999 kg) to 165,344 lb (74,999 kg)
Milling Spindle Torque Intermittent	260 Nm (192 ft-lb) (40% ED)

Specifications sourced from mazak.com — verified 2026-10-02

Strengths & Limitations

Strengths

Turning, multi-surface machining and 5-axis free-form milling in one double-column machine
Direct drive table on the e-1250V and e-1600V models; two-gear-range table on the e-1850V models for heavy work
Turning diameters from Ø57 in (1,448 mm) to Ø138 in (3,505 mm) and table loads up to 33,069 lb (15,000 kg)
Table torque at continuous rating of up to 19,108 Nm (14,093 ft-lb)
B-axis milling spindle with 10,000 rpm, 30 kW (40 HP) continuous and 150° of B travel
Each size is offered with a 2-pallet changer or as a single-pallet machine

Limitations

The two-level PALLETECH High Rise System is compatible with the INTEGREX e-1250V/8 only
X rapid is as low as 787 ipm (20 m/min) in the series, against 1,575 ipm (40 m/min) to 1,654 ipm (42 m/min) in Y and Z
Table speed is as low as 75 rpm in the series, which limits surface speed on smaller diameters
Machines weigh 99,206 lb (44,999 kg) to 165,344 lb (74,999 kg) and stand 173 in (4,394 mm) to 227 in (5,766 mm) tall
The magazine is listed at 40 tools to 42 tools, with tools limited to 26 in (660 mm) and 66 lb (30 kg)

Best For

Large rings, discs and housings turned and milled in one setup Workpieces up to Ø138 in (3,505 mm) in turning diameter Heavy parts up to 33,069 lb (15,000 kg) on the table Free-form surfaces machined under 5-axis control Palletized production with a PALLETECH Manufacturing Cell

Frequently Asked Questions

01 Which models are in the INTEGREX e-V series?

Mazak lists six. The INTEGREX e-1250V/8, e-1600V/10 and e-1850V/12 have a 2-pallet changer. The e-1250V/8S, e-1600V/10S and e-1850V/25S are single-pallet machines. All share the 10,000 rpm milling spindle, the 150° B-axis and a tool capacity of 40 tools to 42 tools.

02 What is the difference between the direct drive and geared tables?

Mazak fits a direct drive motor to the tables of the e-1250V/8, e-1250V/8S, e-1600V/10 and e-1600V/10S. It delivers high torque from a compact unit and responds quickly for positioning. The e-1850V/12 and e-1850V/25S have a table driven by a high power motor through two gear ranges, for large diameter and heavy workpieces. Across the series, table speed is 75 rpm to 500 rpm and C-axis rapid rotation 1 rpm to 25 rpm.

03 How large a part can the INTEGREX e-V series turn?

Maximum turning diameter runs from Ø57 in (1,448 mm) to Ø138 in (3,505 mm), and table load from 5,952 lb (2,700 kg) to 33,069 lb (15,000 kg). Z travel is 53 in (1,346 mm) to 71 in (1,803 mm). The INTEGREX e-1250V/8 sits at the lower end of all three, with Ø57 in (1,448 mm), 5,952 lb (2,700 kg) and 53 in (1,346 mm).

04 What is the milling spindle rated at?

The standard milling spindle runs to 10,000 rpm and is rated 30 kW (40 HP) continuous and 37 kW (50 HP) at 40% ED, with 191 Nm (141 ft-lb) continuous and 260 Nm (192 ft-lb) at 40% ED. The B-axis has 150° of travel, rotates at 30 rpm in rapid and indexes in 0.0001° increments. Maximum tool size is Ø5 in (127 mm), or Ø10 in (254 mm) with adjacent pockets empty.

05 How does the INTEGREX e-V series compare with the INTEGREX e-RAMTEC series?

The X travel range is the same, 74 in (1,880 mm) to 120 in (3,048 mm), in both the INTEGREX e-V and the INTEGREX e-RAMTEC series. The INTEGREX e-RAMTEC series turns Ø49 in (1,245 mm) to Ø93 in (2,362 mm) and carries up to 15,432 lb (7,000 kg), where this series reaches Ø138 in (3,505 mm) and 33,069 lb (15,000 kg). The INTEGREX e-RAMTEC machines are heavier at the top, up to 192,243 lb (87,200 kg).

06 What automation is offered for the INTEGREX e-V?

Three of the six models have a 2-pallet changer as part of the machine. Beyond that Mazak offers the PALLETECH Manufacturing Cell, a one-level system that can be scaled with production demand and can link different types of Mazak machines, and the two-level PALLETECH High Rise System, which is compatible with the INTEGREX e-1250V/8 only.
