Yamazaki Mazak Mill-Turn / Multi-Tasking Machines

Mazak INTEGREX i-200H S

Est. $340,000 - $500,000 Specs verified 2026-10-02 · mazak.com Updated 2026-10-02

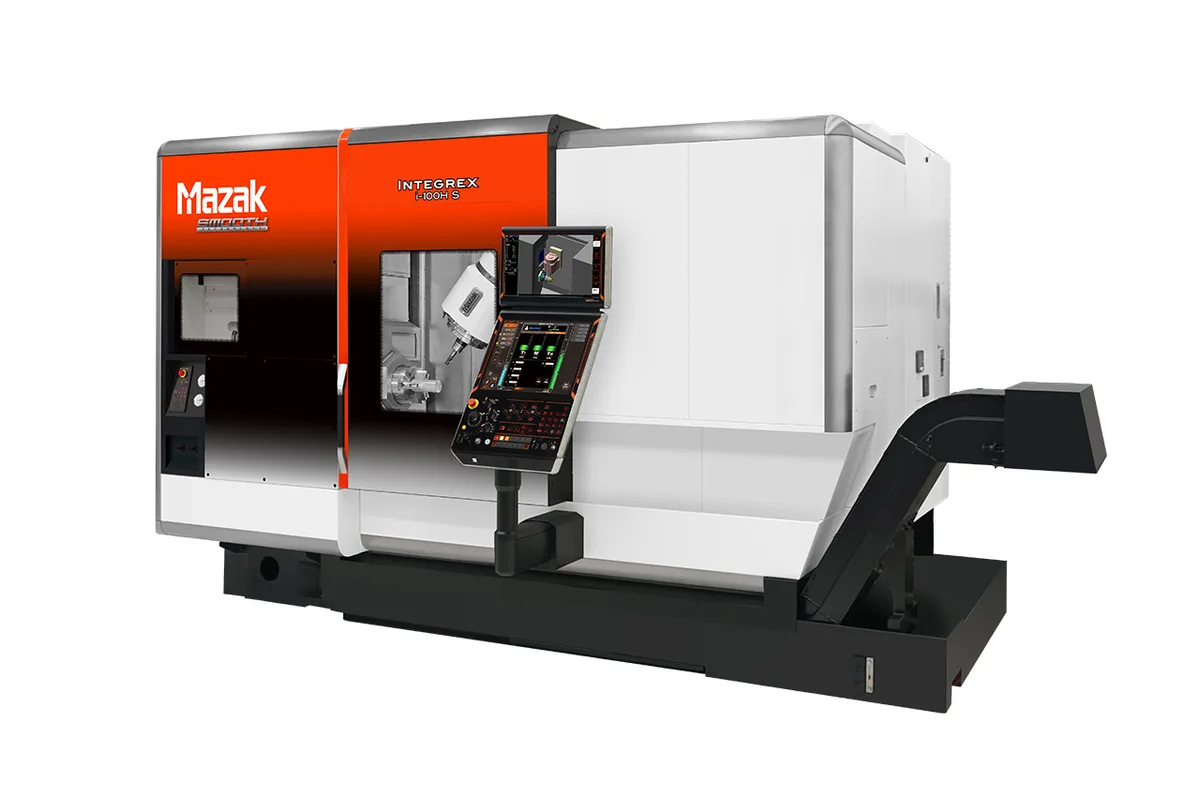

Image: mazak.com, Yamazaki Mazak

Key Specifications

X Travel

21 in (533 mm)

Y Travel

8 in (203 mm)

Z Travel

35 in (889 mm)

Max Spindle

5,000 rpm

Spindle Taper

HSK-A63

Tool Capacity

38 tools

How much does the Mazak INTEGREX i-200H S cost?

Estimated price range

Est.$340,000 - $500,000

Our best estimate for a mill-turn / multi-tasking machine in this class — not a quote from Yamazaki Mazak. Configuration moves it a long way.

Overview

The Mazak INTEGREX i-200H S is the 8 in chuck, second-spindle model of the INTEGREX i-H series. Its main spindle is rated 15 kW (20 HP) continuous and 22 kW (30 HP) (40% ED) at up to 5,000 rpm, and the second spindle matches it on continuous power at 15 kW (20 HP), with 18.5 kW (25 HP) at the 40% ED rating. The 850U bed gives 33 in (838 mm) of turning length within a Ø24 in (610 mm) maximum turning diameter.

With that much power at the second spindle, the back-end operation is not confined to finishing cuts. Roughing can be shared between the two chucks, which shortens the cycle on parts with heavy stock on both ends. Against the smaller INTEGREX i-100H S, which lists 6 in chucks, 6,000 rpm and 7.5 kW (10 HP) continuous, this model trades top speed for double the continuous turning power on the same travels.

The milling spindle is the lighter motor here: 11 kW (15 HP) continuous and 12 kW (16 HP) (40% ED) at up to 12,000 rpm, with 46.1 Nm (34 ft-lb) continuous and 57.3 Nm (42 ft-lb) (40% ED) of torque. On this model turning leads and milling follows. Tooling is HSK-A63 from a 38-tool magazine, with tools up to 12 in (305 mm) long. The B-axis ranges from -30° to +210° in 0.0001° increments.

As an H-series machine it has the flat front that Mazak designed for robots and stockers. The machine itself occupies 138 in (3,505 mm) × 85 in (2,159 mm) and stands 89 in (2,261 mm) high, before any cell is added in front of it. Mazak lists a bar feeder with an optional scheduling function for high-mix, low-volume production, and names MAZATROL SmoothAi as the series CNC. Weight is 24,537 lb (11,130 kg).

Full Specifications

Parameter	Value
Bed Length Type	850U
Max Turning Diameter	Ø24 in (610 mm)
Max Turning Length	33 in (838 mm)
Chuck Size	8 in
Max Spindle Speed	5,000 rpm
Spindle Power Intermittent	22 kW (30 HP) (40% ED)
Spindle Motor Power	15 kW (20 HP) continuous
Sub Spindle Chuck Size	8 in
Sub Spindle Speed	5,000 rpm
Sub Spindle Power Intermittent	18.5 kW (25 HP) (40% ED)
Sub Spindle Power	15 kW (20 HP) continuous
Milling Spindle Speed	12,000 rpm
Milling Spindle Torque Intermittent	57.3 Nm (42 ft-lb) (40% ED)
Milling Spindle Torque	46.1 Nm (34 ft-lb) continuous
Milling Spindle Power Intermittent	12 kW (16 HP) (40% ED)
Milling Spindle Power	11 kW (15 HP) continuous
B Axis Indexing Increment	0.0001°
Spindle Taper	HSK-A63
Tool Capacity	38 tools
Max Tool Diameter (full magazine)	Ø4 in (102 mm)
Max Tool Diameter (adjacent pockets empty)	Ø5 in (127 mm)
Max Tool Length	12 in (305 mm)
Max Tool Weight	11 lb (5 kg)
X-Axis Travel	21 in (533 mm)
Y-Axis Travel	8 in (203 mm)
Z-Axis Travel	35 in (889 mm)
B Axis Range	-30° - +210°
Rapid Traverse X	1,890 ipm (48 m/min)
Rapid Traverse Y	1,575 ipm (40 m/min)
Rapid Traverse Z	1,575 ipm (40 m/min)
Floor Space Required	138 in (3,505 mm) × 85 in (2,159 mm) (W × L)
Machine Height	89 in (2,261 mm)
Machine Weight	24,537 lb (11,130 kg)

Specifications sourced from mazak.com — verified 2026-10-02

Strengths & Limitations

Strengths

Second spindle rated 15 kW (20 HP) continuous and 18.5 kW (25 HP) (40% ED), so roughing can run at either end
Main spindle rated 15 kW (20 HP) continuous and 22 kW (30 HP) (40% ED) with an 8 in chuck
33 in (838 mm) of turning length and 35 in (889 mm) of Z travel, against 23 in (584 mm) and 25 in (635 mm) on the INTEGREX i-200 NEO
38-tool HSK-A63 magazine, against the 36 tools listed for the INTEGREX i-200 NEO
Low, shallow machine: 89 in (2,261 mm) high on a 138 in (3,505 mm) × 85 in (2,159 mm) footprint
Ball screw core cooling on X, Y and Z is a standard specification of the series

Limitations

Milling spindle is 11 kW (15 HP) continuous and 12 kW (16 HP) (40% ED), less than either turning spindle
Spindles are limited to 5,000 rpm, where the INTEGREX i-100H S reaches 6,000 rpm
Taper is listed as HSK-A63 only, while the INTEGREX i-200 NEO lists HSK-T63 and HSK-A63
Y travel is 8 in (203 mm); Mazak's series page gives the i-250H, i-350H and i-450H an 11.81 in Y-axis

Best For

Two-operation parts on 8 in chucks with real stock removal at both ends Turning-led work that needs 15 kW (20 HP) continuous on main and second spindles Bar-fed production using the bar feeder and its optional scheduling function Robot-tended cells placed against the flat machine front

Frequently Asked Questions

01 How strong is the second spindle on the INTEGREX i-200H S?

It takes an 8 in chuck, runs to 5,000 rpm and is rated 15 kW (20 HP) continuous and 18.5 kW (25 HP) (40% ED). The main spindle has the same continuous rating and 22 kW (30 HP) (40% ED). On continuous ratings the two are equal, so heavy cuts need not all be scheduled in the first operation.

02 How does the INTEGREX i-200H S compare with the INTEGREX i-100H S?

Travels, the 33 in (838 mm) turning length and the 38-tool HSK-A63 magazine are common to both. The INTEGREX i-100H S lists 6 in chucks, 6,000 rpm and 7.5 kW (10 HP) continuous at 23,876 lb (10,830 kg). The i-200H S has 8 in chucks, 5,000 rpm and 15 kW (20 HP) continuous at 24,537 lb (11,130 kg).

03 What are the travels of the INTEGREX i-200H S?

The table lists 21 in (533 mm) in X, 8 in (203 mm) in Y and 35 in (889 mm) in Z. X rapids at 1,890 ipm (48 m/min), Y and Z at 1,575 ipm (40 m/min). Mazak's series page states the X-axis of the i-100H and i-200H as 21.06 in and the Y-axis as 8.27 in, since the table rounds to whole inches.

04 Is the milling spindle as powerful as the turning spindles?

No. The milling spindle is rated 11 kW (15 HP) continuous and 12 kW (16 HP) (40% ED), with torque of 46.1 Nm (34 ft-lb) continuous and 57.3 Nm (42 ft-lb) (40% ED) at up to 12,000 rpm. Each turning spindle is rated 15 kW (20 HP) continuous.

05 What thermal measures does Mazak describe for the series?

Three. Ai Thermal Shield adjusts for spindle speed, machine temperature, machine position and coolant on/off to hold the cutting edge position. Temperature-controlled oil circulates around the spindle bearings and headstock. Cooling oil also passes through the X, Y and Z ball screws, which Mazak marks as a standard specification.
