Willemin-Macodel 808MT2

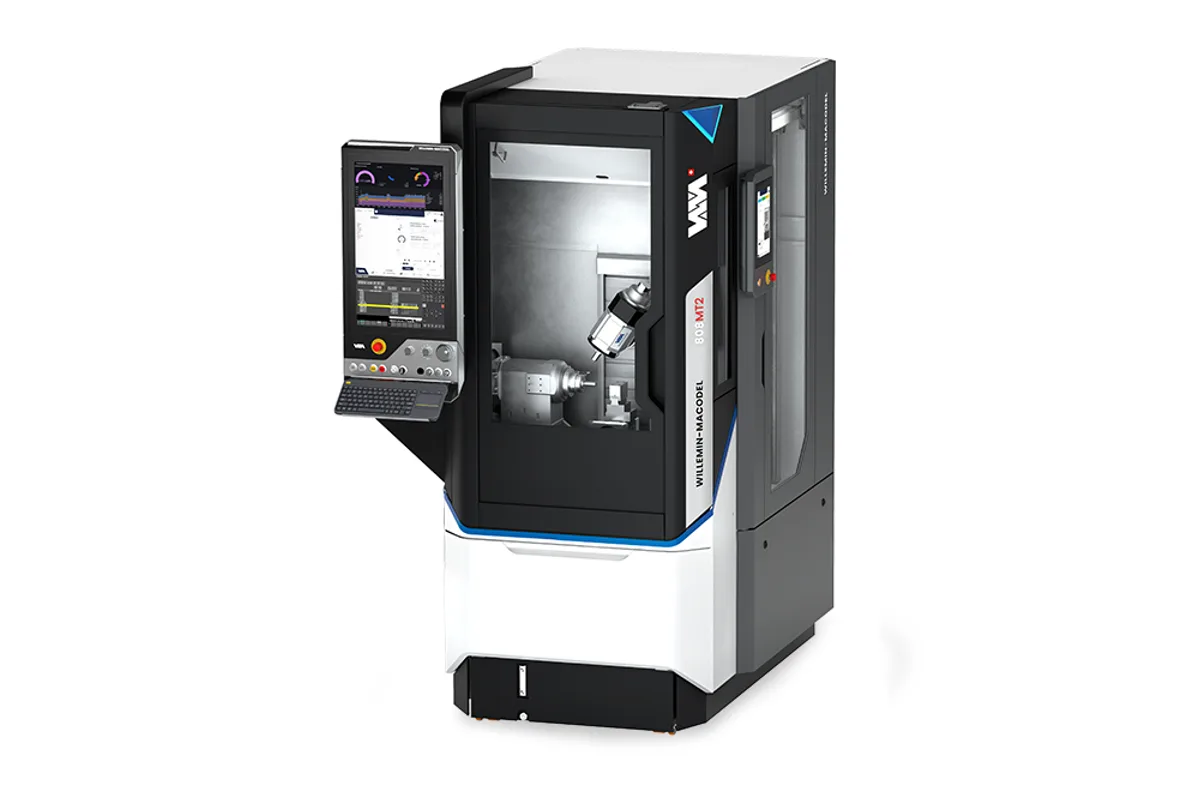

Image: willemin-macodel.com, Willemin-Macodel
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity
How much does the Willemin-Macodel 808MT2 cost?
Price estimate
We do not have a price for the Willemin-Macodel 808MT2 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Willemin-Macodel 808MT2 is a bar-fed multi-process machine scaled down to 1.4 m² of floor. It mills and turns from Ø27 mm bar with linear motors on X, Y and Z and torque motors on both rotary axes, inside a cabinet 980 mm wide.
Bar stock runs through the horizontal A axis on an A3 cone. The axis turns at up to 10,000 rpm, well above the 6,000 min-1 of the 408MT, and its continuous torque is listed as 12 Nm / 18.1 Nm. Small diameters need that speed to reach a sensible surface speed, which is the reasoning behind the pairing of a small bar with a fast axis.
Milling is done by an HSK-A25 spindle on a B axis that swings from -45° to +120° with 24 Nm of continuous torque. The spindle delivers 8.3 kW in S1 and 12.5 kW in S6, 3 Nm and 4.5 Nm of torque, and 42,000 min-1 with 60,000 min-1 in brackets. Travels are 250 mm in X, 120 mm in Y and 210 mm in Z at 60 m/min.
For the cut-off side Willemin-Macodel describes a 2-position pick-up unit, 0° or 90°, with a hydraulic or pneumatic pick-up vise. The magazine has 74 tool positions, or 137 as the bracketed figure, for tools up to Ø35 mm and 1 kg, and changes chip to chip in under 5 sec. The table also covers services: 80 L of oil, 40 L/min of coolant flow, programmable high pressure up to 80 bar and a 50 bar hydraulic pack. No numerical control is named on the page.
Full Specifications
| Parameter | Value |
|---|---|
| Linear Axes Drive | Linear motors |
| X-Axis Travel | 250 mm (9.8 in) |
| Y-Axis Travel | 120 mm (4.7 in) |
| Z-Axis Travel | 210 mm (8.3 in) |
| Linear Axes Max Feed Speed | 60 m/min |
| Linear Axes Continuous Feed Forces X Y Z | 720 – 720 – 480 N |
| Linear Axes Resolution | 0.0125 µm |
| A Axis Drive | Torque motor |
| Bar Capacity | Ø27 mm (1.1 in) |
| A Axis Interface | A3 cone |
| A Axis Continuous Torque | 12 Nm / 18.1 Nm (8.9 lb-ft / 13.4 lb-ft) |
| A Axis Speed Turning Mode | 10,000 rpm |
| B Axis Drive | Torque motor |
| B Axis Angular Movement | -45° to +120° |
| B Axis Continuous Torque | 24 Nm (17.7 lb-ft) |
| B Axis Max Speed | 120 min-1 |
| B Axis Resolution | 0.0001° |
| Spindle Taper | HSK-A25 |
| Spindle Torque S1 S6 | 3 Nm / 4.5 Nm (2.2 lb-ft / 3.3 lb-ft) |
| Spindle Power S1 S6 | 8.3 kW / 12.5 kW (11.1 hp / 16.8 hp) |
| Max Spindle Speed | 42,000 min-1 (60,000 min-1) |
| Spindle Lubrication | Air-oil |
| Spindle Resolution | ±0.02° |
| Dts Dynamic Thermal Stabilization | Integrated |
| Tool Capacity | 74 (137) |
| Chip to Chip Change | < 5 sec |
| Max Tool Diameter (full magazine) | Ø35 mm (1.4 in) |
| Max Tool Diameter Adjacent Places Free | Ø70 mm (2.8 in) |
| Max Tool Weight | 1 kg (2 lb) |
| Chip Bin Volume | 50 L |
| Chip Bin Filtration | 200 µm |
| Oil Tank Volume | 80 L |
| Coolant Flow Rate | 40 L/min |
| High Pressure Coolant Programmable | 0 to 80 bar, 4 L/min |
| Hydraulic Operating Pressure | 50 bar |
| Dimensions W X D X H | 980 x 1,425 x 2,070 mm (38.6 x 56.1 x 81.5 in) |
| Floor Area | 1.4 m² |
Specifications sourced from willemin-macodel.com — verified 2026-10-05
Strengths & Limitations
Strengths
- A axis turning at up to 10,000 rpm on Ø27 mm bar
- Linear motors at 60 m/min with continuous feed forces of 720 N in X and Y
- HSK-A25 spindle: 8.3 kW S1, 12.5 kW S6, 42,000 min-1 or 60,000 min-1 in brackets
- 74 tool positions as standard, with 137 as the bracketed figure
- Floor area of 1.4 m² for a complete mill-turn machine
Limitations
- Bar capacity stops at Ø27 mm, against Ø36 mm on the 408MT
- Tools are limited to Ø35 mm and 1 kg
- Y travel of 120 mm and Z of 210 mm
- The pick-up unit has 2 positions, 0° or 90°
- The maker's page does not name the control
Best For
Frequently Asked Questions
01
The maximum bar passage is Ø27 mm on an A3 cone. The A axis is driven by a torque motor, turns at up to 10,000 rpm in turning mode and has a continuous torque listed as 12 Nm / 18.1 Nm.
02
8.3 kW in S1 and 12.5 kW in S6, with 3 Nm and 4.5 Nm of torque. The interface is HSK-A25, the standard maximum speed is 42,000 min-1 and 60,000 min-1 is printed in brackets. Lubrication is air-oil and DTS thermal stabilization is integrated.
03
The 408MT is the larger machine: Ø36 mm bar, 250 mm, 200 mm and 310 mm of travel and an HSK-E40 spindle on 3 m². The 808MT2 takes Ø27 mm bar, travels 250 mm, 120 mm and 210 mm, uses HSK-A25 tooling and needs 1.4 m². Its linear axes feed at 60 m/min, where the 408MT lists 40 m/min.
04
A 50 L chip bin with 200 µm filtration, an oil pan holding 80 L, an irrigation flow rate of 40 L/min and programmable high-pressure coolant from 0 to 80 bar at 4 L/min. The hydraulic power pack operates at 50 bar.
