Mazak INTEGREX e-RAMTEC V/8

Est. $900,000 - $1,300,000 Specs verified 2026-10-02 · mazak.com Updated 2026-10-02

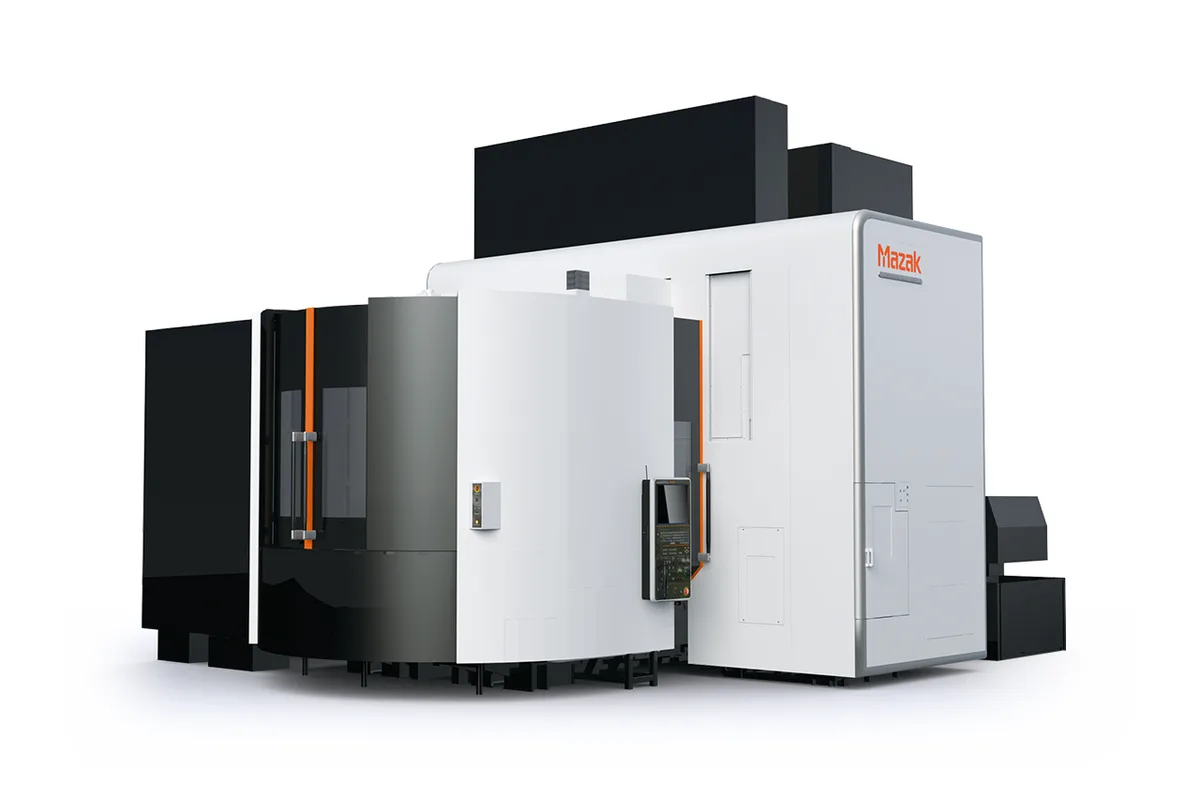

Image: mazak.com, Yamazaki Mazak

Key Specifications

X Travel

74 in (1,880 mm)

Y Travel

42 in (1,067 mm)

Z Travel

63 in (1,600 mm)

Spindle Taper

CAT No.50

Tool Capacity

40 tools

max turning diameter

Ø49 in (1,245 mm)

How much does the Mazak INTEGREX e-RAMTEC V/8 cost?

Estimated price range

Est.$900,000 - $1,300,000

Our best estimate for a mill-turn / multi-tasking machine in this class — not a quote from Yamazaki Mazak. Configuration moves it a long way.

Overview

The Mazak INTEGREX e-RAMTEC V/8 is a double-column vertical mill-turn machine with a second, separate tool spindle: a ram that travels 35.43 in vertically beside the B-axis milling head to turn and mill deep inside bores. It handles parts up to 49 in (1,245 mm) in diameter and 49 in (1,245 mm) tall on a table rated for 5,952 lb (2,700 kg).

The ram is what sets this model apart from an ordinary 5-axis mill-turn. A tilting head carrying a long tool gets less stiff the deeper the bore; Mazak's description is that the ram performs deep inner-diameter turning and milling that cannot be machined even with long tools. The ram has its own automatic tool changer, fed from a dedicated magazine for 40 turning and milling tools, so spare tools can be called up during long cuts.

The main milling spindle is a CAT No.50 built-in motor unit: 10,000 rpm, 30 kW (40 HP) and 191 Nm (141 ft-lb) continuous, 37 kW (50 HP) and 260 Nm (192 ft-lb) at 40% ED. Mazak offers a 5,000 rpm spindle for high-torque cutting of difficult materials and a 15,000 rpm spindle as options. The B axis covers 150°. Below it, the table turns at up to 500 rpm with 30 kW (40 HP) and 2,167 Nm (1,598 ft-lb) continuous, or 37 kW (50 HP) and 2,954 Nm (2,179 ft-lb) at 40% ED, and indexes as a C axis in 0.0001° steps.

Travels are 74 in (1,880 mm) in X, 42 in (1,067 mm) in Y and 63 in (1,600 mm) in Z, with 1,654 ipm (42 m/min) rapids. The INTEGREX e-1250V/8 shares the X travel, table load and rapid rate, and has a larger 57 in (1,448 mm) turning diameter and 49 in (1,245 mm) of Y, but 53 in (1,346 mm) of Z. The e-RAMTEC V/8 stands 203 in (5,156 mm) tall and weighs 101,413 lb (46,000 kg), which makes building height the first item on a site survey.

Full Specifications

Parameter	Value
Max Turning Diameter	Ø49 in (1,245 mm)
Max Workpiece Size	Ø49 in (1,245 mm) × 49 in (1,245 mm)
Max Table Load	5,952 lb (2,700 kg)
Table Max Spindle Speed	500 rpm
Table Max Torque 40 Pct Ed	2,954 Nm (2,179 ft-lb) (40% ED)
Table Max Torque Cont Rating	2,167 Nm (1,598 ft-lb) (cont. rating)
Table Spindle Motor 40 Pct Ed	37 kW (50 HP) (40% ED)
Table Spindle Motor Cont Rating	30 kW (40 HP) (cont. rating)
Table Rapid Traverse Rate C Axis	18 rpm
Table Min Indexing Angle Increment C Axis	0.0001°
Milling Spindle Speed	10,000 rpm
Milling Spindle Torque Intermittent	260 Nm (192 ft-lb) (40% ED)
Milling Spindle Torque	191 Nm (141 ft-lb) continuous
Milling Spindle Power Intermittent	37 kW (50 HP) (40% ED)
Milling Spindle Power	30 kW (40 HP) continuous
Milling Spindle Min Indexing Angle Increment B Axis	0.0001°
Spindle Taper	CAT No.50
Tool Capacity	40 tools
Max Tool Diameter (full magazine)	Ø5 in (127 mm)
Max Tool Diameter (adjacent pockets empty)	Ø10 in (254 mm)
Max Tool Length	26 in (660 mm)
Max Tool Weight	66 lb (30 kg)
X-Axis Travel	74 in (1,880 mm)
Y-Axis Travel	42 in (1,067 mm)
Z-Axis Travel	63 in (1,600 mm)
B Axis Range	150°
C Axis Range	360°
Rapid Traverse X	1,654 ipm (42 m/min)
Rapid Traverse Y	1,654 ipm (42 m/min)
Rapid Traverse Z	1,654 ipm (42 m/min)
Machine Height	203 in (5,156 mm)
Machine Weight	101,413 lb (46,000 kg)

Specifications sourced from mazak.com — verified 2026-10-02

Strengths & Limitations

Strengths

Ram spindle with 35.43 in of vertical stroke for deep inner-diameter turning and milling
Dedicated ram tool magazine for 40 turning and milling tools, with automatic tool change
Z travel of 63 in (1,600 mm), against 53 in (1,346 mm) on the INTEGREX e-1250V/8
Table torque of 2,167 Nm (1,598 ft-lb) continuous and 2,954 Nm (2,179 ft-lb) at 40% ED
Optional 5,000 rpm and 15,000 rpm milling spindles alongside the standard 10,000 rpm unit
2-pallet changer with a rotating setup station for loading heavy workpieces

Limitations

Maximum turning diameter is 49 in (1,245 mm), smaller than the 57 in (1,448 mm) of the INTEGREX e-1250V/8
Y travel of 42 in (1,067 mm) is the shortest linear axis and is less than the maximum part diameter
C-axis rapid is 18 rpm and table speed 500 rpm, so small diameters are turned at low surface speed
Stands 203 in (5,156 mm) tall and weighs 101,413 lb (46,000 kg); Mazak's table gives no footprint for the model
The workpiece centering tool and the 5,000 and 15,000 rpm spindles are options

Best For

Deep bores in large housings and casings, using the 35.43 in ram stroke Parts up to 49 in (1,245 mm) in diameter needing internal turning and 5-axis milling Long-running jobs that draw spare tools from the ram's dedicated magazine Heavy workpieces up to 5,952 lb (2,700 kg) changed over on two pallets

Frequently Asked Questions

01 What is the ram spindle on the e-RAMTEC V/8?

It is a second tool spindle mounted next to the milling spindle, with a vertical stroke of 35.43 in. Mazak describes it as performing deep inner-diameter turning and milling that cannot be machined even with long tools. It has an automatic tool changer of its own.

02 How many tools does the machine hold?

The table lists a tool capacity of 40 tools, and Mazak's description of the ram spindle tool changer refers to a dedicated magazine for 40 turning and milling tools. Tools can be 26 in (660 mm) long and 66 lb (30 kg), 5 in (127 mm) in diameter or 10 in (254 mm) with adjacent pockets empty. Mazak also describes TOOL HIVE, a rack-type magazine storing over 180 tools that can be expanded after installation.

03 Which milling spindles are available?

The standard spindle runs to 10,000 rpm and is rated 30 kW (40 HP) continuous, 37 kW (50 HP) at 40% ED. Mazak's lineup for the series also includes an optional 5,000 rpm spindle for high-torque machining of difficult-to-machine materials and an optional 15,000 rpm spindle. All tilt on a B axis with 150° of travel, driven through a roller gear cam.

04 How does it compare with the INTEGREX e-1250V/8?

Both have 74 in (1,880 mm) of X, a 5,952 lb (2,700 kg) table load and 1,654 ipm (42 m/min) rapids. The INTEGREX e-1250V/8 turns up to 57 in (1,448 mm) in diameter with 49 in (1,245 mm) of Y and 53 in (1,346 mm) of Z, and weighs 109,127 lb (49,499 kg). The e-RAMTEC V/8 turns up to 49 in (1,245 mm) with 42 in (1,067 mm) of Y and 63 in (1,600 mm) of Z.

05 What are the turning table ratings?

Maximum table speed is 500 rpm. The table motor is rated 30 kW (40 HP) continuous and 37 kW (50 HP) at 40% ED, with torque of 2,167 Nm (1,598 ft-lb) continuous and 2,954 Nm (2,179 ft-lb) at 40% ED. As a C axis it positions in 0.0001° increments and rapids at 18 rpm.
