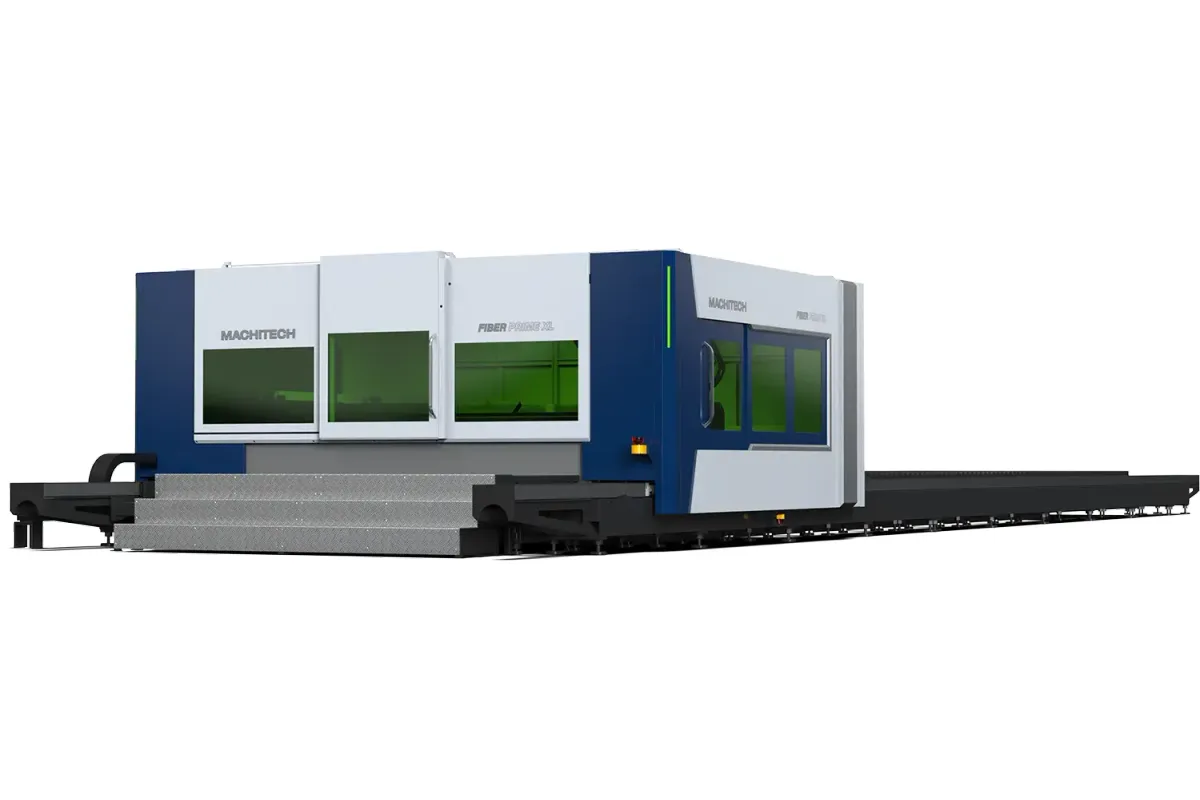

Machitech Fiber Prime XL 10x24
Image: machitech.com, Machitech Automation
Key Specifications
laser power
sheet length
sheet width
acceleration
rapid speed
workpiece weight
How much does the Machitech Fiber Prime XL 10x24 cost?
Price estimate
We do not have a price for the Machitech Fiber Prime XL 10x24 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Machitech Fiber Prime XL 10x24 is the entry size of Machitech's large-format laser. Sheet length is 323 in (8,200 mm) and sheet width 120 in (3,050 mm), and the laser source is 12 to 60 kW.
The XL is built differently from the shuttle-table lasers below it. A segmented bridge runs on rails over a cutting table that stands independently, so the weight of the plate never rests on the structure that guides the beam. That is why a machine weighing 30,865 lbs (13,900 kg) can work over a plate load of 39,240 lbs (17,800 kg), a figure Machitech gives for a 4 in steel plate.
In length this size is close to the Fiber Prime S 8x24, which takes 315 in (8,000 mm). The difference is width, 120 in (3,050 mm) against 98 in (2,500 mm), and the way of working: here plate is loaded onto a fixed bed, and several sheets can be processed on a continuous or separated bed.
Dynamics are lower than on the smaller lasers, as expected of a long bridge. Acceleration is 1 G and rapid speed 4,450 ipm (110 m/min). On thick plate, where cutting feed is slow, that costs little. The thickness table is the one used for the Fiber Prime S above 12 kW, peaking at 4 in (100 mm) for mild steel, stainless steel and aluminum with 60 kW.
Three laser radars watch the area around the moving bridge, and a blower and exhaust fan move smoke to the dust collector. The machine is 653 in (16,600 mm) long, 220 in (5,580 mm) wide and 100 in (2,550 mm) high.
Full Specifications
| Parameter | Value |
|---|---|
| Laser Power | 12 to 60 kW |
| Sheet Length | 323 in (8,200 mm) |
| Sheet Width | 120 in (3,050 mm) |
| Acceleration | 1 G |
| Rapid Speed | 4,450 ipm (110 m/min) |
| Workpiece Weight | 39,240 lbs (17,800 kg) |
| Cutting Head | Precitec head made for the Fiber PRIME series |
| Bed Design | Segmented bridge and rail design with independent cutting table |
| Nesting Software | Lantek Expert Cut |
| Max Thickness 12kw | At 12 kW: mild steel 1.5 in (40 mm); stainless steel 1.5 in (40 mm); aluminum 1.5 in (40 mm); copper 0.4 in (10 mm); brass 0.5 in (12 mm) |
| Max Thickness 20kw | At 20 kW: mild steel 2.35 in (60 mm); stainless steel 2.35 in (60 mm); aluminum 2 in (50 mm); copper 0.5 in (12 mm); brass 0.6 in (16 mm) |
| Max Thickness 30kw | At 30 kW: mild steel 2.75 in (70 mm); stainless steel 2.75 in (70 mm); aluminum 2.75 in (70 mm); copper 0.6 in (16 mm); brass 0.8 in (20 mm) |
| Max Thickness 40kw | At 40 kW: mild steel 3 in (80 mm); stainless steel 3 in (80 mm); aluminum 3 in (80 mm); copper 0.7 in (18 mm); brass 1 in (25 mm) |
| Max Thickness 60kw | At 60 kW: mild steel 4 in (100 mm); stainless steel 4 in (100 mm); aluminum 4 in (100 mm); copper 0.8 in (20 mm); brass 1.2 in (30 mm) |
| Machine Length | 653 in (16,600 mm) |
| Machine Width | 220 in (5,580 mm) |
| Machine Height | 100 in (2,550 mm) |
| Machine Weight | 30,865 lbs (13,900 kg), without laser source, chiller and dust collector |
| Install and Training | Included, on-site |
| Remote Support | Included, unlimited |
Specifications sourced from machitech.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Sheet width of 120 in (3,050 mm) with 323 in (8,200 mm) of length
- Workpiece weight of 39,240 lbs (17,800 kg) on an independent cutting table
- 12 to 60 kW laser sources
- Three laser radars for safety and obstacle avoidance
- Multiple sheets on a continuous or separated bed
Limitations
- Acceleration of 1 G and rapid speed of 4,450 ipm (110 m/min)
- No shuttle-table exchange as on the Fiber Prime S
- Needs 653 in (16,600 mm) by 220 in (5,580 mm) of floor
- Shortest bed of the XL line
Best For
Frequently Asked Questions
01
Sheet length is 323 in (8,200 mm) and sheet width 120 in (3,050 mm). Workpiece weight is 39,240 lbs (17,800 kg), stated for a 4 in steel plate.
02
The Fiber Prime S 8x24 exchanges plate on hydraulic shuttle tables and is listed at 2.8 G. The XL uses a segmented bridge and rail design over an independent cutting table, takes wider plate, and is listed at 1 G and 4,450 ipm (110 m/min).
03
At 12 kW the table gives 1.5 in (40 mm) for mild steel, stainless steel and aluminum. At 60 kW it gives 4 in (100 mm) for the same three, 0.8 in (20 mm) for copper and 1.2 in (30 mm) for brass.
04
Total length 653 in (16,600 mm), total width 220 in (5,580 mm), total height 100 in (2,550 mm). Weight is 30,865 lbs (13,900 kg) with standard equipment, without laser source, chiller and dust collector.
