Machitech Automation CNC Laser Cutting Machines

Machitech Fiber Prime S 6x12

Q: How much does the Machitech Fiber Prime S 6x12 cost?

The price estimate for the Machitech Fiber Prime S 6x12 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/machitech-fiber-prime-s-6x12#price; the request is passed to Machitech Automation or an authorised dealer.

Specs verified 2026-10-05 · machitech.com Updated 2026-10-05

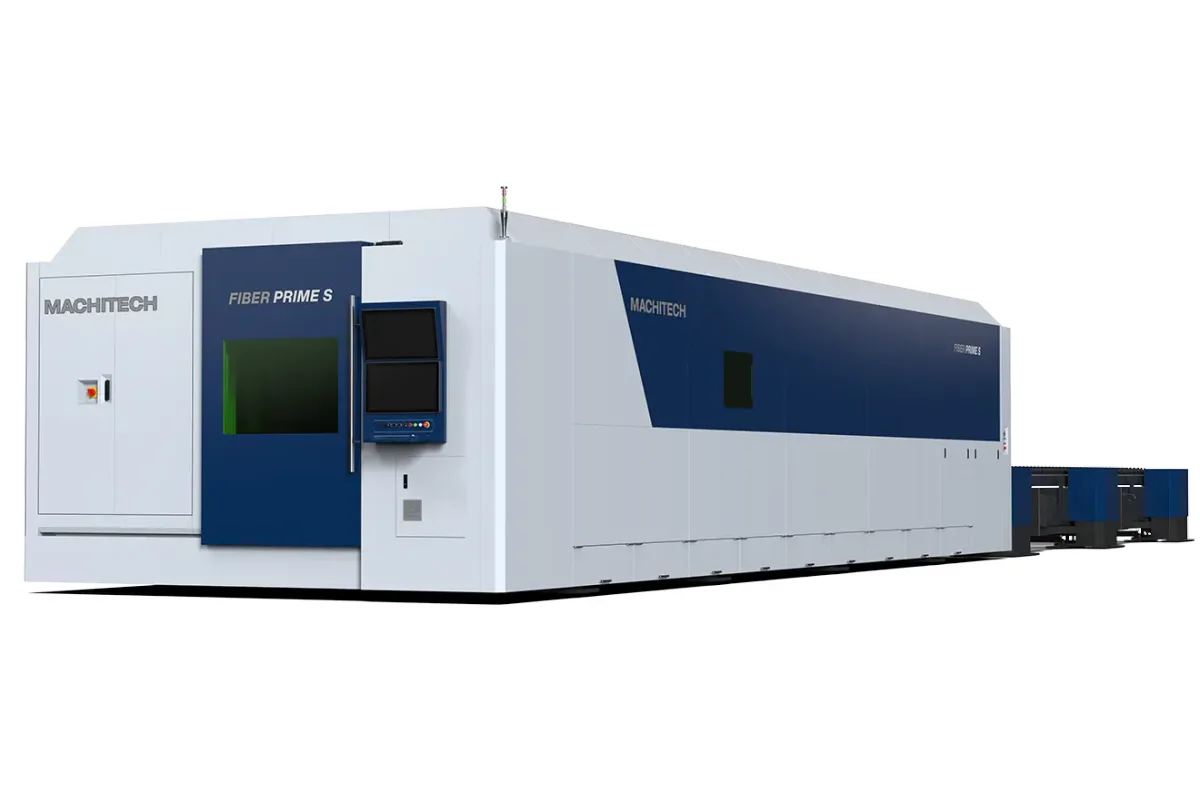

Machitech Fiber Prime S series fiber laser cutting machine

Image: machitech.com, Machitech Automation

Key Specifications

laser power

12 to 60 kW

sheet length

157 in (4,000 mm)

sheet width

78 in (2,000 mm)

acceleration

2.8 G

rapid speed

7,875 ipm (200 m/min)

workpiece weight

9,700 lbs (4,400 kg)

How much does the Machitech Fiber Prime S 6x12 cost?

Price estimate

Uncertain

We do not have a price for the Machitech Fiber Prime S 6x12 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Machitech Fiber Prime S 6x12 brings 12 to 60 kW of laser power to sheet 157 in (4,000 mm) long and 78 in (2,000 mm) wide. It is the second of four sizes and the first of the three that share one set of motion figures: 2.8 G of acceleration and a rapid speed of 7,875 ipm (200 m/min).

Against the Fiber Prime 6x12, which takes the same sheet, the difference is weight in every sense. This machine is rated for a workpiece of 9,700 lbs (4,400 kg) and weighs 35,250 lbs (16,000 kg) itself. The lighter Fiber Prime 6x12 carries 5,530 lbs (2,510 kg). The extra structure is there for thick plate: the reinforced frame is built to handle up to 4 in steel, and the shuttle tables lift hydraulically instead of by motor.

What a given source will cut is set out power by power. At 20 kW the table lists 2.35 in (60 mm) of mild steel and stainless and 2 in (50 mm) of aluminum. At 30 kW all three reach 2.75 in (70 mm), at 40 kW 3 in (80 mm), and at 60 kW 4 in (100 mm). Most buyers will choose the source for the thickness they cut every day and treat the maximum as reserve.

Gas is mixed at the head, which lets the control change the blend almost immediately between piercing and cutting. Focus compensation is automatic. Cutting, marking and beveling can run in a single operation. Floor space is 468 in (11,890 mm) by 138 in (3,520 mm), with a height of 105 in (2,680 mm).

Full Specifications

Parameter	Value
Laser Power	12 to 60 kW
Sheet Length	157 in (4,000 mm)
Sheet Width	78 in (2,000 mm)
Acceleration	2.8 G
Rapid Speed	7,875 ipm (200 m/min)
Workpiece Weight	9,700 lbs (4,400 kg)
Cutting Head	Precitec head made for the Fiber PRIME S
Shuttle Tables	Automated, hydraulic lifting
Nesting Software	Lantek Expert Cut
Max Thickness 12kw	At 12 kW: mild steel 1.5 in (40 mm); stainless steel 1.5 in (40 mm); aluminum 1.5 in (40 mm); copper 0.4 in (10 mm); brass 0.5 in (14 mm)
Max Thickness 20kw	At 20 kW: mild steel 2.35 in (60 mm); stainless steel 2.35 in (60 mm); aluminum 2 in (50 mm); copper 0.5 in (12 mm); brass 0.6 in (16 mm)
Max Thickness 30kw	At 30 kW: mild steel 2.75 in (70 mm); stainless steel 2.75 in (70 mm); aluminum 2.75 in (70 mm); copper 0.6 in (16 mm); brass 0.8 in (20 mm)
Max Thickness 40kw	At 40 kW: mild steel 3 in (80 mm); stainless steel 3 in (80 mm); aluminum 3 in (80 mm); copper 0.7 in (18 mm); brass 1 in (25 mm)
Max Thickness 60kw	At 60 kW: mild steel 4 in (100 mm); stainless steel 4 in (100 mm); aluminum 4 in (100 mm); copper 0.8 in (20 mm); brass 1.2 in (30 mm)
Machine Length	468 in (11,890 mm)
Machine Width	138 in (3,520 mm)
Machine Height	105 in (2,680 mm)
Machine Weight	35,250 lbs (16,000 kg), without laser source, chiller and dust collector
Install and Training	Included, on-site
Remote Support	Included, unlimited

Specifications sourced from machitech.com — verified 2026-10-05

Strengths & Limitations

Strengths

12 to 60 kW on a 157 in (4,000 mm) by 78 in (2,000 mm) sheet
Workpiece weight of 9,700 lbs (4,400 kg)
2.8 G and 7,875 ipm (200 m/min)
Integrated gas mixing and automatic focus compensation at the head
Cutting, marking and beveling in a single operation

Limitations

Slower than the Fiber Prime S 5x10, which is listed at 4 G
Machine weight of 35,250 lbs (16,000 kg) before source, chiller and dust collector
Thick-plate maxima need the larger sources; 12 kW stops at 1.5 in (40 mm)
Sheet width is 78 in (2,000 mm); wider plate needs the Fiber Prime S 8x20

Best For

Medium and thick plate in the wider sheet format Service centres cutting mixed thicknesses Replacing plasma on plate up to 4 in (100 mm) with a 60 kW source Laser bevelling for weld preparation

Frequently Asked Questions

01 How does the Fiber Prime S 6x12 differ from the Fiber Prime 6x12?

Both take sheet 157 in (4,000 mm) by 78 in (2,000 mm). The Fiber Prime S 6x12 offers 12 to 60 kW, 2.8 G, hydraulic shuttle tables and a workpiece weight of 9,700 lbs (4,400 kg). The Fiber Prime 6x12 offers 6 or 12 kW, 1.5 G and 5,530 lbs (2,510 kg).

02 What can a 20 kW or 30 kW source cut?

At 20 kW: mild steel and stainless steel 2.35 in (60 mm), aluminum 2 in (50 mm), copper 0.5 in (12 mm), brass 0.6 in (16 mm). At 30 kW: mild steel, stainless steel and aluminum 2.75 in (70 mm), copper 0.6 in (16 mm), brass 0.8 in (20 mm).

03 What are the speed and acceleration?

Rapid speed is 7,875 ipm (200 m/min) and acceleration 2.8 G. The same figures apply to the Fiber Prime S 8x20 and Fiber Prime S 8x24.

04 How big and heavy is the machine?

Total length 468 in (11,890 mm), total width 138 in (3,520 mm), total height 105 in (2,680 mm), and 35,250 lbs (16,000 kg) with standard equipment, excluding laser source, chiller and dust collector.
