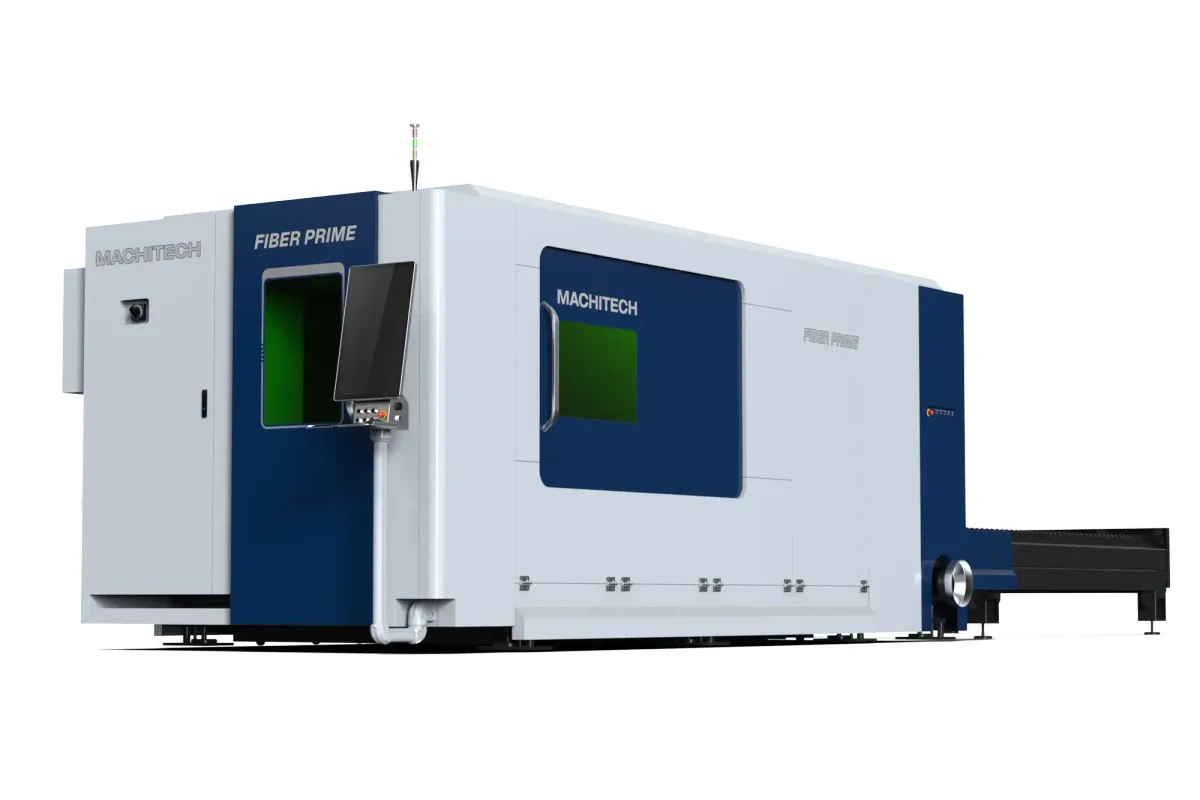

Machitech Fiber Prime 5x10
Image: machitech.com, Machitech Automation
Key Specifications
laser power
sheet length
sheet width
acceleration
rapid speed
workpiece weight
How much does the Machitech Fiber Prime 5x10 cost?
Price estimate
We do not have a price for the Machitech Fiber Prime 5x10 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Machitech Fiber Prime 5x10 is a compact fiber laser with automatic shuttle tables, built for sheet up to 122 in (3,100 mm) long and 63 in (1,600 mm) wide. It is offered with a 6 or 12 kW source and sits at the entry of Machitech's laser range, below the high-power Fiber Prime S.
Power decides what it cuts. With 6 kW the maker's table gives mild steel to 1 in (25 mm) and stainless steel to 0.75 in (20 mm). With 12 kW mild steel, stainless and aluminum all reach 1.5 in (40 mm). Copper and brass stay thin at either power, 0.25 in (6 mm) and 0.3 in (8 mm) at 6 kW. Those are maximum figures, and production thickness is normally well inside them.
Acceleration is 1.5 G and rapid speed 5,500 ipm (140 m/min). The cutting head is a Precitec ProCutter with motorized focus adjustment. Two motor driven shuttle tables exchange automatically, and a one-click startup runs material exchange, edge detection and cutting as one sequence. A side access door and built-in drawers give access to parts.
The table is rated for a workpiece weight of 3,480 lbs (1,580 kg), which Machitech gives for a 1 in steel plate. The machine is 360 in (9,180 mm) long including the shuttle, 89 in (2,270 mm) high, and weighs 15,430 lbs (7,000 kg) without laser source, chiller and dust collector. Nesting is done in Lantek Expert Cut, and the touchscreen controller supports remote management.
Full Specifications
| Parameter | Value |
|---|---|
| Laser Power | 6 or 12 kW |
| Sheet Length | 122 in (3,100 mm) |
| Sheet Width | 63 in (1,600 mm) |
| Acceleration | 1.5 G |
| Rapid Speed | 5,500 ipm (140 m/min) |
| Workpiece Weight | 3,480 lbs (1,580 kg) |
| Cutting Head | Precitec ProCutter |
| Shuttle Tables | Automatic, motor driven |
| Nesting Software | Lantek Expert Cut |
| Max Thickness 6kw | At 6 kW: mild steel 1 in (25 mm); stainless steel 0.75 in (20 mm); aluminum 0.75 in (20 mm); copper 0.25 in (6 mm); brass 0.3 in (8 mm) |
| Max Thickness 12kw | At 12 kW: mild steel 1.5 in (40 mm); stainless steel 1.5 in (40 mm); aluminum 1.5 in (40 mm); copper 0.4 in (10 mm); brass 0.5 in (14 mm) |
| Machine Length | 360 in (9,180 mm) |
| Machine Width | 89 in (2,270 mm) |
| Machine Height | 89 in (2,270 mm) |
| Machine Weight | 15,430 lbs (7,000 kg), without laser source, chiller and dust collector |
| Install and Training | Included, on-site |
| Remote Support | Included, unlimited |
Specifications sourced from machitech.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Automatic motor driven shuttle tables with one-click processing start-up
- 12 kW option cuts mild steel, stainless steel and aluminum to 1.5 in (40 mm)
- Rapid speed of 5,500 ipm (140 m/min) at 1.5 G
- Precitec ProCutter head with motorized focus adjustment
- Integrated electrical and drive panel keeps the footprint compact
Limitations
- Source choice stops at 12 kW
- Acceleration of 1.5 G, against 4 G on the Fiber Prime S 5x10
- No bevel cutting: the feature list covers cutting and marking only
- Laser source, chiller and dust collector add to the 15,430 lbs (7,000 kg) machine weight
Best For
Frequently Asked Questions
01
With the 6 kW source: mild steel 1 in (25 mm), stainless steel 0.75 in (20 mm), aluminum 0.75 in (20 mm), copper 0.25 in (6 mm) and brass 0.3 in (8 mm). With 12 kW: mild steel, stainless steel and aluminum 1.5 in (40 mm), copper 0.4 in (10 mm) and brass 0.5 in (14 mm).
02
Sheet length is 122 in (3,100 mm) and sheet width 63 in (1,600 mm). Workpiece weight is 3,480 lbs (1,580 kg), a figure Machitech gives for a 1 in steel plate.
03
The sheet size is the same. The Fiber Prime S 5x10 is the high-power machine, with sources of 12 to 60 kW, 4 G of acceleration and hydraulic shuttle tables. The Fiber Prime is offered with 6 or 12 kW and accelerates at 1.5 G.
04
Total length is 360 in (9,180 mm), total width 89 in (2,270 mm) and total height 89 in (2,270 mm). Weight is 15,430 lbs (7,000 kg) with standard equipment, not including the laser source, chiller and dust collector.
