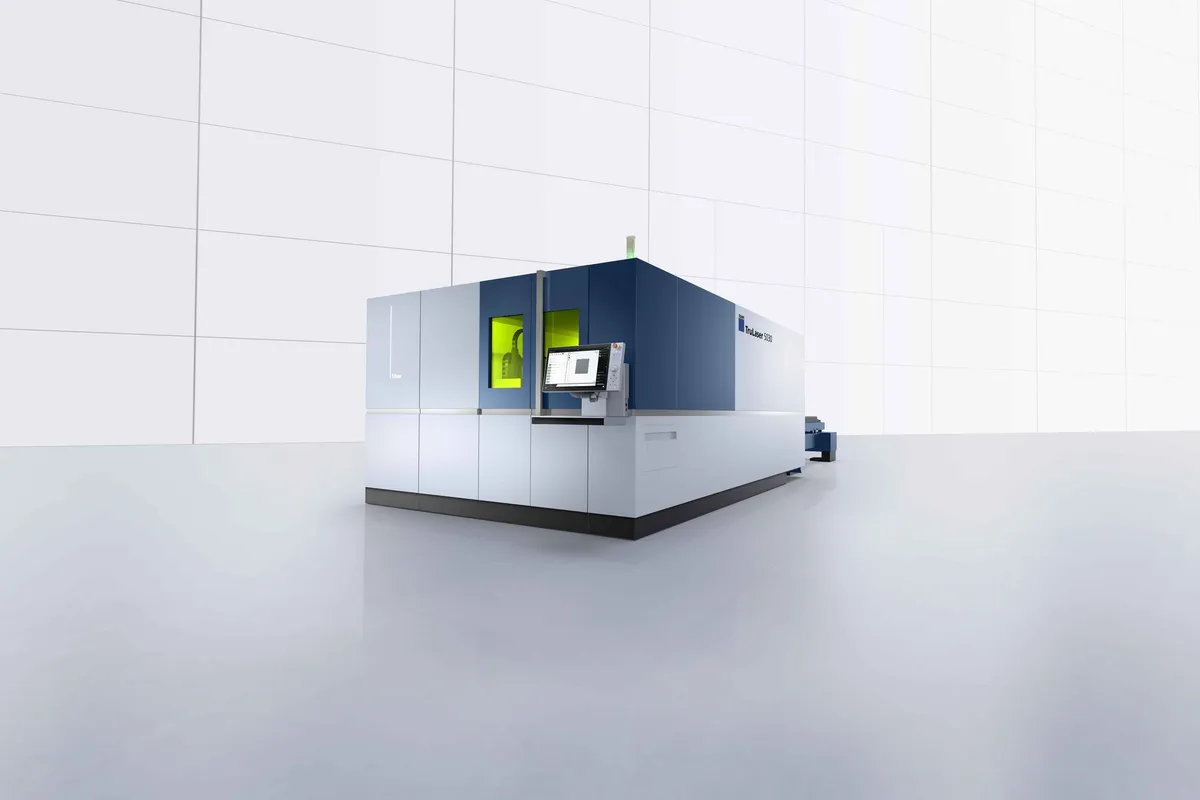

TRUMPF TruLaser 5060 fiber

Est. $1,200,000 - $2,200,000+ Specs verified 2026-10-03 · trumpf.com Updated 2026-10-03

Image: trumpf.com, TRUMPF

Key Specifications

X Travel

6,000 mm (236 in)

Y Travel

2,000 mm (78.7 in)

max sheet thickness mild steel

25 / 30 / 30 / 40 mm (0.98 / 1.18 / 1.18 / 1.57 in) with TruFiber 6001 / 9001 / 12001 / 24001

max sheet thickness aluminum

25 / 30 / 30 / 40 mm (0.98 / 1.18 / 1.18 / 1.57 in) with TruFiber 6001 / 9001 / 12001 / 24001

max sheet weight

3,000 kg

machine weight

18,500 kg (40,785 lb)

How much does the TRUMPF TruLaser 5060 fiber cost?

Estimated price range

Est.$1,200,000 - $2,200,000+

Our best estimate for a cnc laser cutting machine in this class — not a quote from TRUMPF. Configuration moves it a long way.

Overview

The TRUMPF TruLaser 5060 fiber is the long-bed machine of its series, with 6,000 mm (236 in) of X travel and 2,000 mm (78.7 in) of Y. That is the 6 x 2 m sheet Trumpf names for the series. It positions at up to 280 m/min and takes a TruFiber laser of 6, 9, 12 or 24 kW.

Note the width before anything else. The TruLaser 1060 and the TruLaser 3060 have the same X travel with 2,500 mm (98.4 in) of Y, so a shop that buys 2,500 mm wide plate cannot move that stock onto the TruLaser 5060. What this machine offers in exchange is speed between cuts: 280 m/min, against 170 m/min on the TruLaser 3060 and 140 m/min on the TruLaser 1060. Across a bed 6,000 mm long, where the head can travel a long way from one part to the next, that difference is felt more than on a short bed.

For plate, stainless is the generous row of the thickness table: 40 mm (1.57 in) with any laser from the TruFiber 9001 up, and 25 mm (0.98 in) with the 6001. Mild steel and aluminum need the TruFiber 24001 to reach 40 mm (1.57 in); the 9001 and 12001 stop at 30 mm (1.18 in) and the 6001 at 25 mm (0.98 in). Copper is listed to 16 mm (0.63 in) and brass to 12.7 mm (0.50 in) from the 9001 up, both 10 mm (0.39 in) with the 6001. For the 24 kW laser Trumpf claims cutting up to three times faster, helped by Active Speed Control, without stating the reference.

The machine weighs 18,500 kg (40,785 lb) and occupies 15,500 × 6,373 × 2,200 mm (610 × 251 × 86.6 in). The 6,373 mm width is the figure also listed for the TruLaser 5040, which is 11,200 mm long, so the longer bed adds length to the installation and no width.

Full Specifications

Parameter	Value
Max Sheet Thickness Mild Steel	25 / 30 / 30 / 40 mm (0.98 / 1.18 / 1.18 / 1.57 in) with TruFiber 6001 / 9001 / 12001 / 24001
Max Sheet Thickness Aluminum	25 / 30 / 30 / 40 mm (0.98 / 1.18 / 1.18 / 1.57 in) with TruFiber 6001 / 9001 / 12001 / 24001
Max Sheet Weight	3,000 kg
Machine Weight	18,500 kg (40,785 lb)
Maximum Laser Power and Minimal Rejects	With 24 kW, the TruFiber 24001 cuts up to three times faster and is particularly reliable thanks to Active Speed Control
Cut Oversized Sheets	Quickly and easily machine sheet metal measuring 6 x 2 m.
Max Positioning Speed	280 m/min
X-Axis Travel	6,000 mm (236 in)
Y-Axis Travel	2,000 mm (78.7 in)
Max Workpiece Weight	2,900 kg (6,393 lb)
Laser Power Options	6 / 9 / 12 / 24 kW with TruFiber 6001 / 9001 / 12001 / 24001
Max Sheet Thickness Stainless Steel	25 / 40 / 40 / 40 mm (0.98 / 1.57 / 1.57 / 1.57 in) with TruFiber 6001 / 9001 / 12001 / 24001
Max Sheet Thickness Copper	10 / 16 / 16 / 16 mm (0.39 / 0.63 / 0.63 / 0.63 in) with TruFiber 6001 / 9001 / 12001 / 24001
Max Sheet Thickness Brass	10 / 12.7 / 12.7 / 12.7 mm (0.39 / 0.50 / 0.50 / 0.50 in) with TruFiber 6001 / 9001 / 12001 / 24001
Floor Space Required	15,500 × 6,373 × 2,200 mm (610 × 251 × 86.6 in)

Specifications sourced from trumpf.com — verified 2026-10-03

Strengths & Limitations

Strengths

280 m/min maximum positioning speed on 6,000 mm (236 in) of X travel
TruFiber lasers of 6, 9, 12 or 24 kW
Stainless steel up to 40 mm (1.57 in) with the TruFiber 9001, 12001 or 24001
Mild steel and aluminum up to 40 mm (1.57 in) with the TruFiber 24001
At 18,500 kg (40,785 lb), lighter than the TruLaser 3060 at 19,800 kg (43,651 lb)

Limitations

Y travel is 2,000 mm (78.7 in); the TruLaser 1060 and TruLaser 3060 offer 2,500 mm (98.4 in) on the same X
No laser below the 6 kW TruFiber 6001 is listed
The TruFiber 12001 has the same thickness limits as the 9001 in every listed material
Needs a floor area of 15,500 × 6,373 mm (610 × 251 in)

Best For

Sheet of 6 x 2 m, the format Trumpf names for this machine Large nests of small and medium parts, where 280 m/min shortens travel across a long bed Long parts up to 6,000 mm (236 in) cut in one piece Thick plate up to 40 mm (1.57 in) with the TruFiber 24001

Frequently Asked Questions

01 What sheet format does the TruLaser 5060 fiber cut?

Travel is 6,000 mm (236 in) in X and 2,000 mm (78.7 in) in Y, which matches the 6 x 2 m sheet Trumpf mentions for the series. Plate that is 2,500 mm wide does not fit; the TruLaser 3060 and the TruLaser 1060 have 2,500 mm (98.4 in) of Y travel for that.

02 How does the TruLaser 5060 fiber compare with the TruLaser 3060?

The TruLaser 5060 positions at 280 m/min, has 2,000 mm (78.7 in) of Y and weighs 18,500 kg (40,785 lb). The TruLaser 3060 positions at 170 m/min, has 2,500 mm (98.4 in) of Y and weighs 19,800 kg (43,651 lb). The TruLaser 3060 is also listed with the smaller TruFiber 4000, while the TruLaser 5060 starts at the TruFiber 6001.

03 What thickness can the TruLaser 5060 fiber cut with the 24 kW laser?

With the TruFiber 24001 the limits are 40 mm (1.57 in) in mild steel, stainless steel and aluminum, 16 mm (0.63 in) in copper and 12.7 mm (0.50 in) in brass. Compared with the TruFiber 12001 that is a gain only in mild steel and aluminum, which are listed at 30 mm (1.18 in) with the smaller laser.

04 How big and heavy is the TruLaser 5060 fiber?

The footprint is 15,500 × 6,373 mm (610 × 251 in), the height 2,200 mm (86.6 in) and the weight 18,500 kg (40,785 lb). Handling 6,000 mm sheet to and from the bed needs its own space next to the machine, which is not part of those figures.

05 What is Active Speed Control on the TruLaser 5060 fiber?

Trumpf names Active Speed Control together with the 24 kW TruFiber 24001 and says it makes that laser particularly reliable, with fewer rejects. The table gives no further detail on how it works or whether it is available with the smaller lasers, so ask Trumpf which laser options include it.
