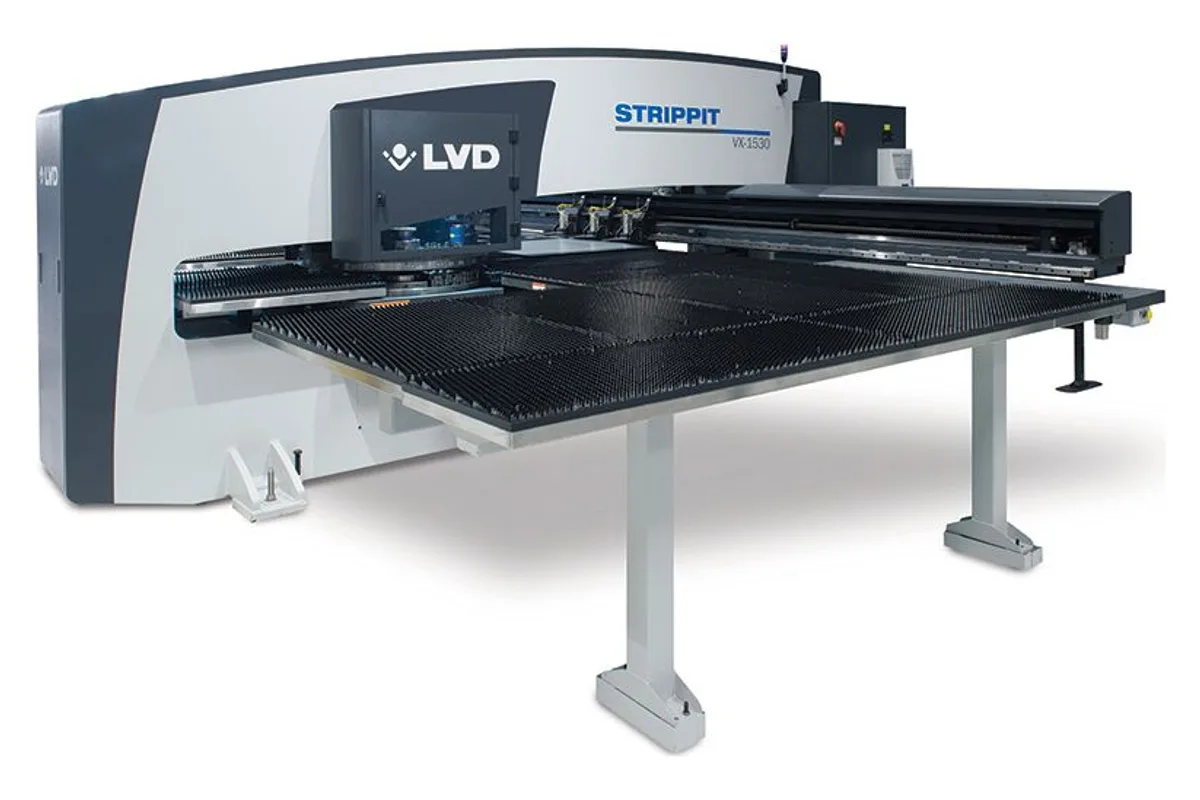

LVD Strippit VX 1530 CNC Turret Punch Press

$250,000 – $400,000 Updated 2026-03-17

Key Specifications

Punching Force

300 kN (33 tons)

Sheet Size Capacity

1,500 x 3,000 mm (59 x 118 in)

Number of Tool Stations

30 stations (multitool: 50+ effective tools)

Repositioning Speed

Up to 100 m/min

Punching Speed

Up to 750 strokes/min

Control System

Siemens-based CNC with LVD CADMAN-P software

Overview

The LVD Strippit VX 1530 is a servo-electric CNC turret punch press engineered for high-throughput sheet metal punching with workpiece capacities up to 1,500 x 3,000 mm. As a flagship model in LVD's Strippit VX series, the VX 1530 targets medium and large fabrication operations, enclosure manufacturers, and automotive sheet metal suppliers requiring a combination of speed, flexibility, and forming capability from a single CNC punching platform.

The servo-electric punch drive at the heart of the VX 1530 delivers up to 300 kN (33 tons) of punching force with full programmable control over stroke depth, speed, and force profile. This capability allows the machine to execute precision partial punches for embossing, controlled-depth forming, and tapping extrusions at the same station as full punch-through operations — all within a single CNC program. The electric drive also contributes to LVD's Energy-Efficient Manufacturing (EEM) designation, consuming up to 50% less energy than comparable hydraulic punch presses at equivalent production rates.

The VX 1530 carries a 30-station turret with support for multitool holders, effectively expanding the practical tool count to over 50 unique tool configurations without turret indexing delays. LVD's Intelligent Tool Management system tracks tool usage, wear, and positioning automatically, alerting operators before tool degradation affects part quality. The turret accommodates all standard Strippit tooling families as well as third-party Thick Turret and Thin Turret format tools, protecting tooling investment when upgrading from older machines.

LVD's CADMAN-P offline programming software integrates natively with the VX 1530's Siemens-based CNC, enabling drag-and-drop nesting, automatic punch sequence optimization for minimal sheet travel, and part program simulation before the first sheet enters the machine. An optional BACA (Bend Allowance Calculation Automation) module extends programming to downstream press brake operations, supporting a connected sheet metal cell workflow from a single software environment.

Full Specifications

Parameter	Value
Punching Force	300 kN (33 tons)
Sheet Size Capacity	1,500 x 3,000 mm (59 x 118 in)
Number Of Tool Stations	30 stations (multitool: 50+ effective tools)
Repositioning Speed	Up to 100 m/min
Punching Speed	Up to 750 strokes/min
Control System	Siemens-based CNC with LVD CADMAN-P software
Throat Depth	1,500 mm
Machine Weight	Approx. 7,200 kg (15,870 lb)

Strengths & Limitations

Strengths

Servo-electric drive saves up to 50% energy vs. hydraulic punch presses at equivalent output
30-station turret with multitool support provides 50+ effective tool configurations
Programmable stroke depth enables precision forming, embossing, and tapping in one program
CADMAN-P software integrates nesting and punch sequence optimization for fast job setup

Limitations

Higher upfront cost than entry-level turret punch presses
Large footprint of 1,500 x 3,000 mm capacity machine requires significant floor space allocation
CADMAN-P software license adds to total cost of ownership for shops needing multiple programming seats

Best For

Medium and large fabrication shops running high-mix sheet metal enclosures and panels Automotive sheet metal suppliers needing high-volume punching with forming capability Operations prioritizing energy efficiency and running multi-shift production schedules

Frequently Asked Questions

01 What is the maximum material thickness the VX 1530 can punch?

The VX 1530 punches mild steel up to 6.35 mm, stainless steel to 4 mm, and aluminum to 8 mm at rated force. Actual maximum thickness depends on hole size, tool sharpness, and material grade.

02 Can the VX 1530 be connected to automated sheet loading and unloading systems?

Yes. LVD offers full Tower automation systems (sheet storage towers with automatic loading/unloading) that integrate directly with the VX 1530 for lights-out punching operation. These systems are designed as modular add-ons to the standard machine.

03 Is the VX 1530 compatible with standard Strippit tooling from older machines?

Yes. The VX 1530 accepts Strippit Thick Turret and Thin Turret format tooling, which means tooling investments from existing Strippit punch presses can be transferred directly to the VX 1530 without new tooling purchases.
