Amada AE-NT 2510
Key Specifications
Accuracy
press capacity
turret stations
machine frame
axis travel distance
machine length
How much does the Amada AE-NT 2510 cost?
Estimated price range
Our best estimate for a cnc punch presse in this class — not a quote from Amada. Configuration moves it a long way.
Overview
The Amada AE-NT 2510 is a bridge-frame turret punch press with 2500 x 1270 mm of axis travel, a 200 kN press capacity and 45 turret stations. The long axis is what separates it from the AE 255 NT, which carries the same press and turret on 1270 x 1270 mm of travel.
A 2500 mm stroke means a full-length sheet is worked without releasing the clamps. Holes at opposite ends of a long panel are then placed within the same ± 0.1 mm positioning accuracy, not across a regrip. That matters for cabinet sides, doors and other long parts whose hole patterns have to line up at assembly.
Space is what the longer axis asks for. Width grows to 5120 mm, double the 2560 mm of the AE 255 NT, while length is 4155 mm and height 2115 mm. Weight is 12500 kg against 12000 kg for the AE 255 NT, so the longer travel adds little mass. Amada's table for this model stops at press capacity, travel, accuracy, turret size, dimensions and weight. Hit rate, sheet thickness limits and the control are not listed there and belong in the quotation.
Full Specifications
| Parameter | Value |
|---|---|
| Press Capacity | 200 kN |
| Positioning Accuracy | ± 0.1 mm |
| Turret Stations | 45 |
| Machine Frame | Bridge frame |
| Axis Travel Distance | 2500 x 1270 mm |
| Machine Length | 4155 mm |
| Machine Width | 5120 mm |
| Machine Height | 2115 mm |
| Machine Weight | 12500 kg |
Specifications sourced from amada.eu — verified 2026-10-03
Strengths & Limitations
Strengths
- 2500 x 1270 mm axis travel covers a full-length sheet in one clamping
- 45 turret stations keep a wide tool set loaded between jobs
- ± 0.1 mm positioning accuracy on a bridge frame
- Weighs 12500 kg, close to the 12000 kg of the AE 255 NT despite roughly twice the long-axis travel
Limitations
- 5120 mm wide, so it needs twice the width of the 2560 mm AE 255 NT
- Press capacity is 200 kN; the EM 3612 ZRTe is rated 300 kN for heavier hits
- No hit rate, sheet thickness or control data in Amada's table for this model
Best For
Frequently Asked Questions
01
2500 x 1270 mm. A sheet inside that range is punched without repositioning, and Amada states a positioning accuracy of ± 0.1 mm. A sheet longer than 2500 mm would need a reposition.
02
They share a 200 kN press capacity, 45 turret stations and a bridge frame, so the decision comes down to sheet length and floor space. The AE-NT 2510 travels 2500 x 1270 mm and is 5120 mm wide. The AE 255 NT travels 1270 x 1270 mm and is 2560 mm wide. Pick by the longest sheet you want to punch in one clamping.
03
4155 mm long, 5120 mm wide and 2115 mm high, with a machine weight of 12500 kg. Plan space beyond those figures for loading sheets and removing parts, and confirm the floor rating before the machine arrives.
Videos
Amada UK LTD
AMADA AMERICA, INC.
More from Amada
Other CNC Punch Presses

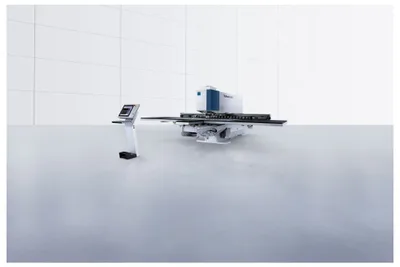

TRUMPF TruPunch 3000 CNC Punch Press
Peddinghaus FAB-MASTER 8
LVD Strippit PX-1530

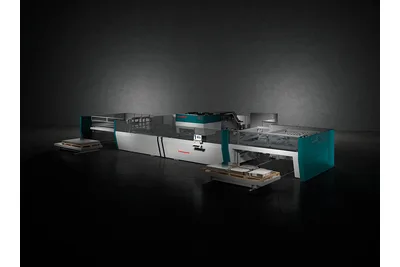

Salvagnini S4-30
