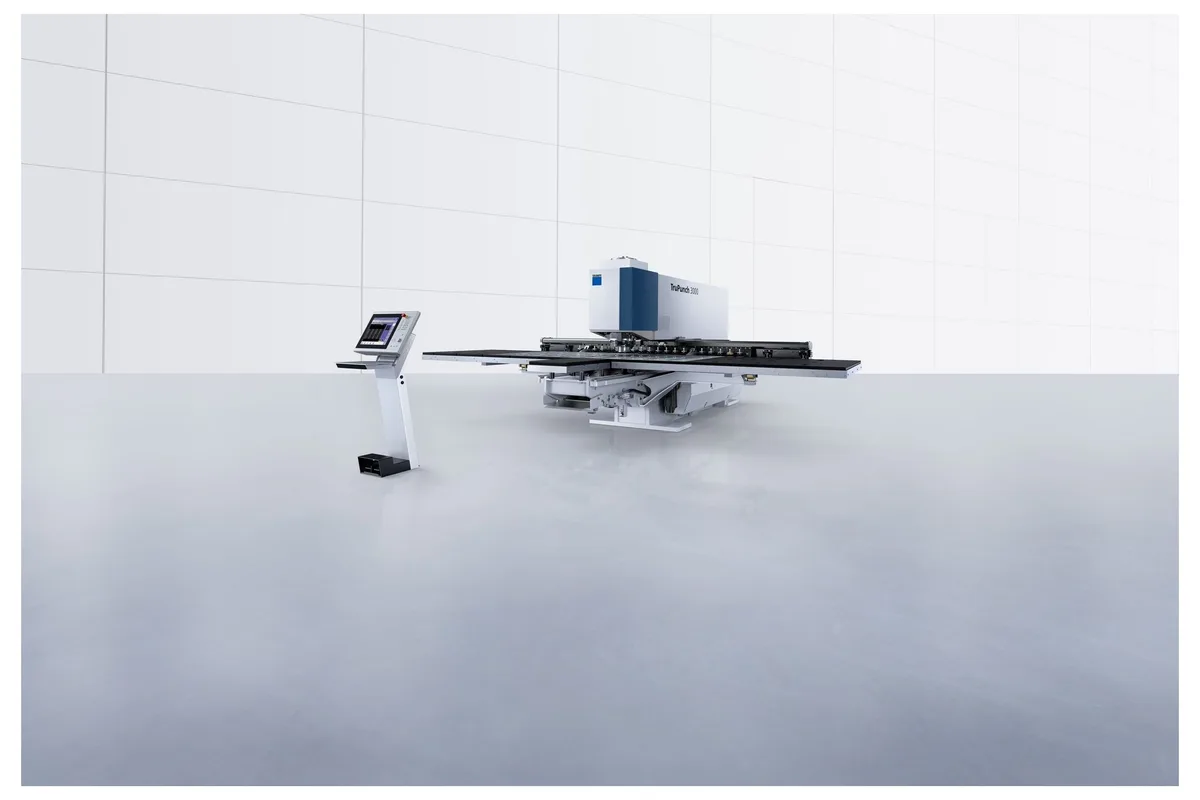

TRUMPF TruPunch 3000 CNC Punch Press

$400,000 – $700,000 Updated 2026-03-17

Key Specifications

Punching Force

20 ton (200 kN)

Sheet Size

Up to 1500x3000 mm (Formats X)

Sheet Thickness

0.5 – 6.4 mm mild steel

Tool Stations

45 (multi-purpose tool system)

Ram Drive

Servo-electric (no hydraulic oil)

Stroke Rate

Up to 900 strokes/min

Overview

The TRUMPF TruPunch 3000 is a servo-electric CNC punching machine from TRUMPF, the German market leader in sheet metal processing machinery. The TruPunch 3000 processes sheet sizes up to 1500x3000 mm and offers 20 tons of punching force with a 45-station tool changer, enabling complex multi-tool programs including punching, forming, tapping, marking, and thread forming without manual tool changes. TRUMPF's servo-electric drive delivers precise ram positioning for high-quality form tools and shallow draws, while consuming significantly less energy than hydraulic punch presses of equivalent tonnage. The TruPunch 3000 integrates with TRUMPF's TruTops Boost software for part programming, nesting, and production planning, connecting to TRUMPF's SheetMaster material handling automation system for lights-out sheet loading and sorting. The machine features a multi-purpose tool system (MultiPunch) that accepts multiple small punches in one tool holder, maximizing the number of tool geometries available in a single setup. TRUMPF's global service network ensures rapid support in any industrial market.

Full Specifications

Parameter	Value
Punching Force	20 ton (200 kN)
Sheet Size	Up to 1500x3000 mm (Formats X)
Sheet Thickness	0.5 – 6.4 mm mild steel
Tool Stations	45 (multi-purpose tool system)
Ram Drive	Servo-electric (no hydraulic oil)
Stroke Rate	Up to 900 strokes/min
Repositioning Speed	120 m/min
Nibbling Speed	Up to 400 parts/min
Control	TRUMPF TruTops Boost + CNC 8000
Automation	SheetMaster automation compatible
Manufacturer	Trumpf
Model	TruLaser 5030
Cutting Thickness	25 mm

Specifications sourced from machinio.com — verified 2026-03-28

Strengths & Limitations

Strengths

Servo-electric drive: no hydraulic oil, lower energy consumption, precise ram control
45-station tool changer handles complex multi-tool programs without operator intervention
TruTops Boost integration enables full digital production workflow from design to sorting
SheetMaster automation enables lights-out sheet loading and part sorting
TRUMPF global service network provides rapid response in any market

Limitations

High capital cost compared to hydraulic punch presses of equivalent capacity
TruTops Boost requires TRUMPF ecosystem — integration with non-TRUMPF machinery is limited
45-station capacity smaller than premium combiners or laser-punch machines
Servo-electric drive has power limitations at very high form tool forces

Best For

Sheet metal job shops processing medium-volume complex parts with frequent changeovers Enclosure and cabinet manufacturers punching louvers, knockouts, and mounting holes HVAC manufacturers punching brackets, flanges, and ductwork components Electronics enclosure producers running high-variety, medium-volume programs

Frequently Asked Questions

01 What is the multi-purpose tool (MultiPunch) system?

TRUMPF's MultiPunch tool holder accepts multiple small-diameter punches in a single tool station. A pneumatic indexer selects the active punch within the holder, effectively multiplying the number of available tool geometries beyond the 45 physical stations.

02 Does the TruPunch 3000 handle forming and tapping?

Yes. The servo-electric drive provides precise ram control for shallow draws, embossing, and card lance forming. Tapping units can be installed for direct tapping in sheet without secondary operations.

03 Can the TruPunch 3000 be connected to automated material handling?

Yes. TRUMPF's SheetMaster system loads sheet from a tower magazine, handles the sheet during punching, and sorts finished parts and skeletons automatically after processing, enabling unmanned operation.
